Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Communication >> Symptom: *NO RESPONSE FROM PCM (PCI BUS) - NGC >> Testing

Symptom: *NO RESPONSE FROM PCM (PCI BUS) - NGC: Testing

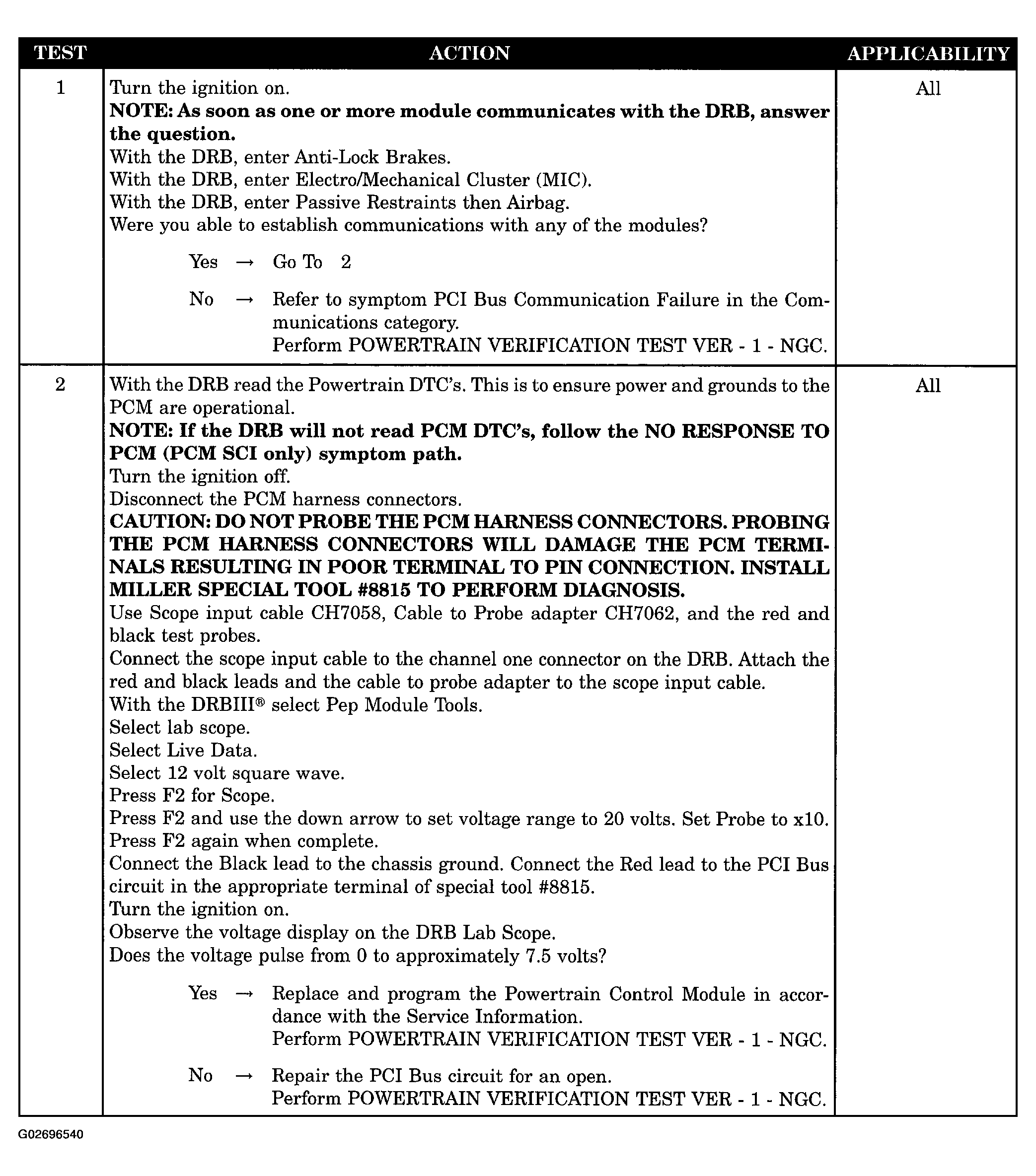

Fig 1: Testing No Response From PCM (PCI BUS) - NGC

G02696540

Courtesy of DAIMLERCHRYSLER CORP.
