Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Communication >> Symptom: *NO RESPONSE FROM ECM (PCI BUS) - DIESEL ONLY >> Testing

Symptom: *NO RESPONSE FROM ECM (PCI BUS) - DIESEL ONLY: Testing

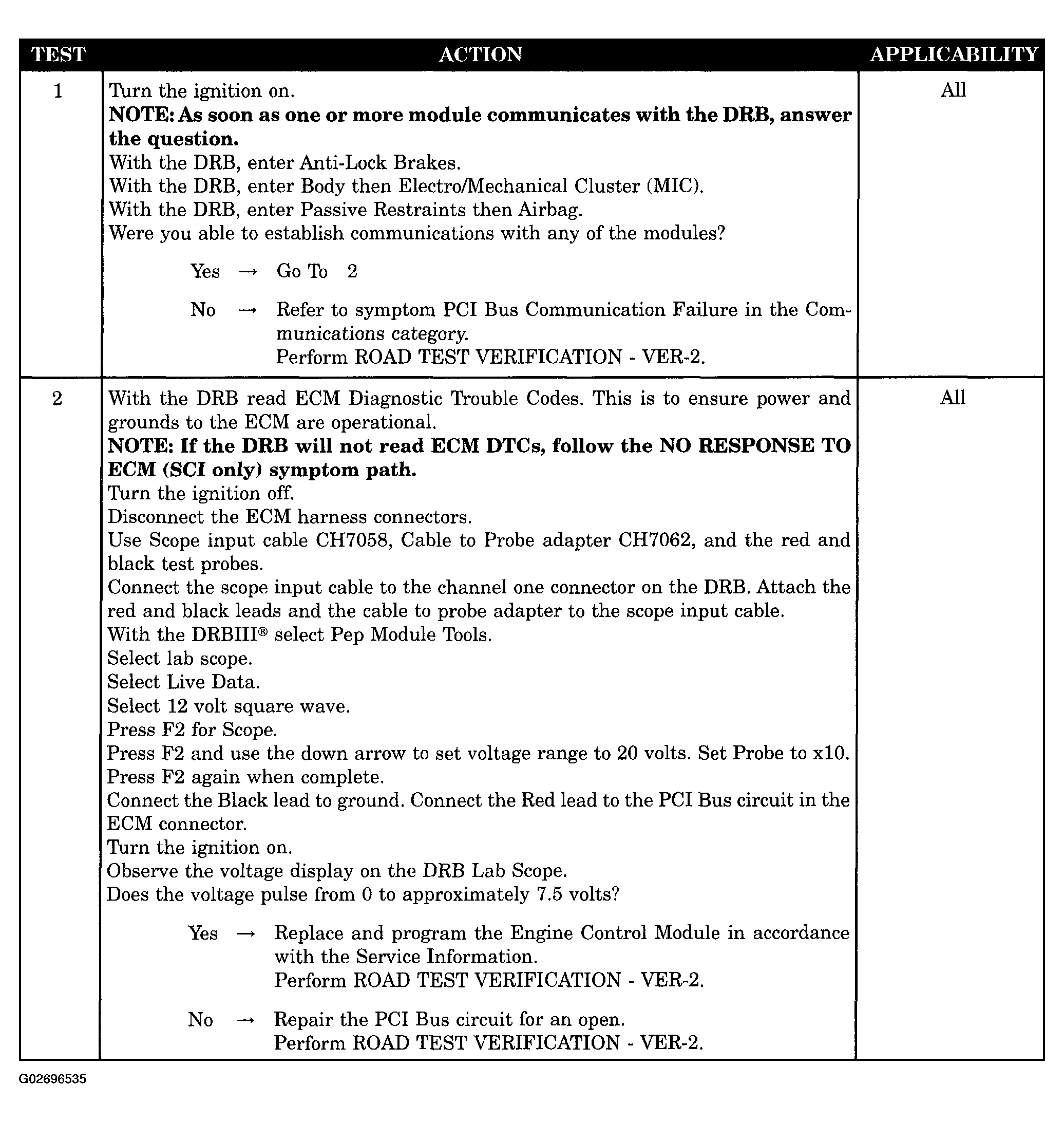

Fig 1: Testing No Response From ECM (PCI BUS) Diesel Only

G02696535

Courtesy of DAIMLERCHRYSLER CORP.
