Radio Noise Suppression Capacitor

  1. Disconnect and isolate the battery negative cable.
  2. Disconnect electrical harness connector from capacitor (Fig 1 ).

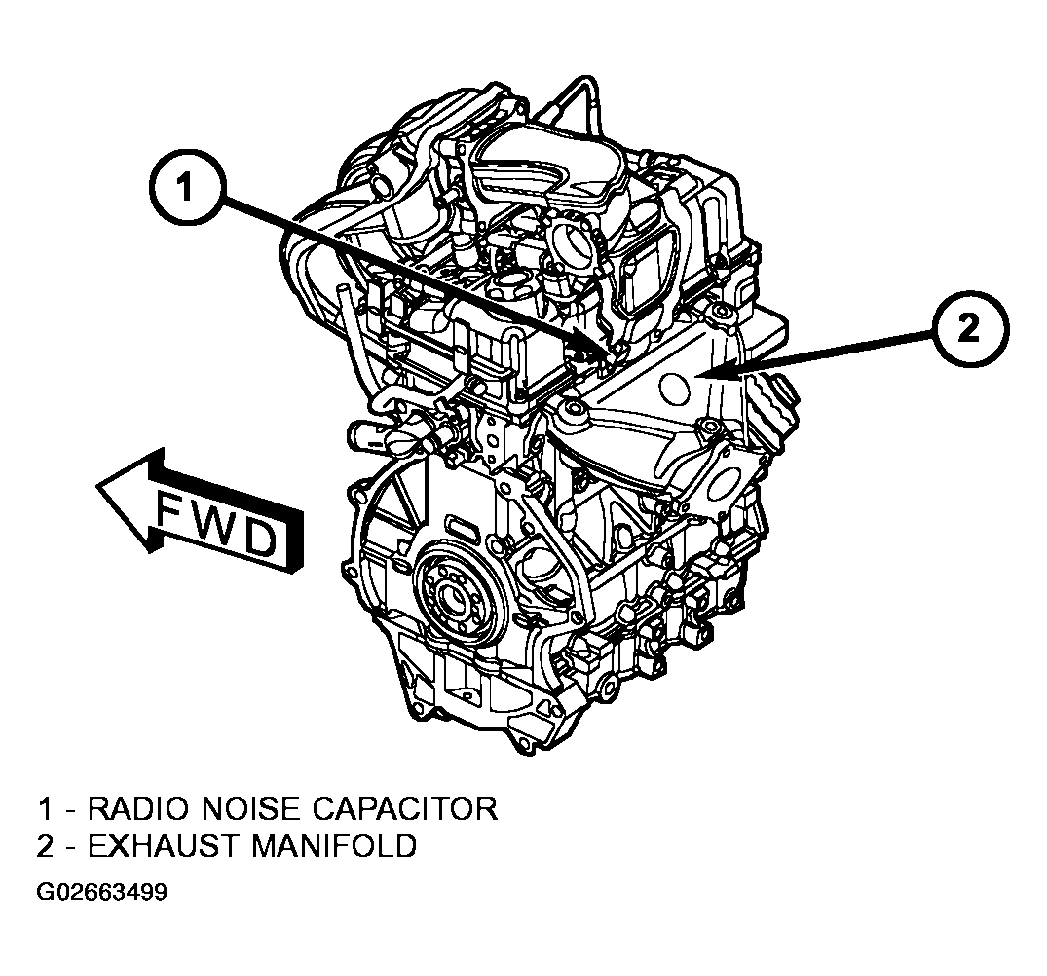

    Fig 1: Disconnecting Electrical Harness Connector From Capacitor
    G02663499Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove bolt from capacitor and remove capacitor.
