Symptom: *DRIVER DOOR FAILS TO LOCK: Testing

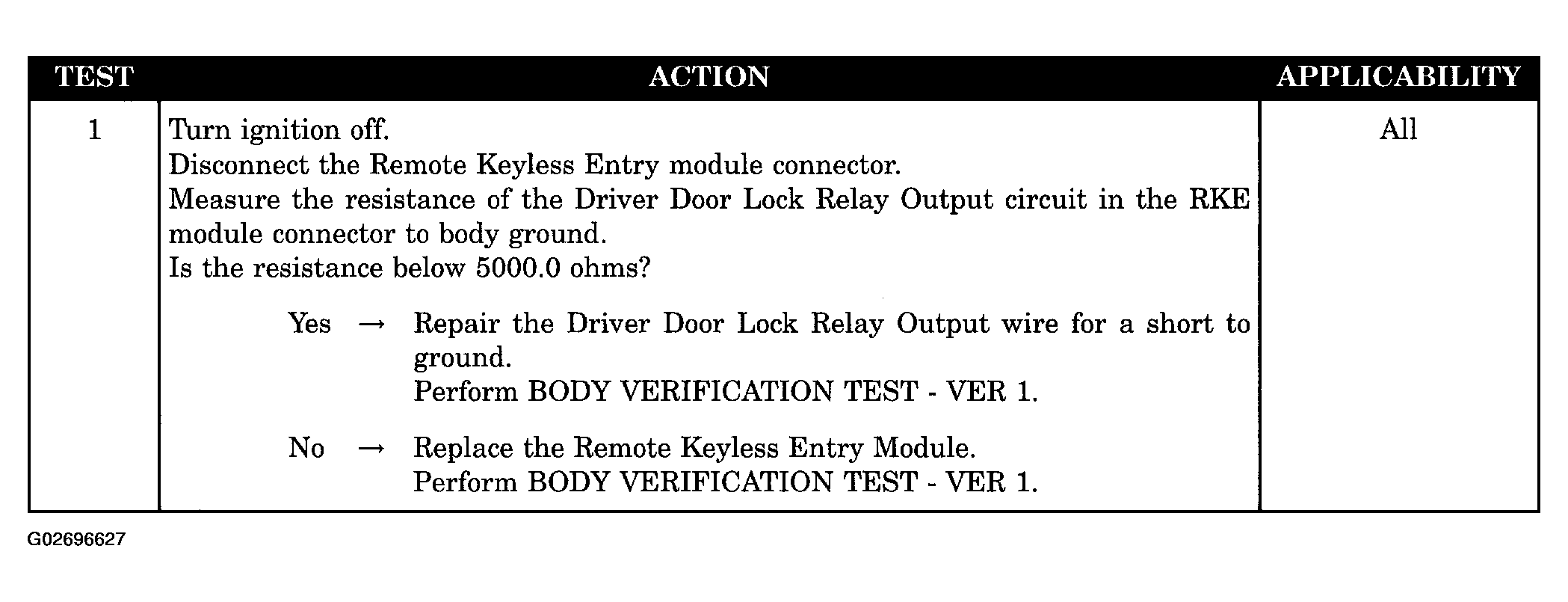

Fig 1: Testing Driver Door Fails To Lock

G02696627

Courtesy of DAIMLERCHRYSLER CORP.
