Symptom: *DRIVER DOOR FAILS TO LOCK AND UNLOCK: Testing

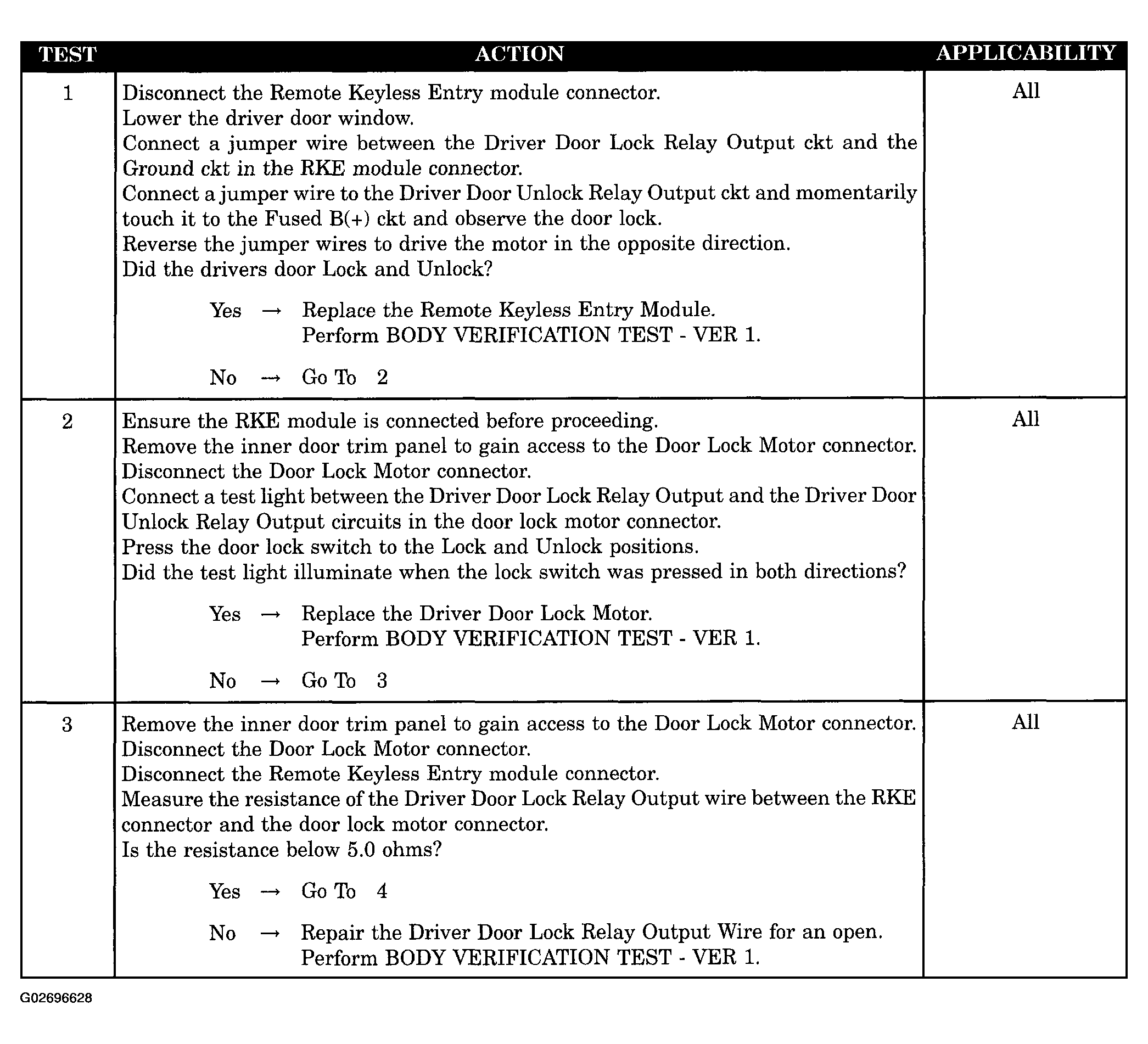

Fig 1: Testing Driver Door Fails To Lock And Unlock (1 Of 2)
G02696628Courtesy of DAIMLERCHRYSLER CORP.

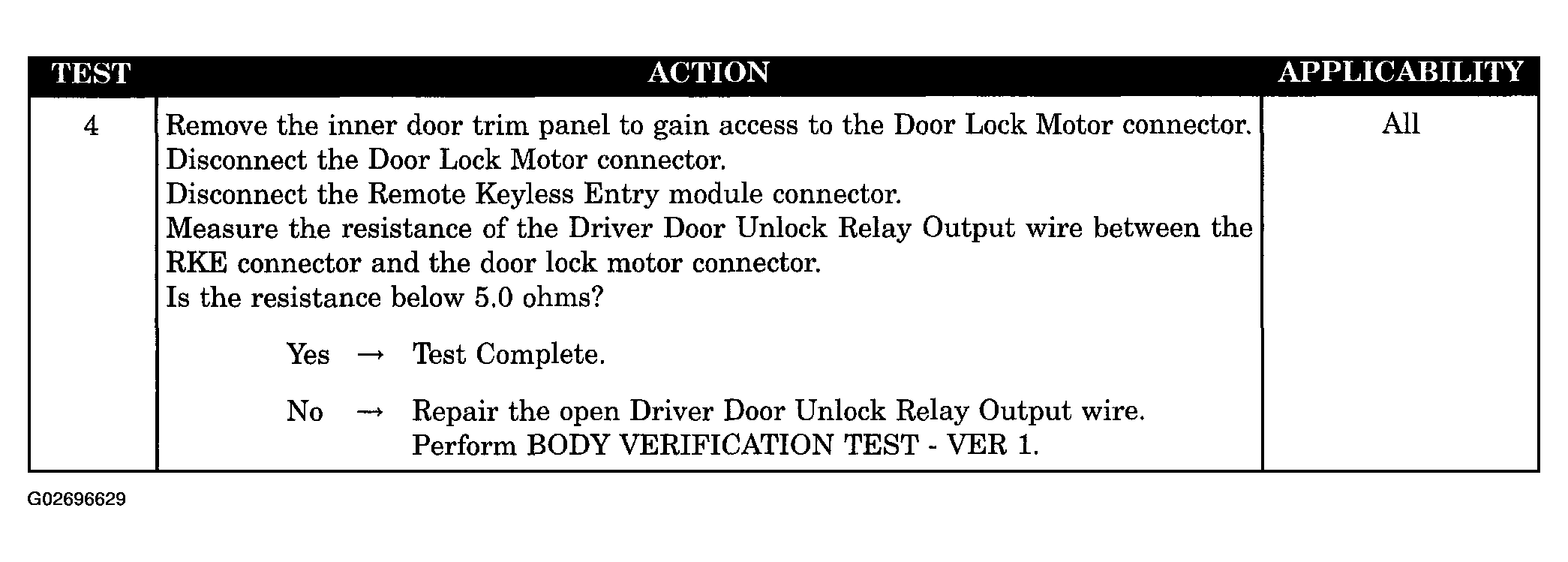

Fig 2: Testing Driver Door Fails To Lock And Unlock (2 Of 2)
G02696629Courtesy of DAIMLERCHRYSLER CORP.
