Symptom: DRIVER SQUIB 1 CIRCUIT OPEN: Testing

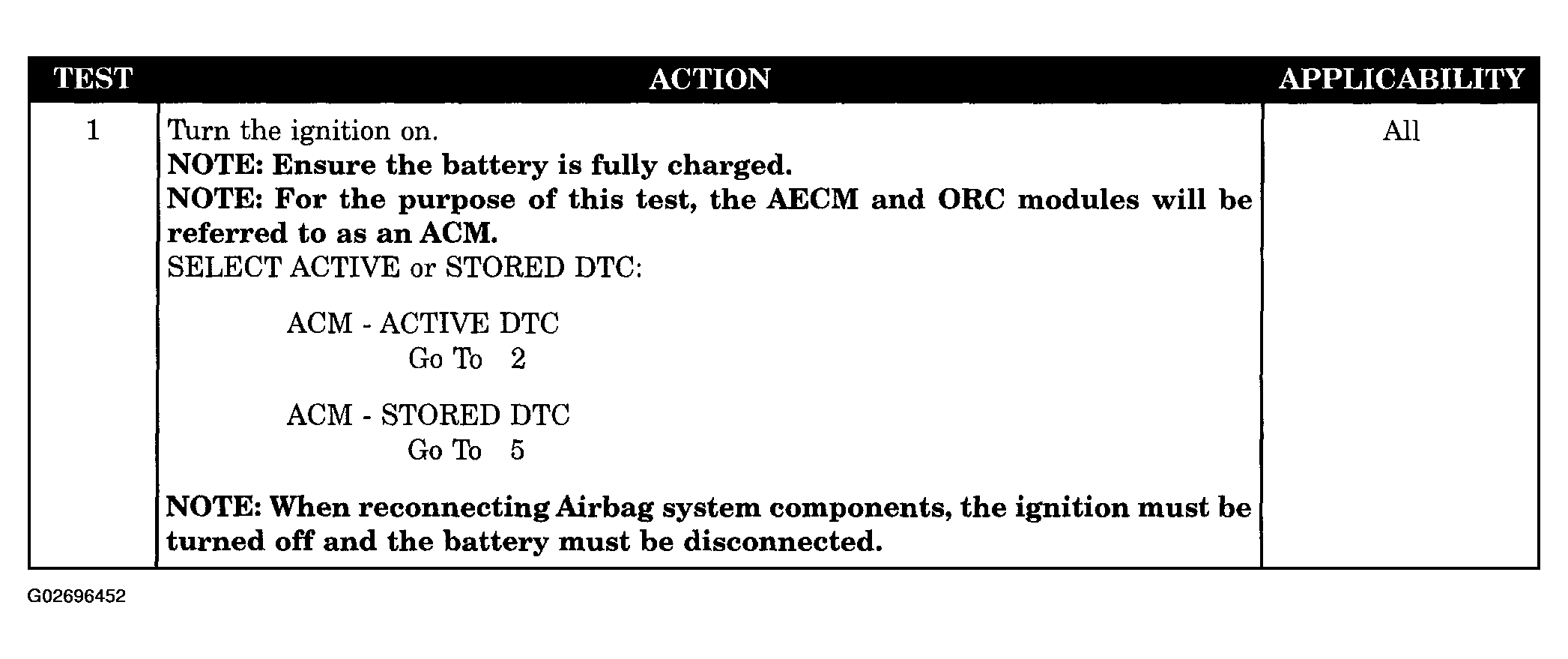

Fig 1: Testing Driver Squib 1 Circuit Open (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

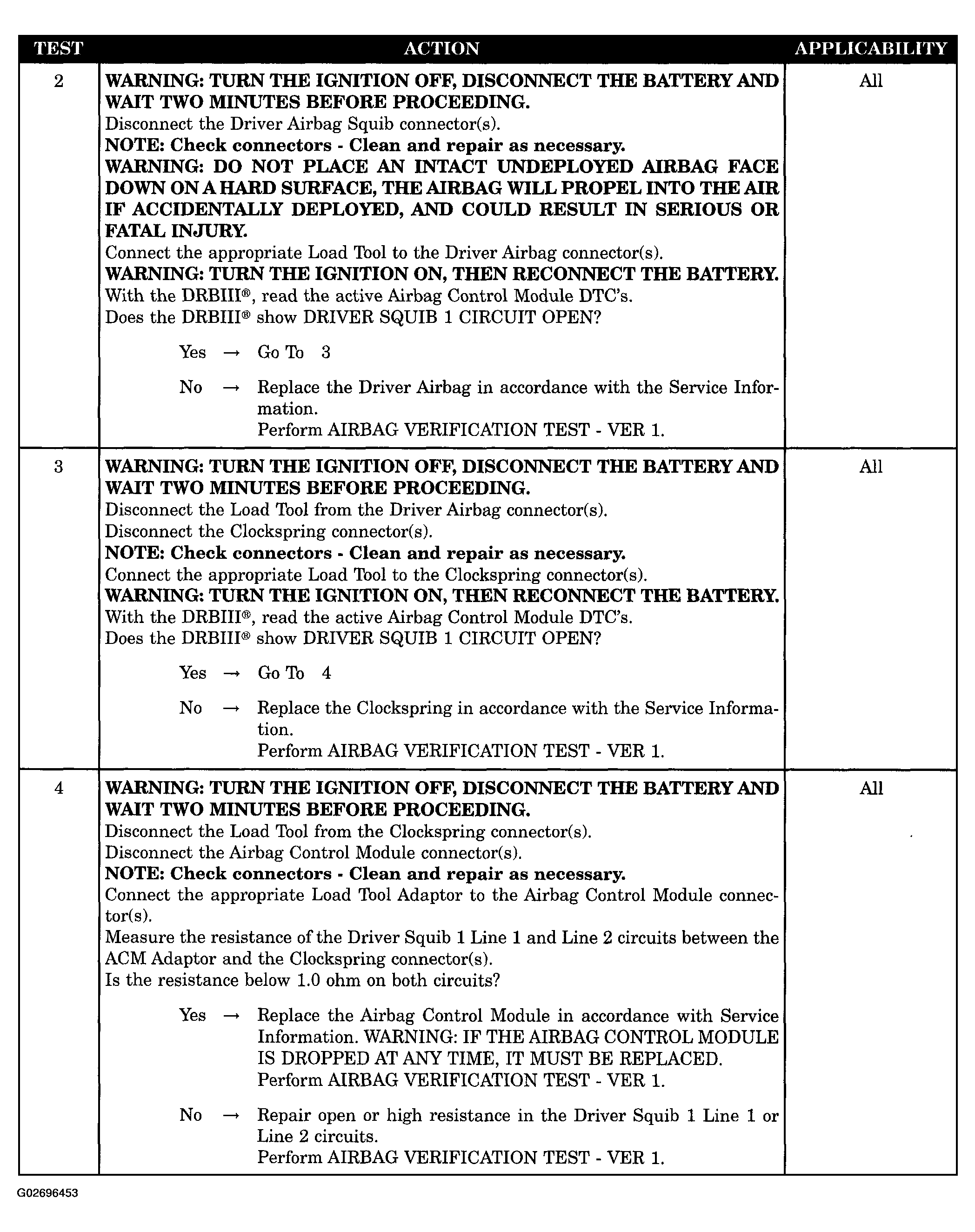

Fig 2: Testing Driver Squib 1 Circuit Open (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

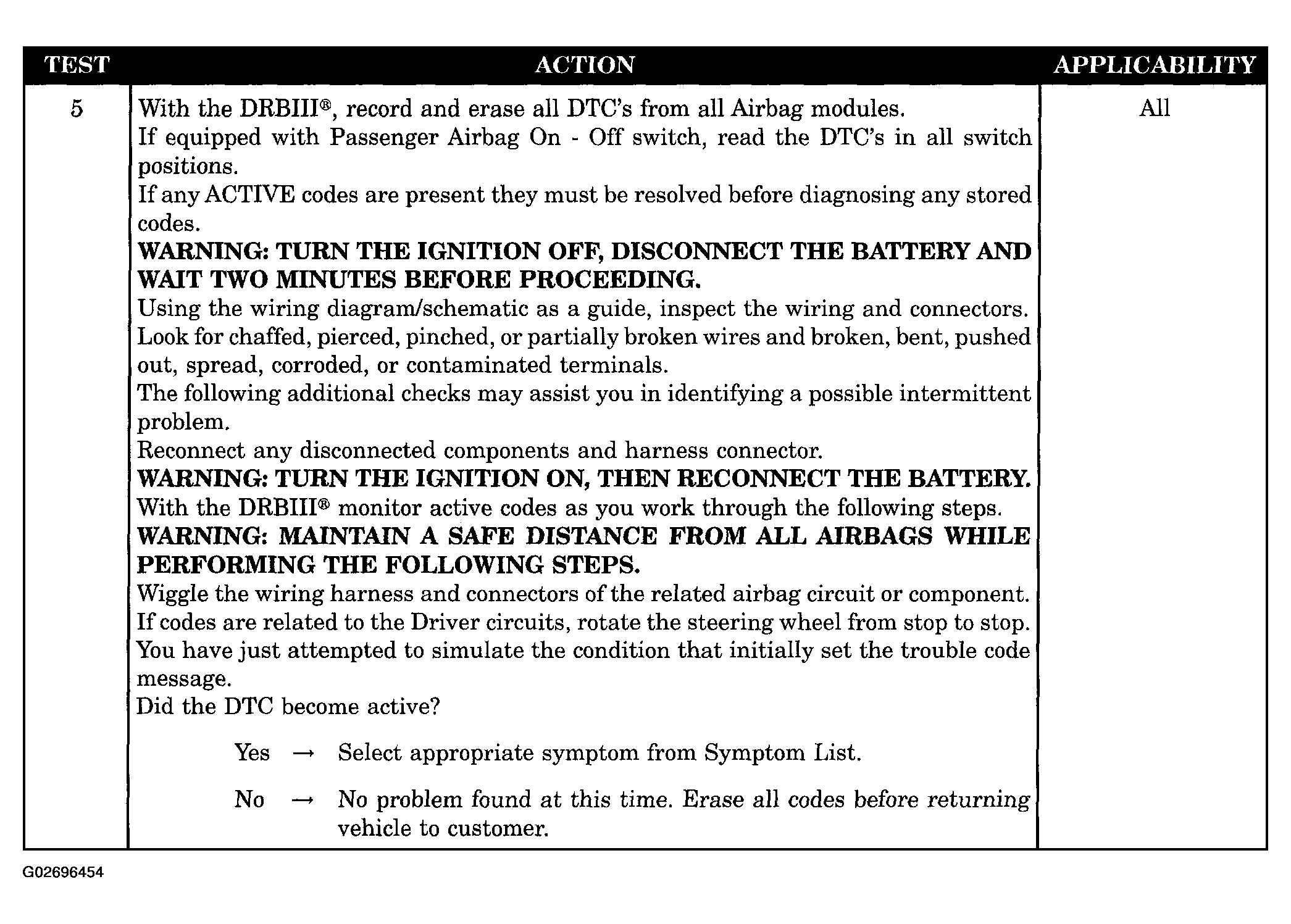

Fig 3: Testing Driver Squib 1 Circuit Open (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
