Symptom: *AIRBAG INDICATOR ON WITHOUT ACTIVE TROUBLE CODES: Testing

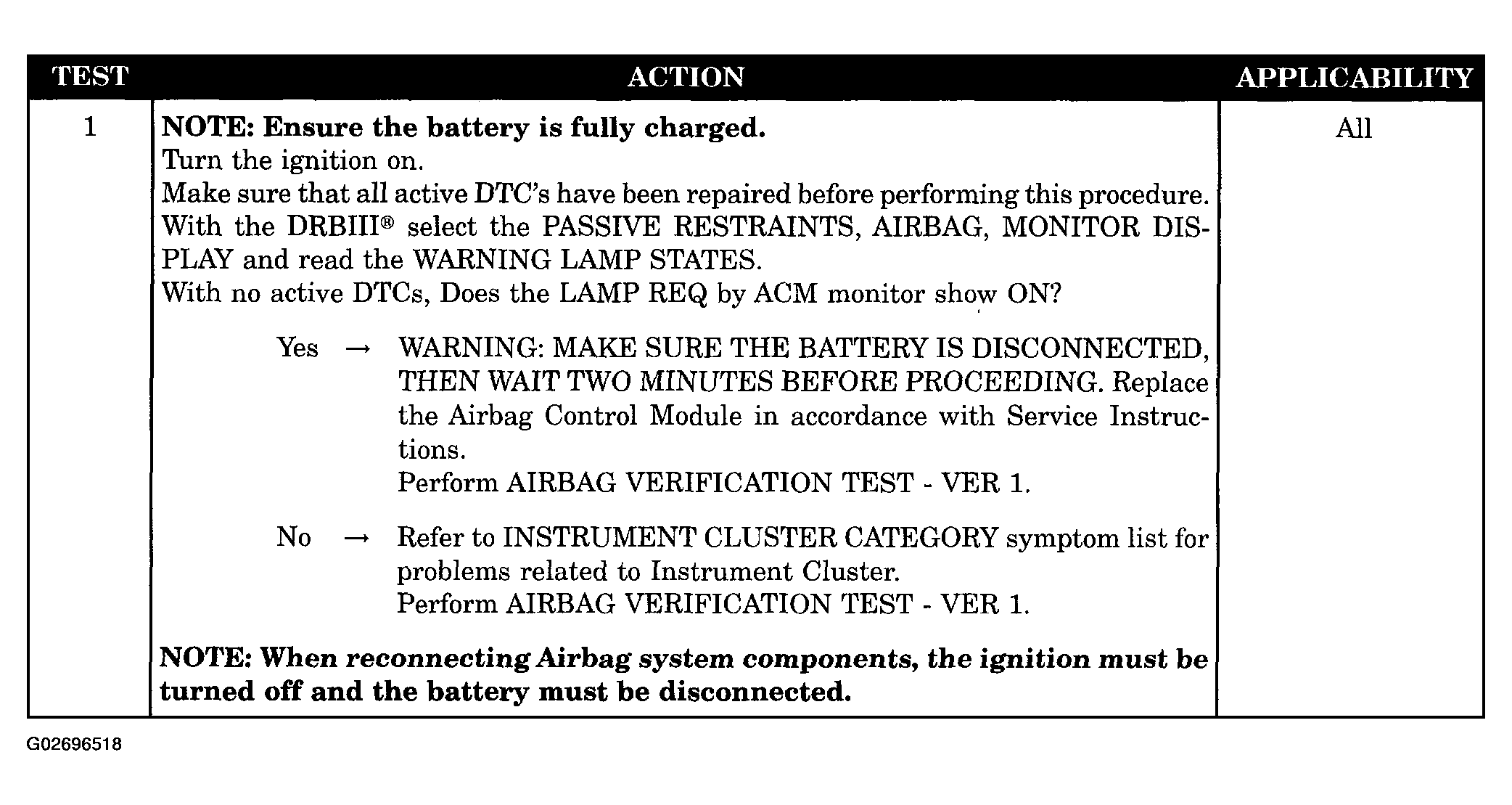

Fig 1: Testing Airbag Indicator On Without Active Trouble Codes

G02696518

Courtesy of DAIMLERCHRYSLER CORP.
