Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Body Interior >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Vehicle Theft/Security >> Symptom: *VTSS SIREN INOPERATIVE (EXPORT ONLY) >> Testing

Symptom: *VTSS SIREN INOPERATIVE (EXPORT ONLY): Testing

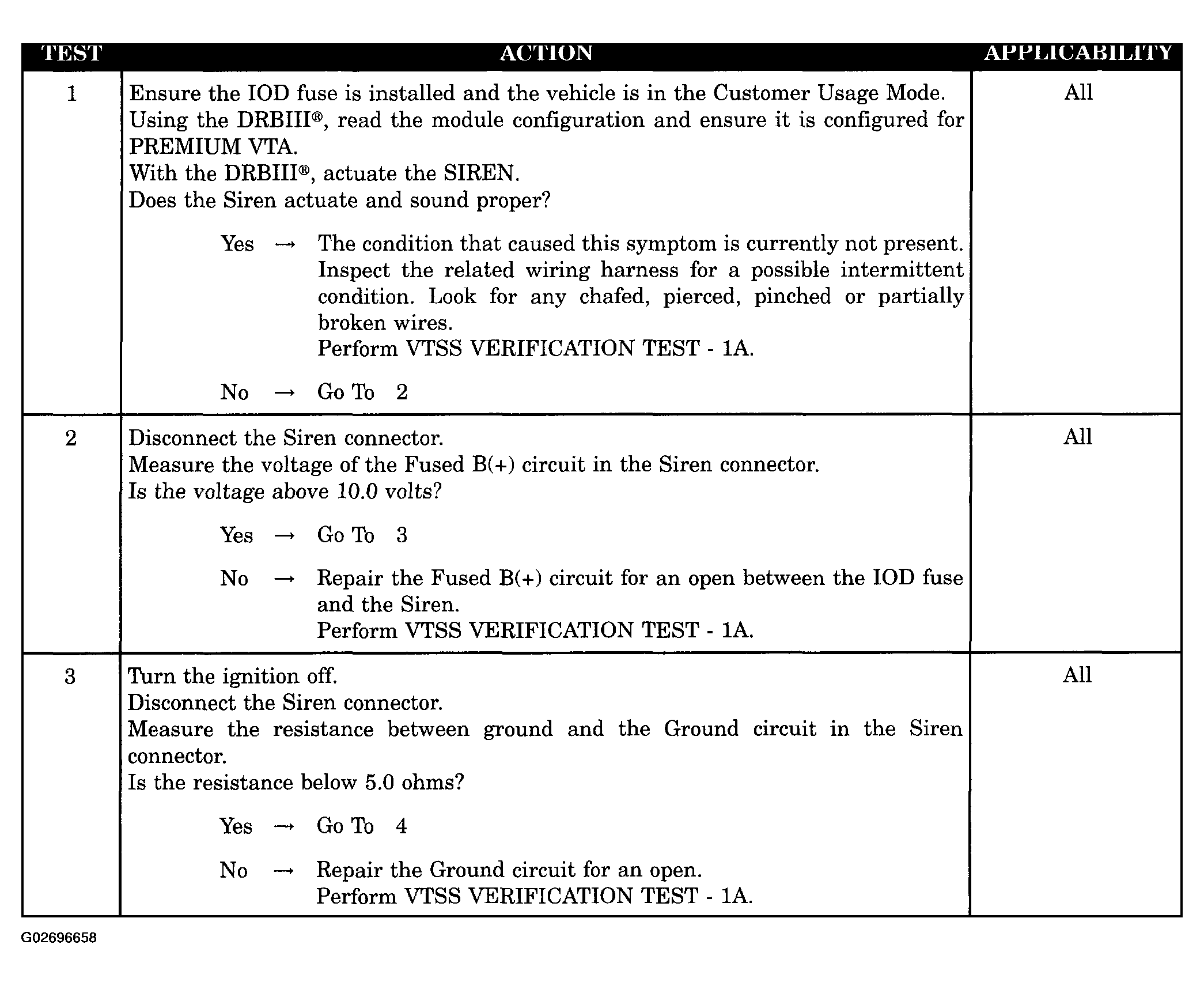

Fig 1: Testing VTSS Siren Inoperative (Export Only) (1 Of 2)
G02696658Courtesy of DAIMLERCHRYSLER CORP.

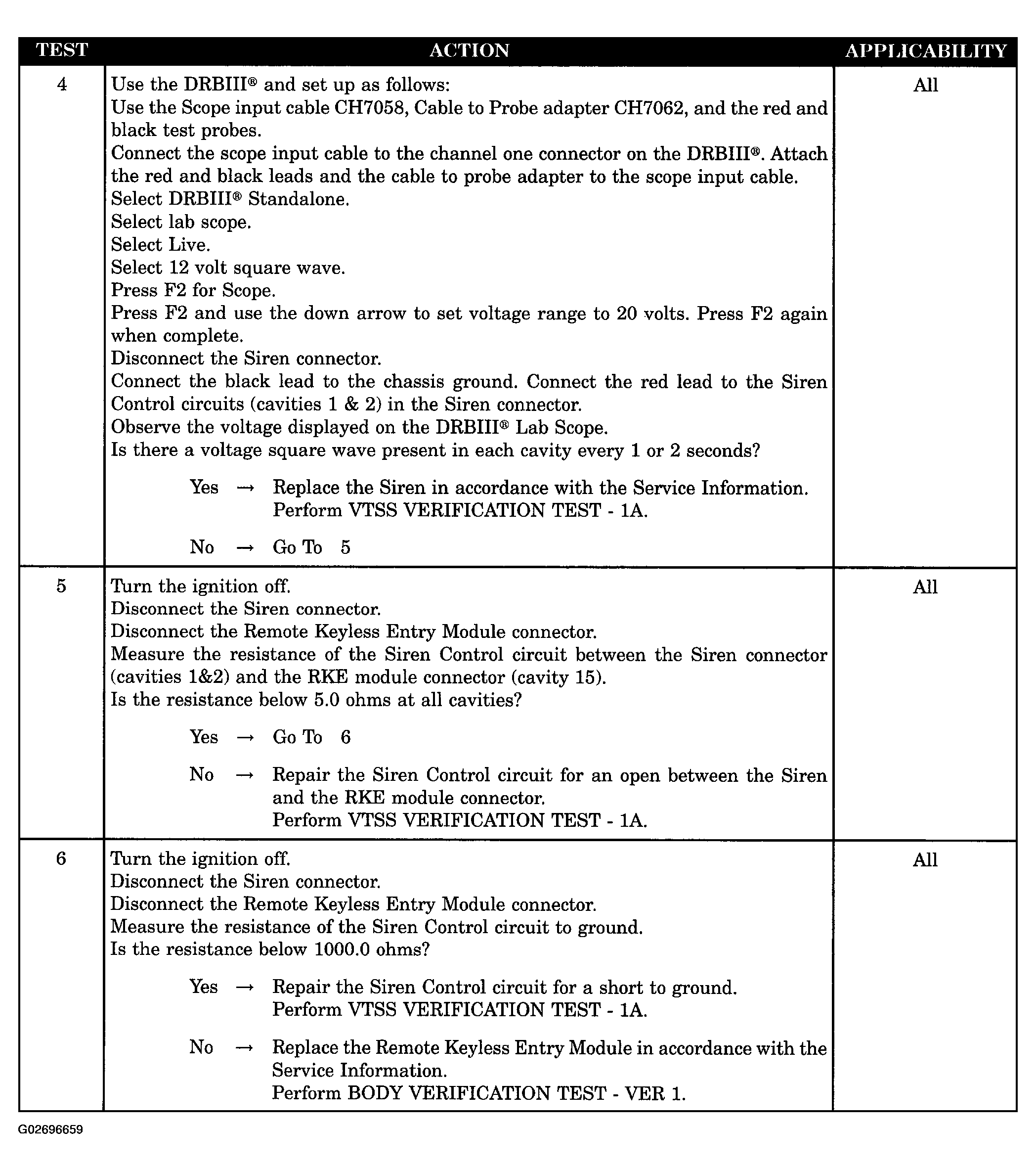

Fig 2: Testing VTSS Siren Inoperative (Export Only) (2 Of 2)
G02696659Courtesy of DAIMLERCHRYSLER CORP.
