Symptom: *FUEL GAUGE INACCURATE: Testing

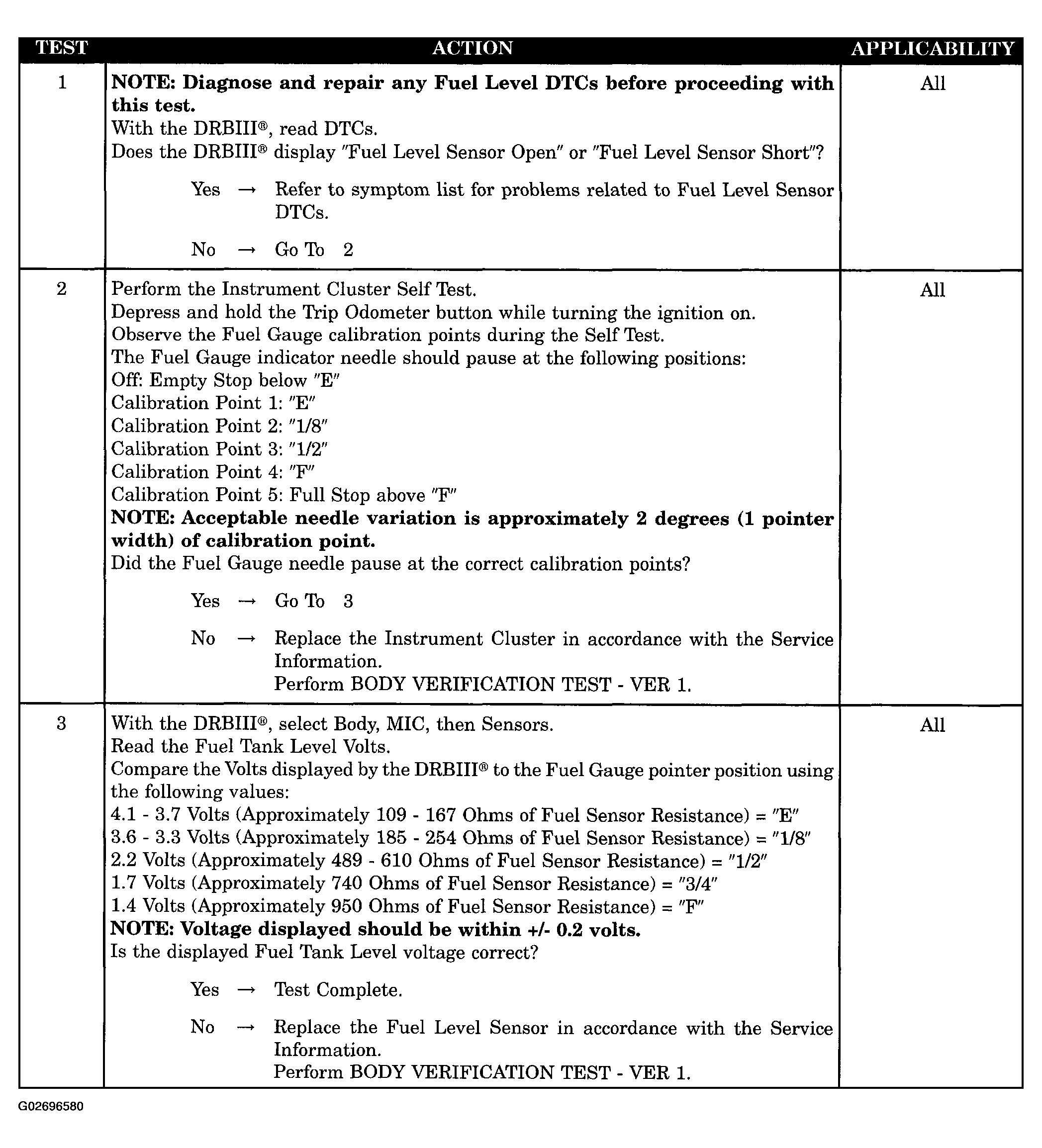

Fig 1: Testing Fuel Gauge Inaccurate
G02696580Courtesy of DAIMLERCHRYSLER CORP.
