Symptom: *BRAKE WARNING INDICATOR ALWAYS ON: Testing

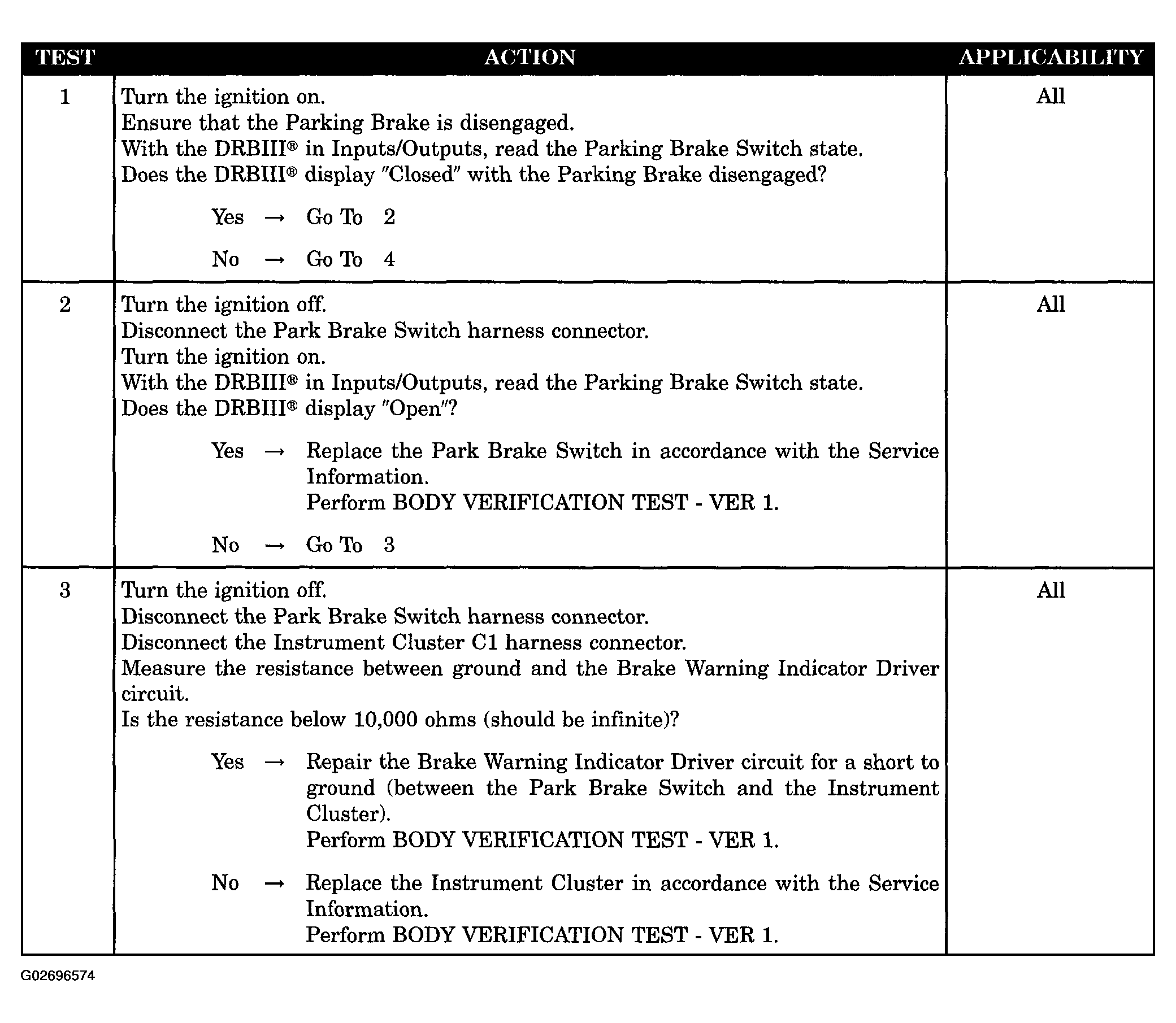

Fig 1: Testing Brake Warning Indicator Always On (1 Of 2)
G02696574Courtesy of DAIMLERCHRYSLER CORP.

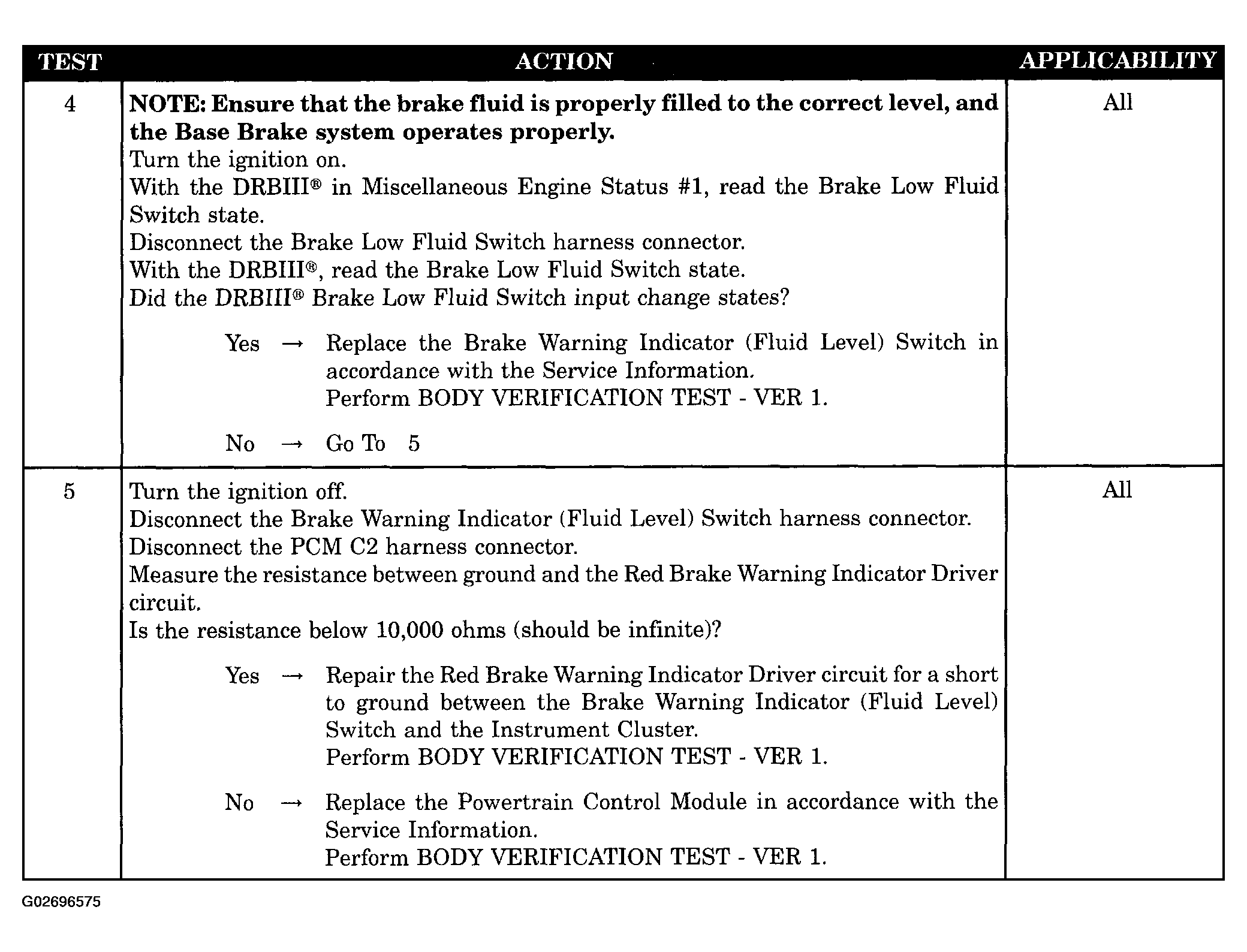

Fig 2: Testing Brake Warning Indicator Always On (2 Of 2)
G02696575Courtesy of DAIMLERCHRYSLER CORP.
