Symptom: *DOORS LOCKABLE WITH KEY IN IGNITION AND DRIVER DOOR OPEN: Testing

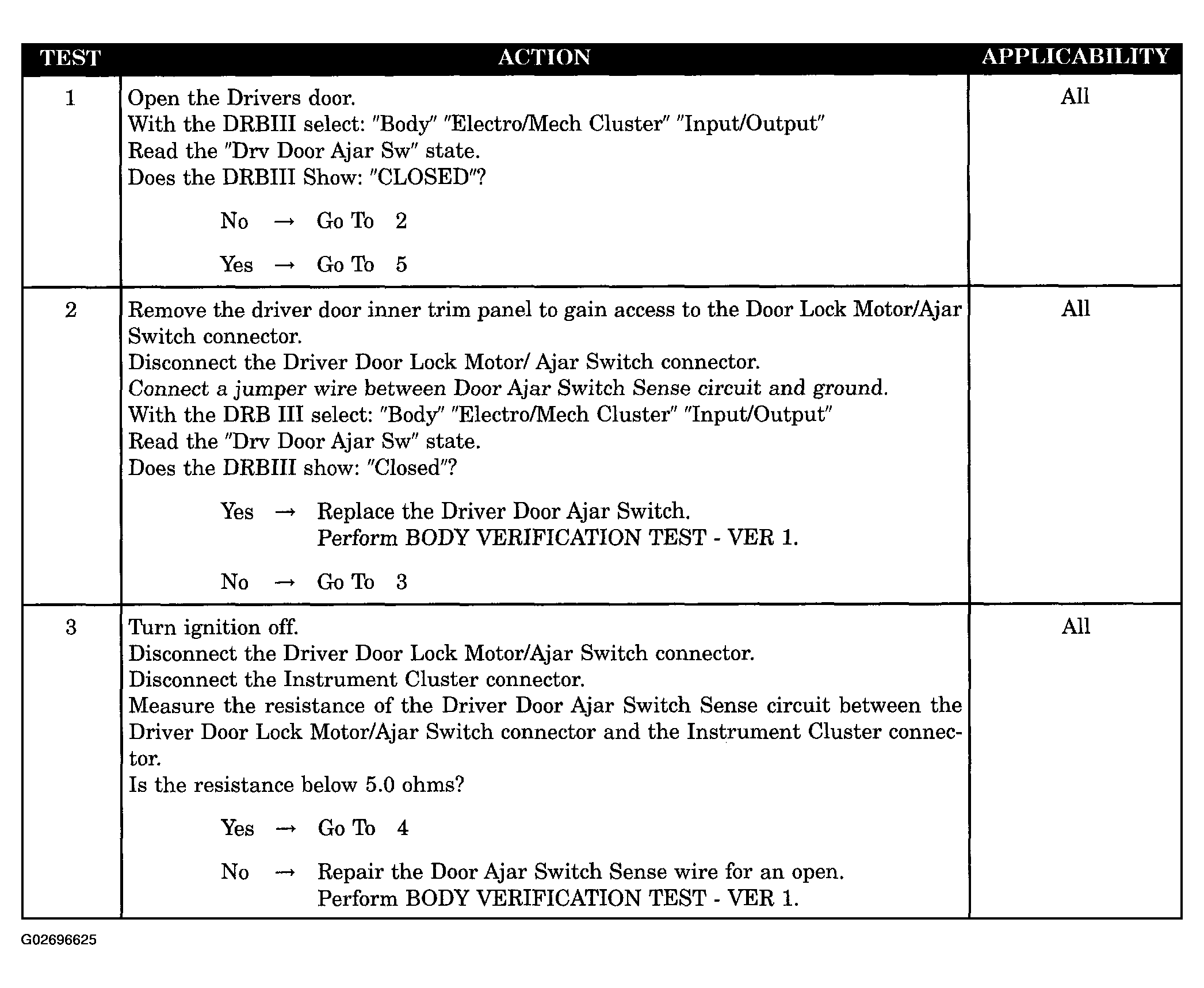

Fig 1: Testing Doors Lockable With Key In Ignition And Driver Door Open (1 Of 2)
G02696625Courtesy of DAIMLERCHRYSLER CORP.

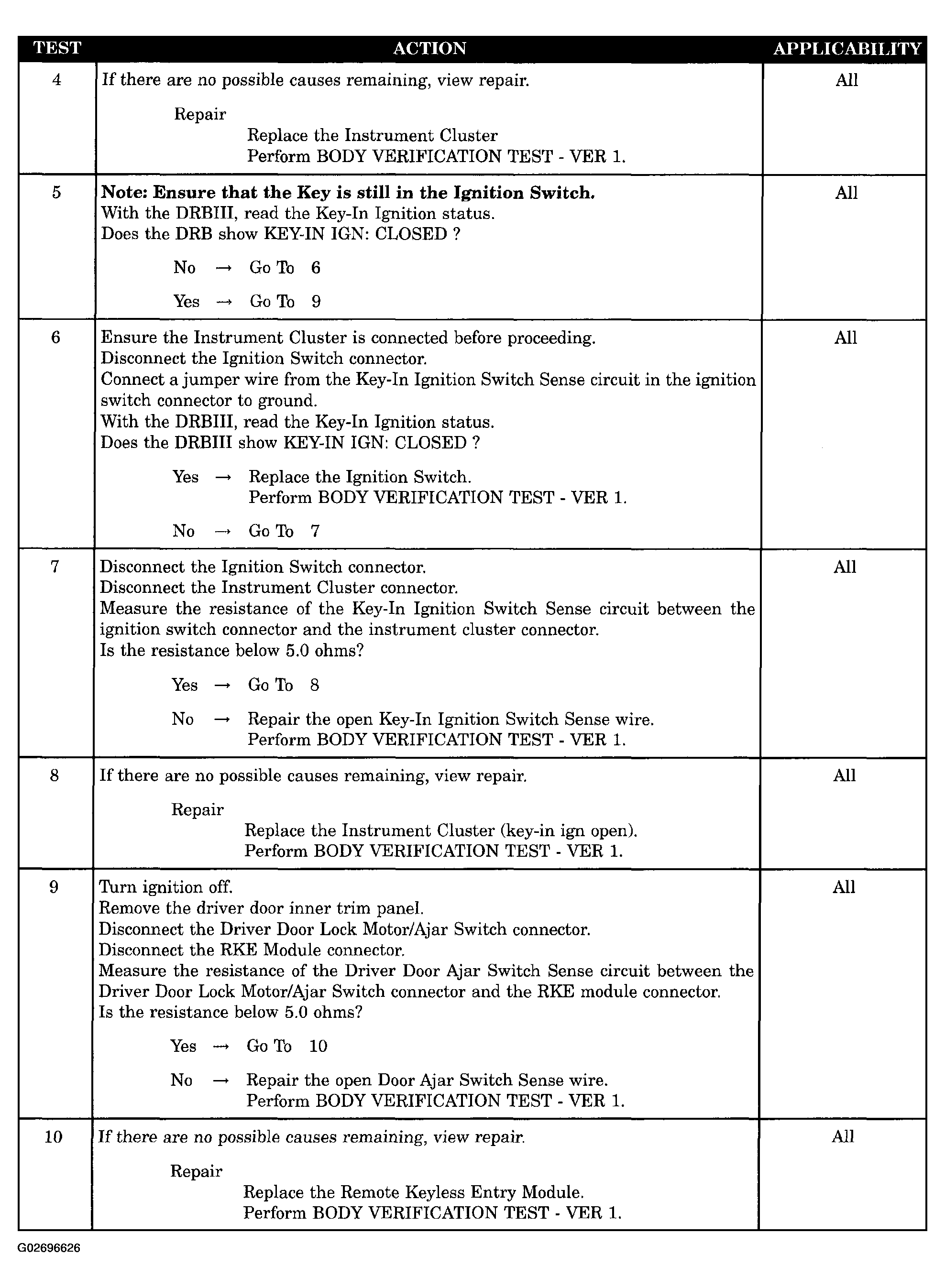

Fig 2: Testing Doors Lockable With Key In Ignition And Driver Door Open (2 Of 2)
G02696626Courtesy of DAIMLERCHRYSLER CORP.
