Symptom: PANEL DIMMER SHORTED: Testing

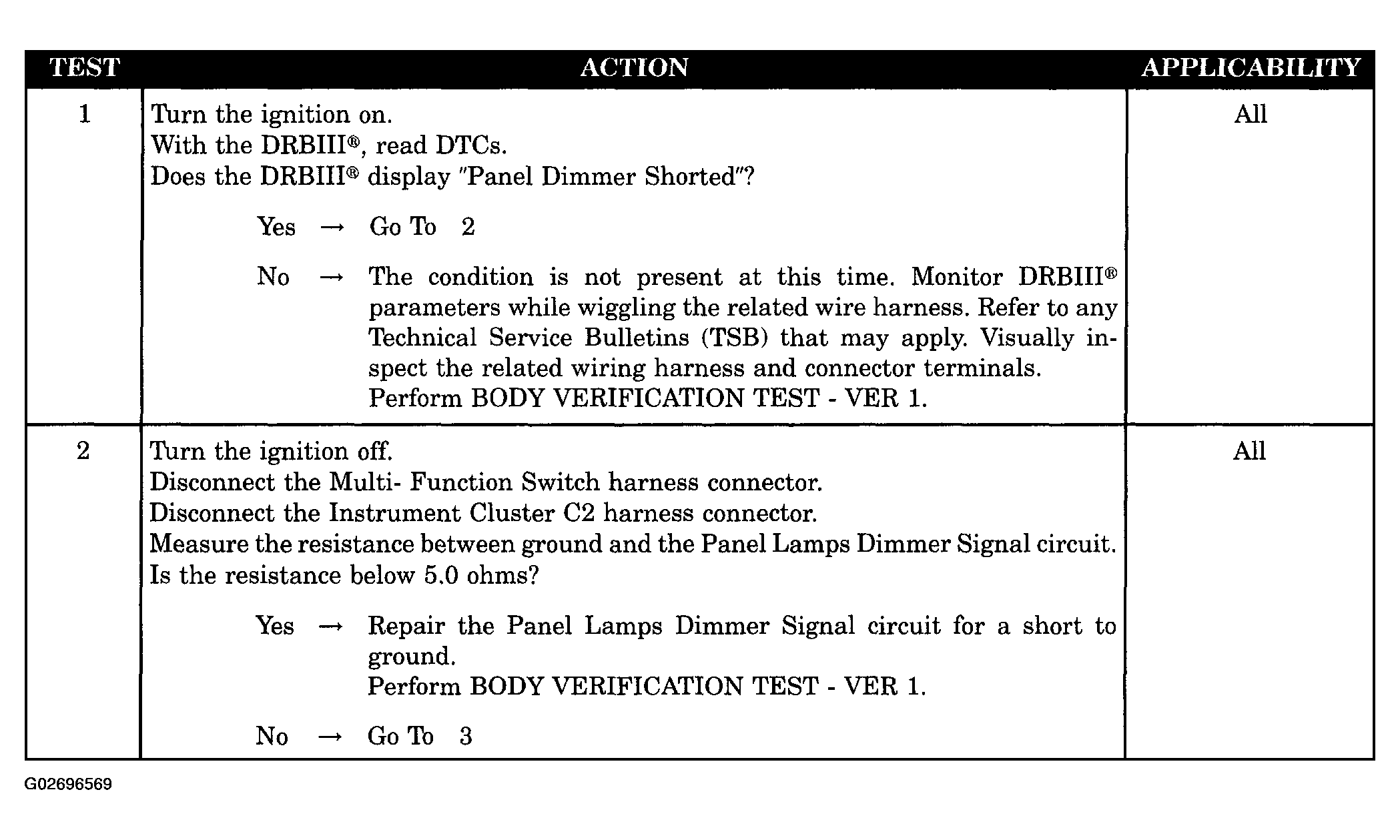

Fig 1: Testing Panel Dimmer Shorted (1 Of 2)

G02696569

Courtesy of DAIMLERCHRYSLER CORP.

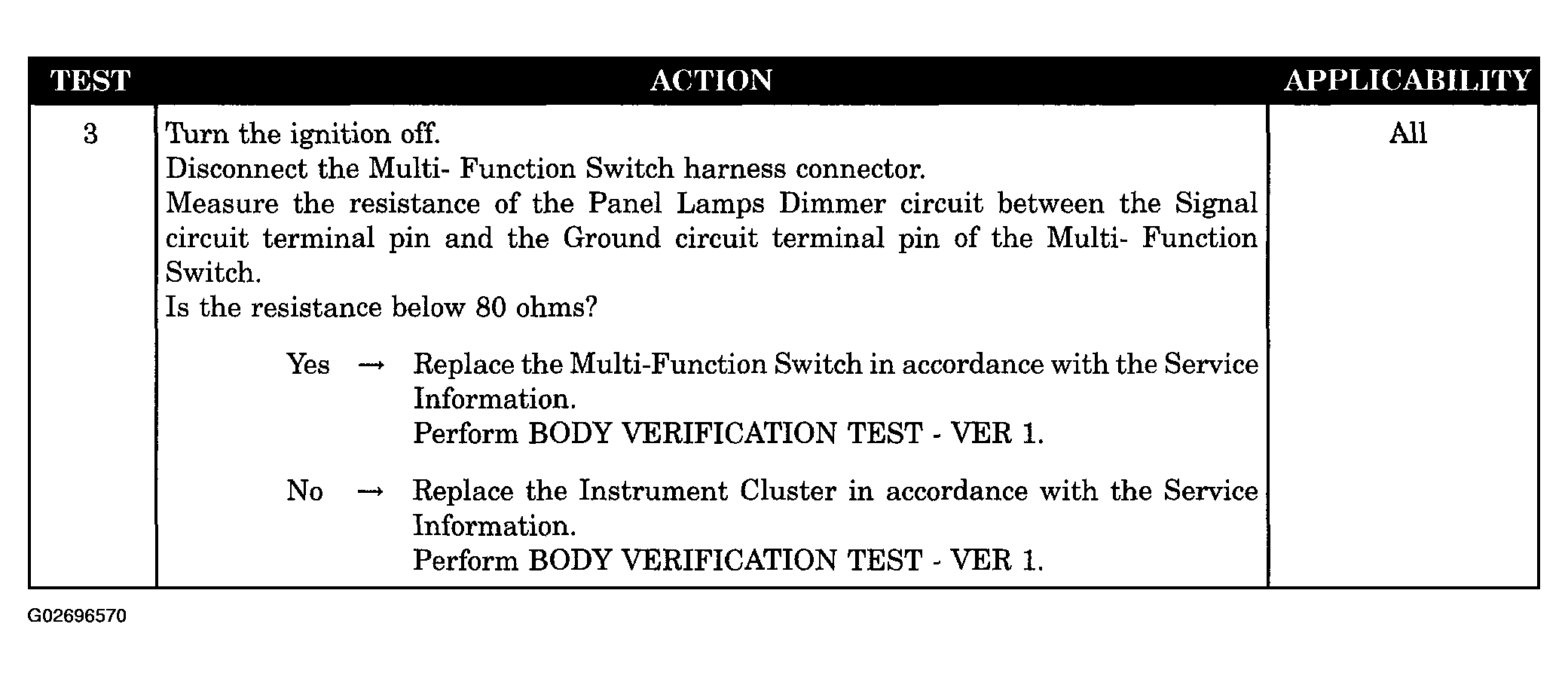

Fig 2: Testing Panel Dimmer Shorted (2 Of 2)

G02696570

Courtesy of DAIMLERCHRYSLER CORP.
