Symptom: *NO RESPONSE FROM ACM
>>
Testing
Symptom: *NO RESPONSE FROM ACM: Testing

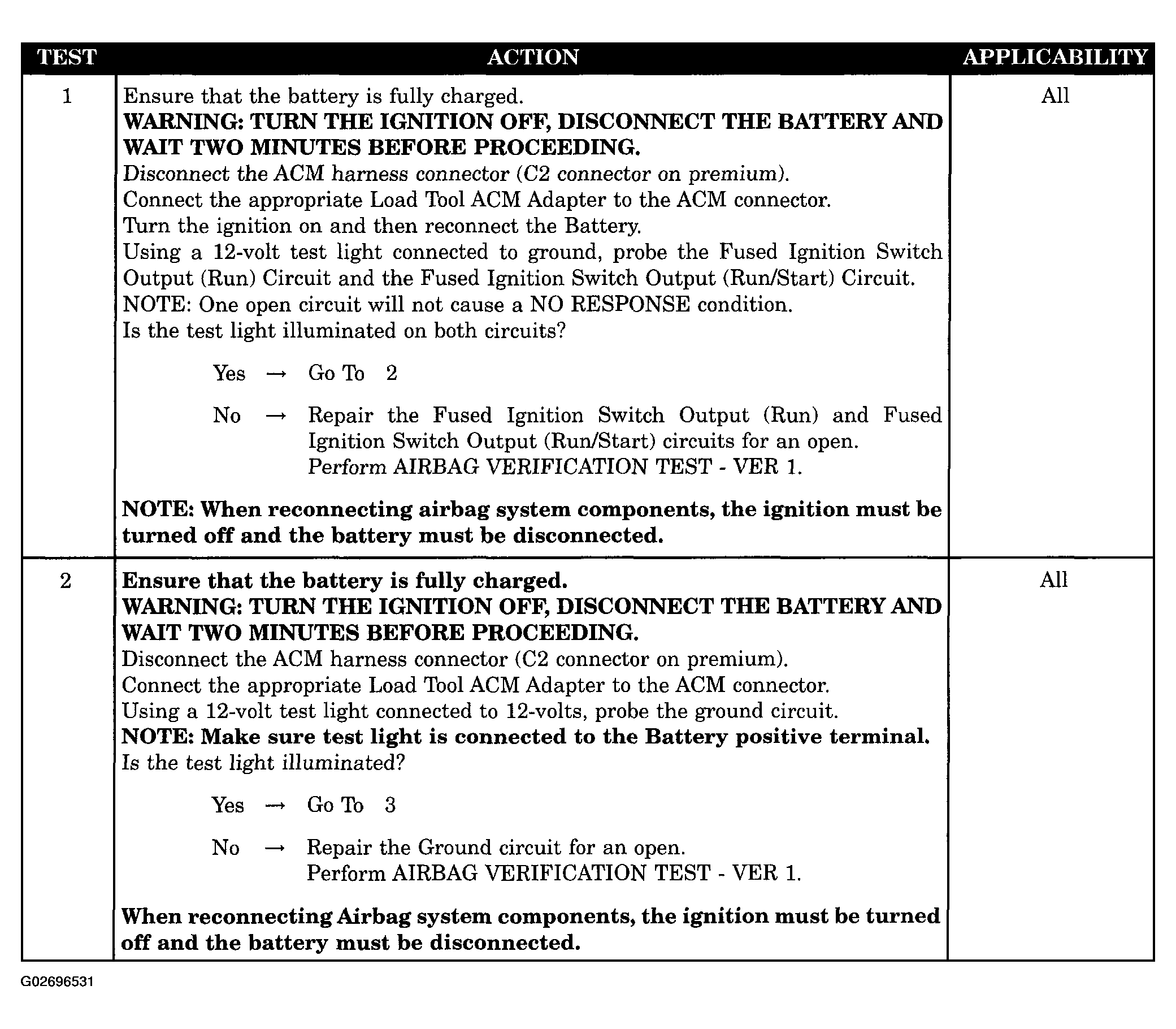

Fig 1: Testing No Response From ACM (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

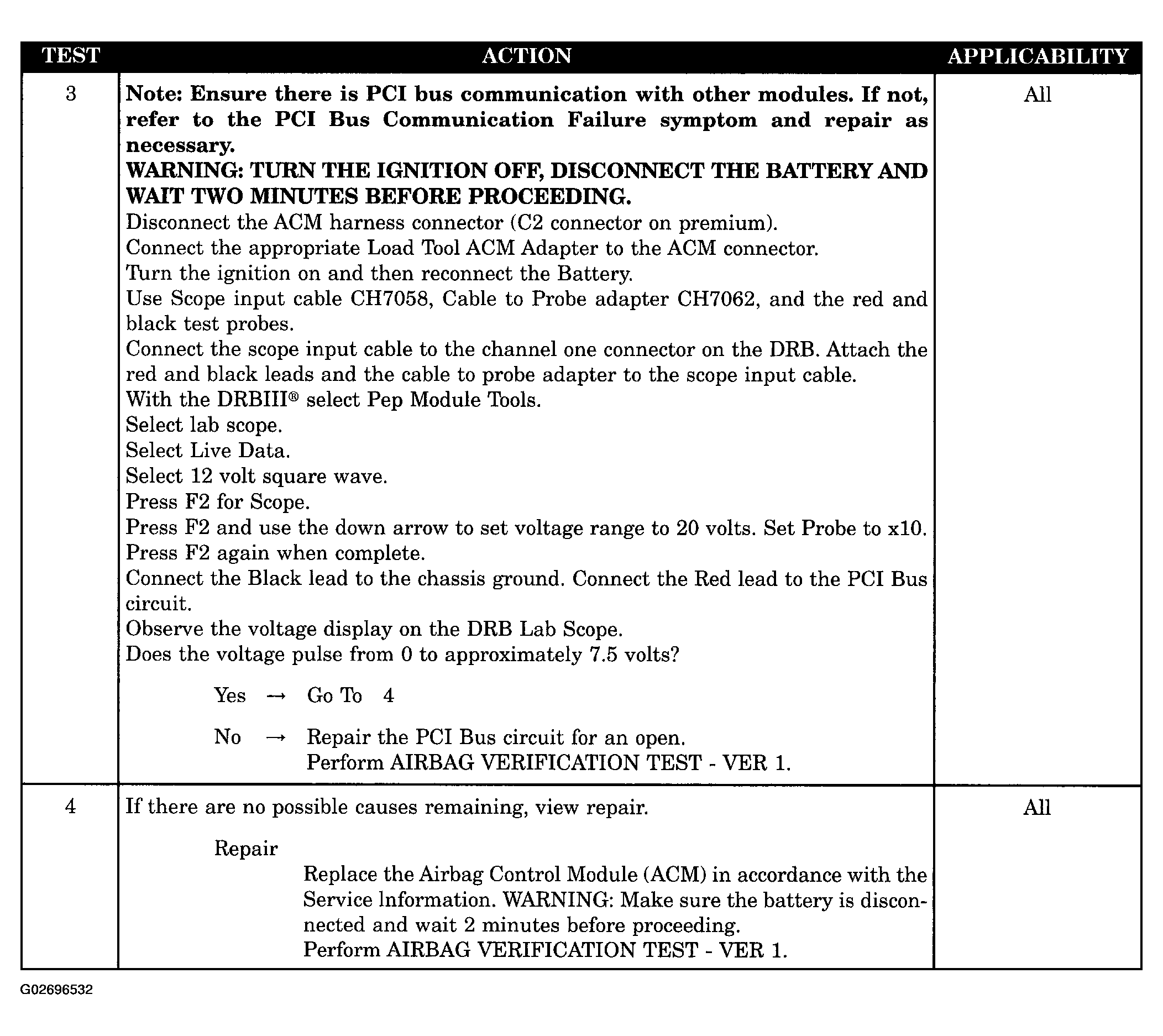

Fig 2: Testing No Response From ACM (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
