Symptom: DRIVER CURTAIN OR SEAT SQUIB SHORT TO GROUND: Testing

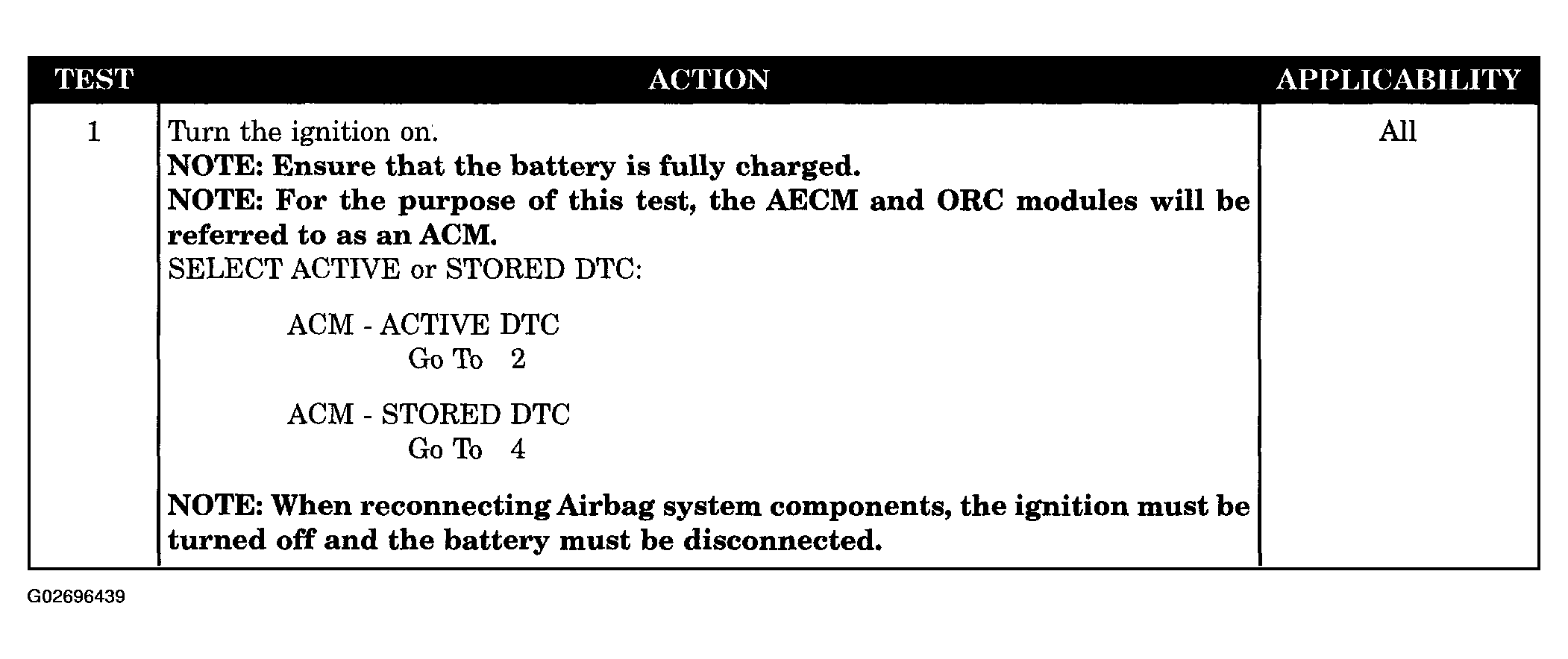

Fig 1: Testing Driver Curtain Or Seat Squib Short To Ground (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

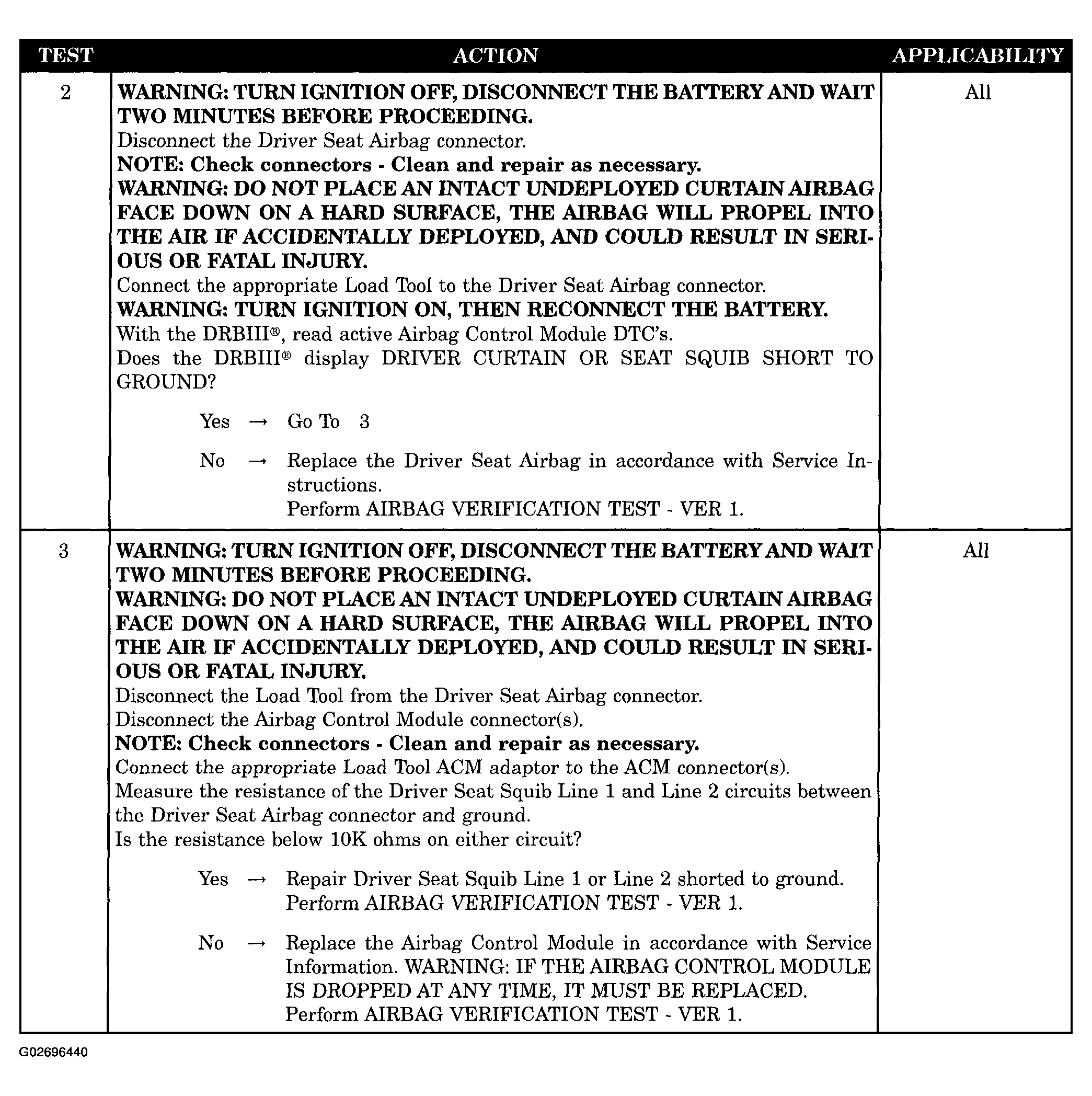

Fig 2: Testing Driver Curtain Or Seat Squib Short To Ground (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

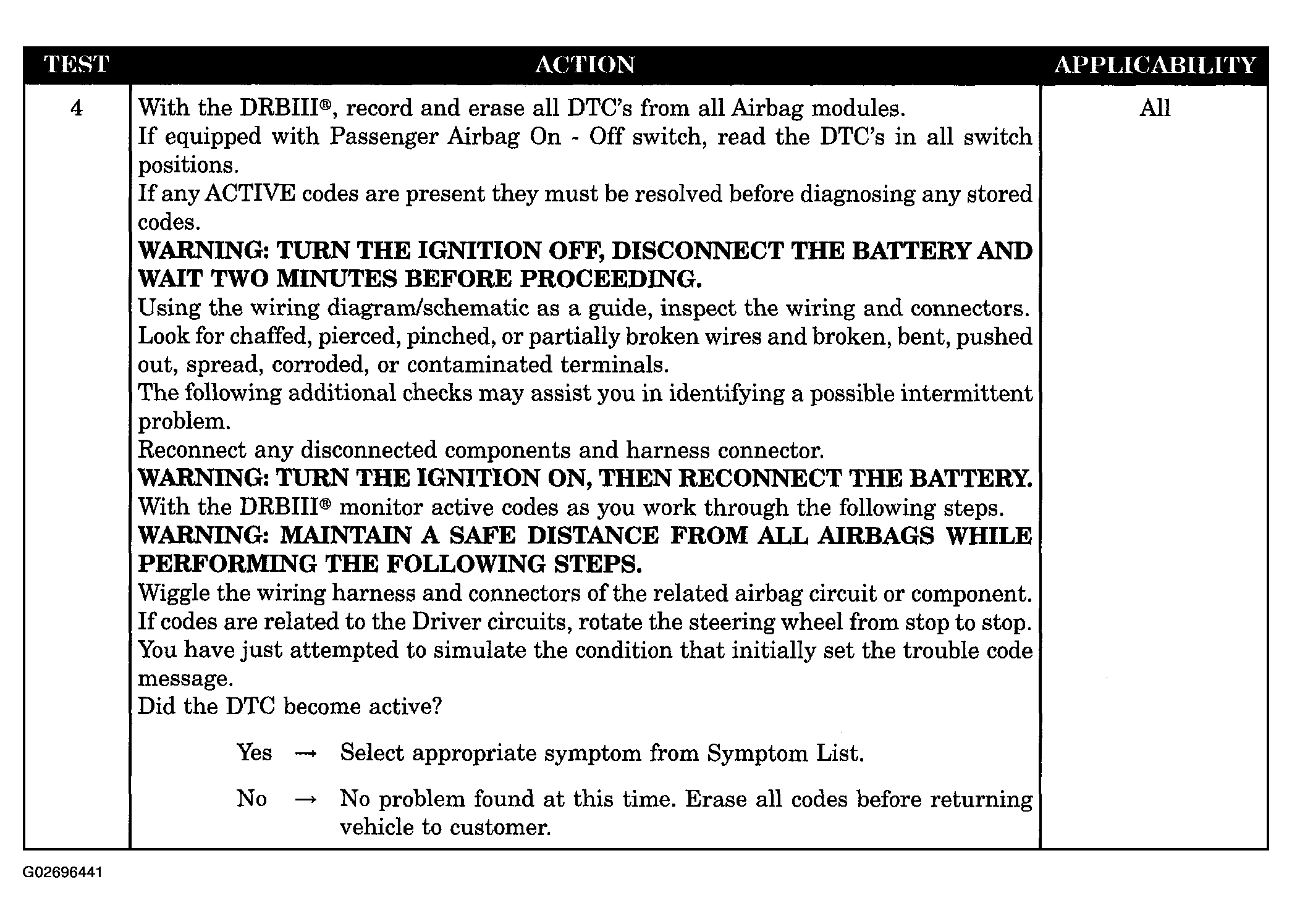

Fig 3: Testing Driver Curtain Or Seat Squib Short To Ground (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
