Rear Door Glass Run Weatherstrip: Installation

  1. Clean butyl material from door flange area.
  2. Place door run weatherstrip in position on window frame channel corners first (Fig 1 ).

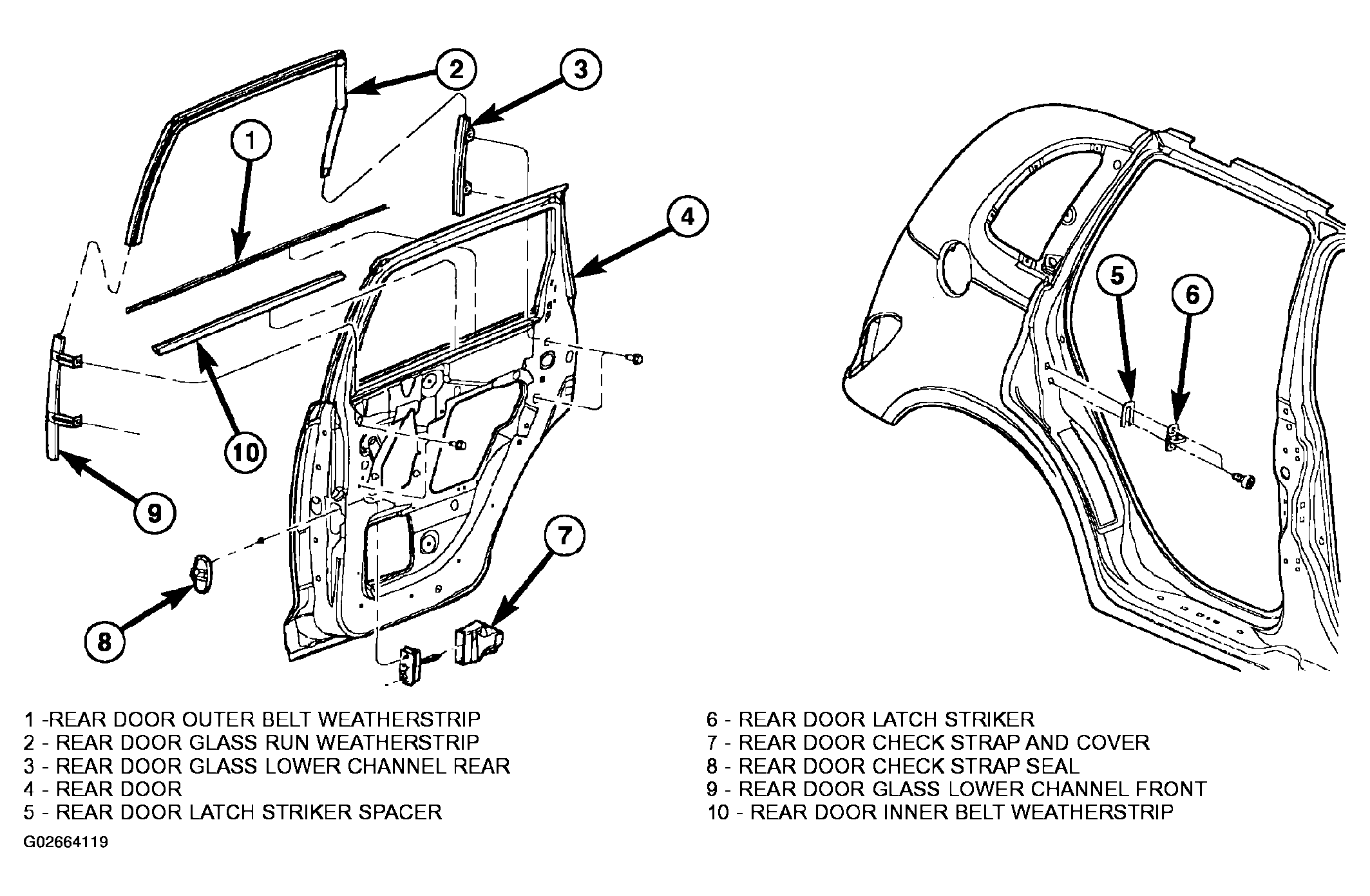

    Fig 1: Removing Rear Door Striker
    G02664119Courtesy of DAIMLERCHRYSLER CORP.
  3. Push door run weatherstrip into window frame channel.
  4. Install door glass.
  5. Install pull cup support bracket, water dam, and door trim panel.
