Front Door Outer Belt Weatherstrip: Installation

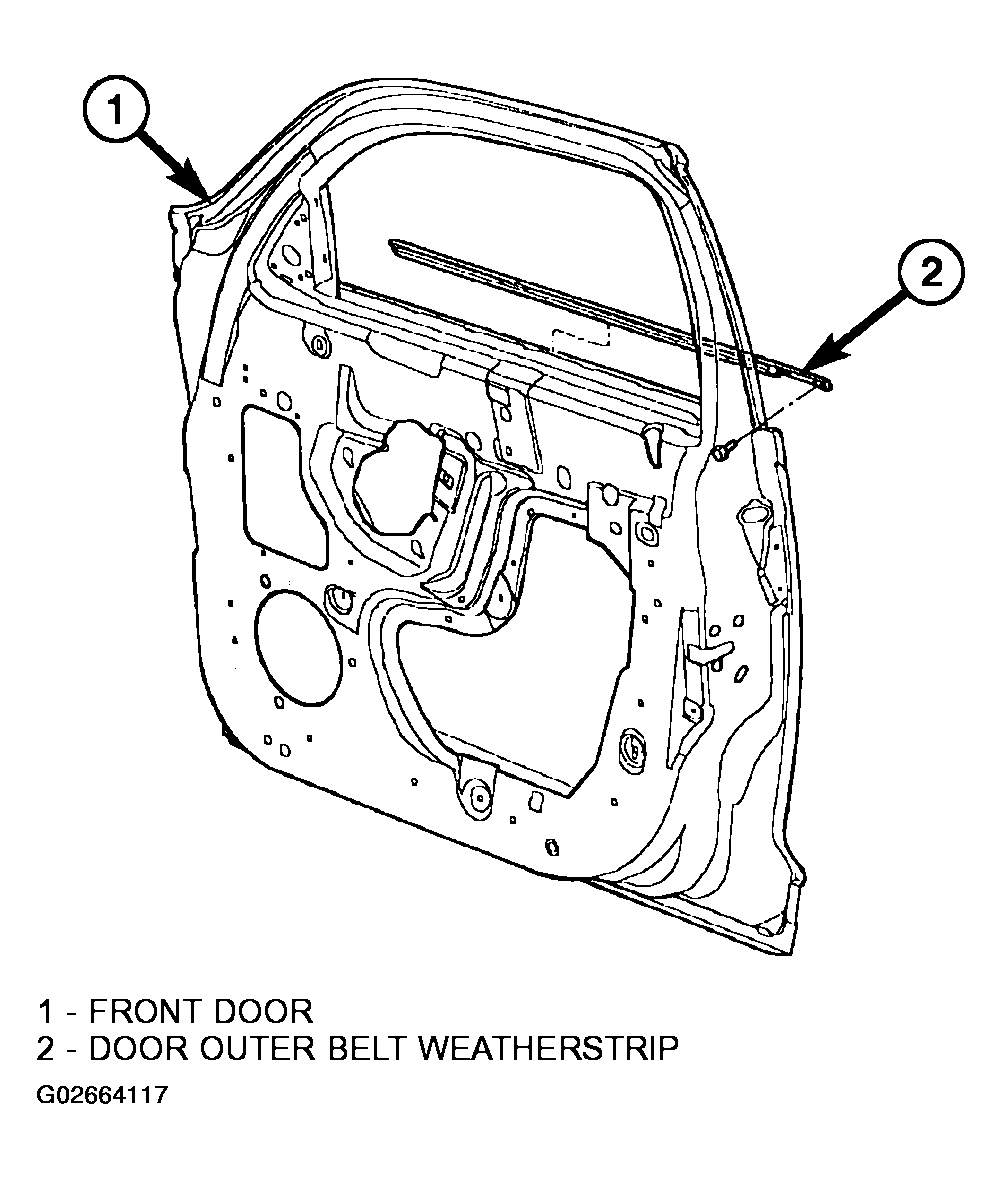

  1. Starting at leading edge of door, press weatherstrip into position (Figure ).
  2. Install screw into weatherstrip.
  3. Operate window and check for interference.
