Front Door Glass Run Weatherstrip: Installation

Clean butyl material from door flange area.

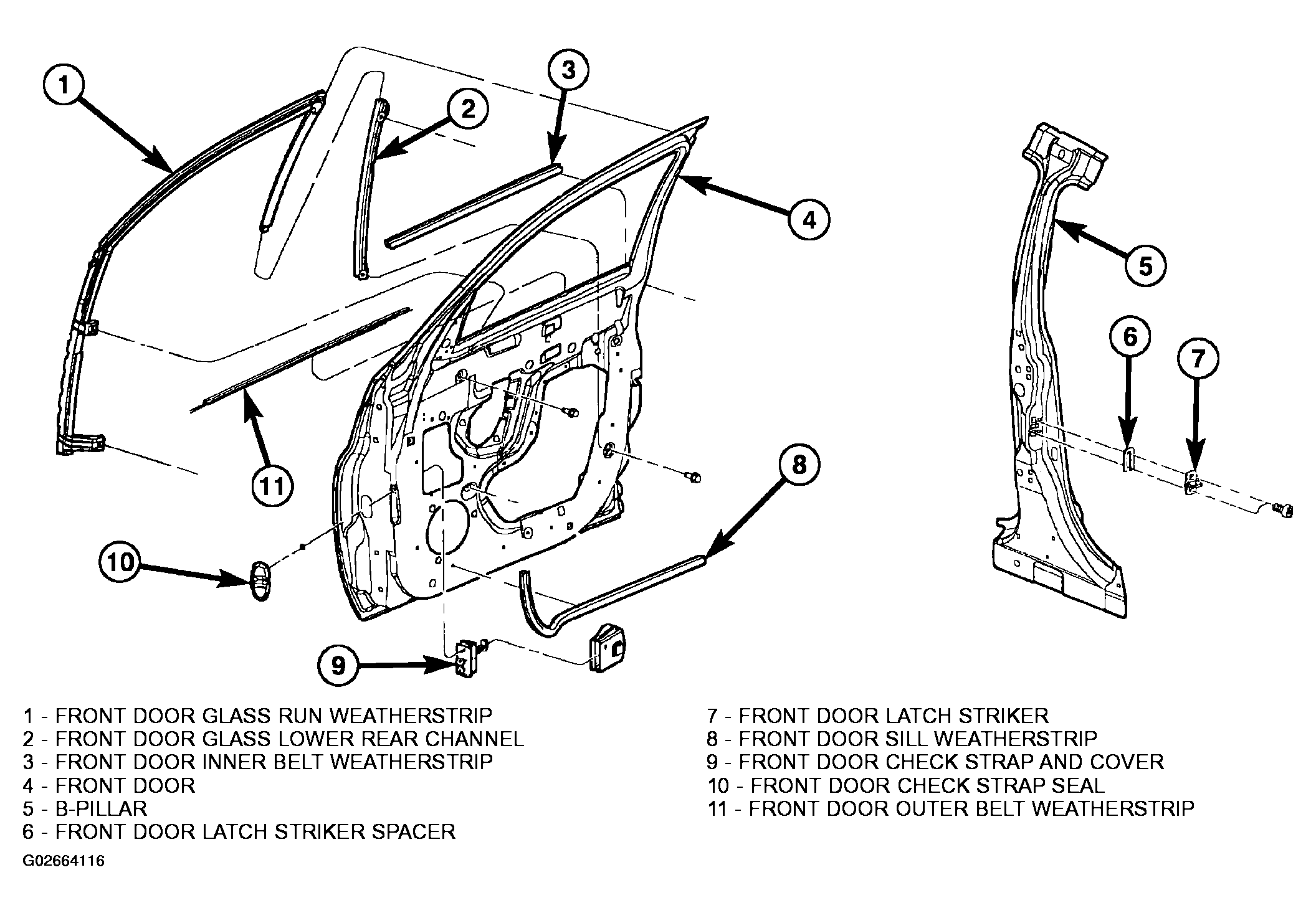

Place door run weatherstrip in position on window frame channel (Figure ).
Starting in the corners, push door run weatherstrip into window frame channel.
Push weatherstrip into lower front channel above door latch.
Install weatherstrip fasteners.
Install door glass.
Tighten side view mirror.
Install pull cup support bracket, water shield, door trim panel and flag trim.
