Front And Rear Door Opening Weatherstrip: Installation

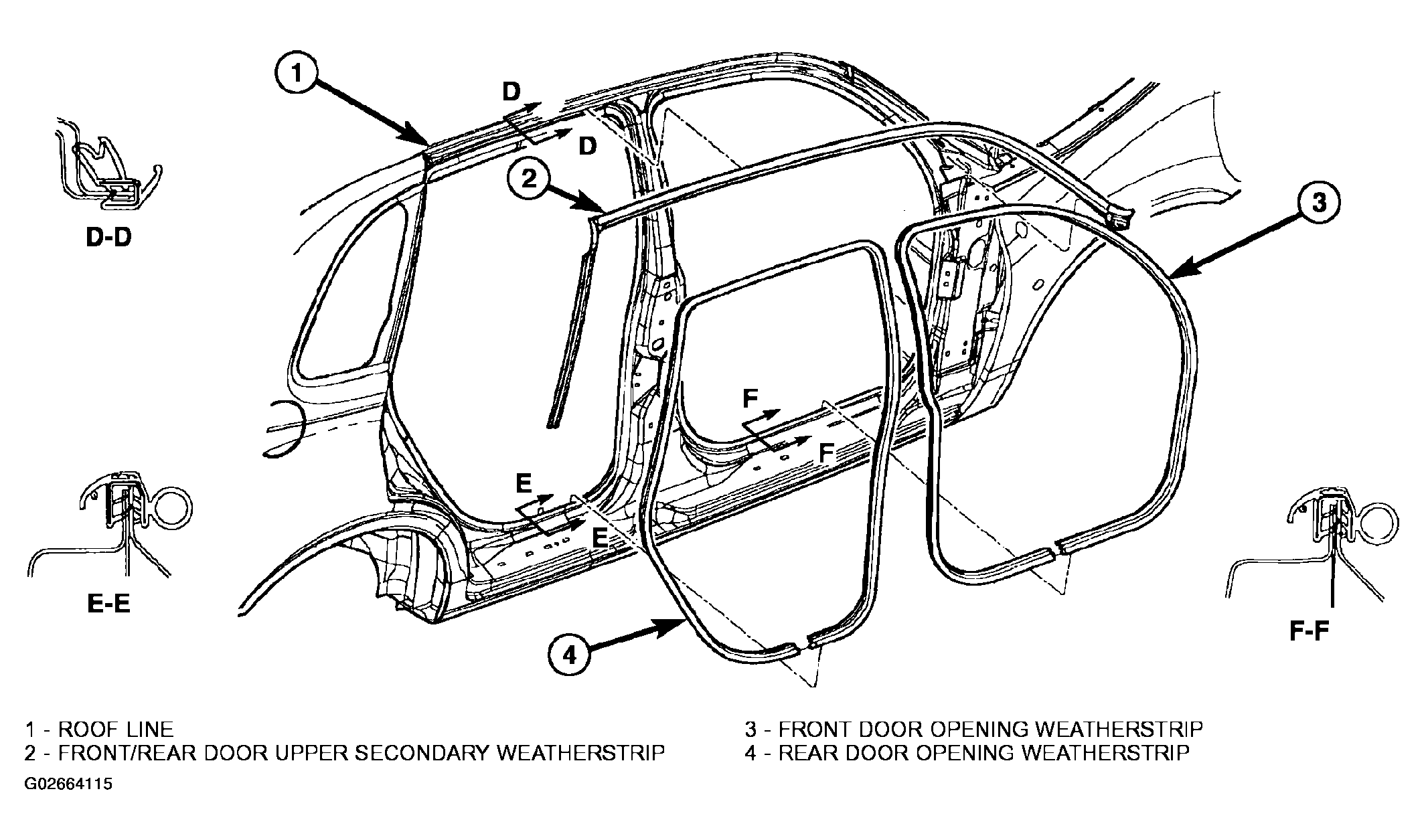

  1. Position weatherstrip at the B-pillar upper corner (Figure ).
  2. Engage front/rear weatherstrip on the fence at upper B-pillar and work down the B-pillar.
  3. Engage weatherstrip along the header and down the A-pillar/C-pillar.
  4. Engage weatherstrip along the sill. There may be slack material work it to the front of the opening.
  5. Verify weatherstrip sealing.
