Left End Cap

Remove the left lower instrument panel bezel. Pull top rearward, lower to floor and with a quick pulling motion remove off instrument panel.
Remove two screws to the left instrument panel end cap.
Pull the left end cap rearward to unsnap (Fig 1 ). Maneuver it out from underneath the left A-pillar trim and top cover. Removal of these components is not necessary.

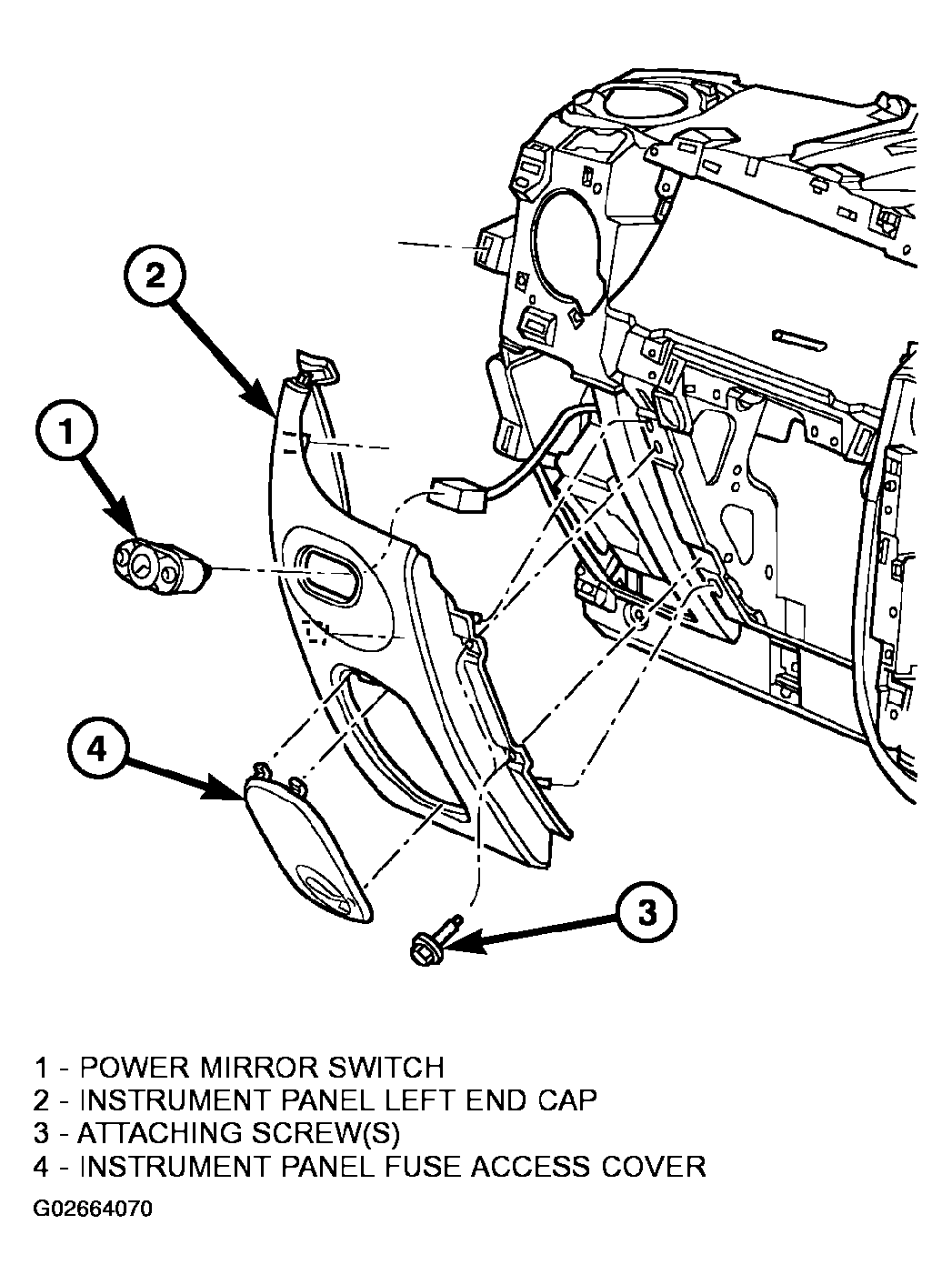

Fig 1: Removing Left Instrument Panel End Cap Typical RT & LT Side
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the power mirror switch wiring connector (if equipped) and remove from vehicle.
