Airbag - Symptoms
>>
Symptom List: ACCELEROMETER 1, ACCELEROMETER 2, INTERNAL 1, INTERNAL 2, OUTPUT DRIVER 1, OUTPUT DRIVER 2, STORED ENERGY FIRING 1
>>
Diagnostic Procedure
Diagnostic Procedure

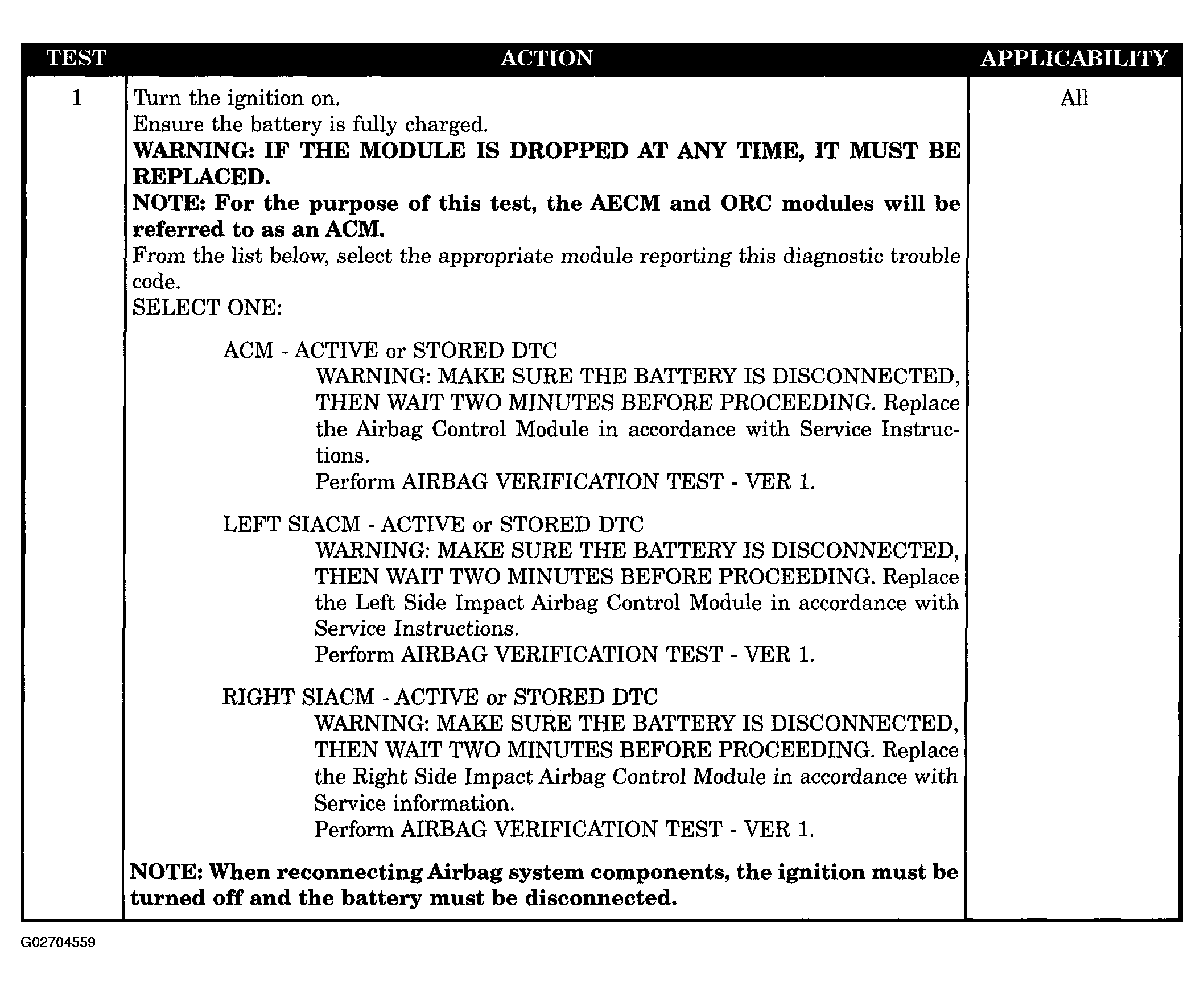

Fig 1: Internal Module - Diagnostic Procedure
Courtesy of DAIMLERCHRYSLER CORP.
