Removal (Rear)

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove rear wheel and tire assembly.
  3. Remove rear caliper. See CALIPER  .
  4. Remove rear rotor. See ROTOR  .
  5. Remove the outboard brake shoe, by prying brake shoe retaining clip over raised area on caliper and sliding the shoe off the caliper. See Fig 1 .
  6. Pull inboard shoe away from piston, until the retaining clip is free from the cavity in the piston. See Fig 2 .

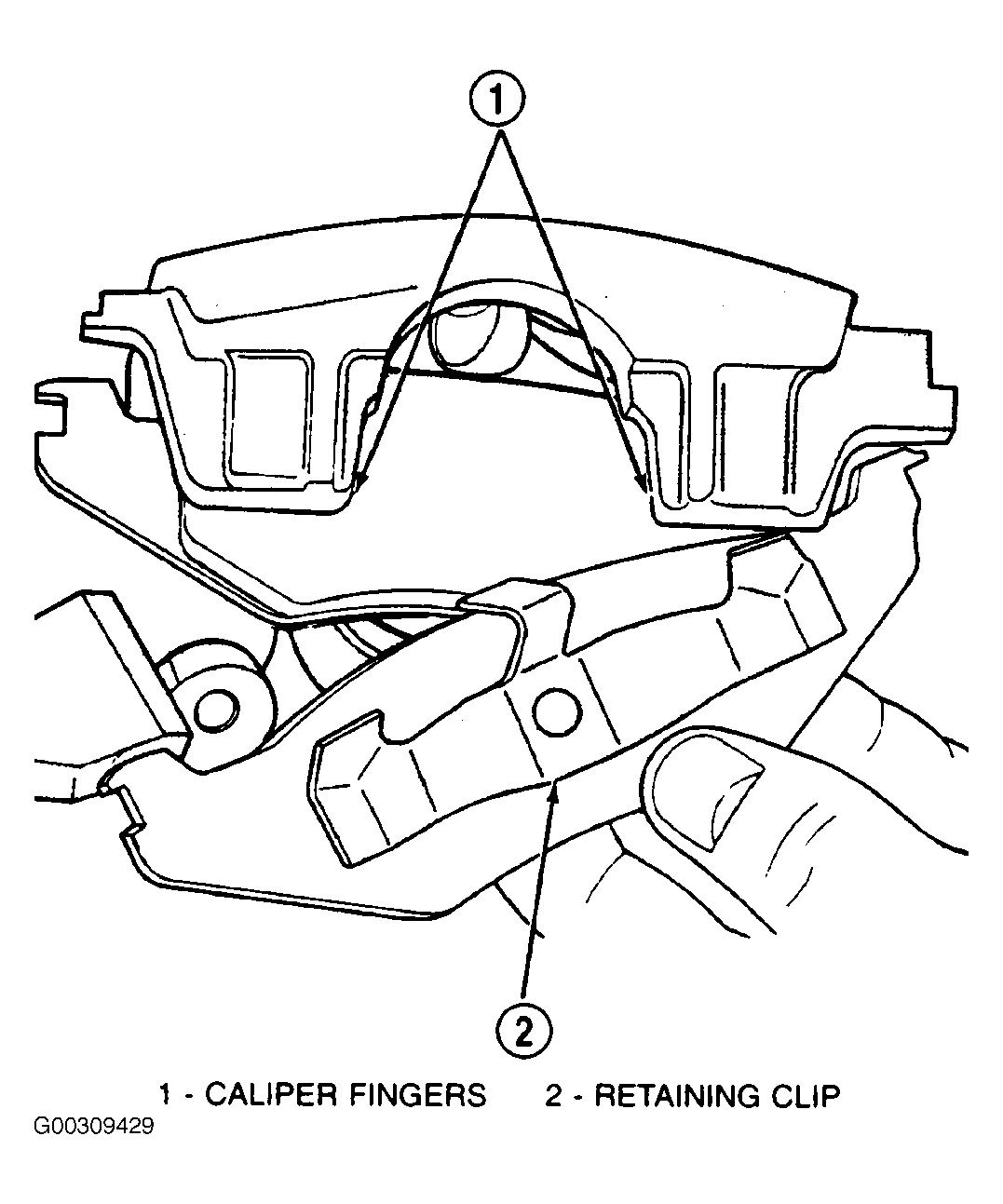

Fig 1: Removing & Installing Outboard Disc Brake Shoe (Rear)
G00309429Courtesy of CHRYSLER CORP.

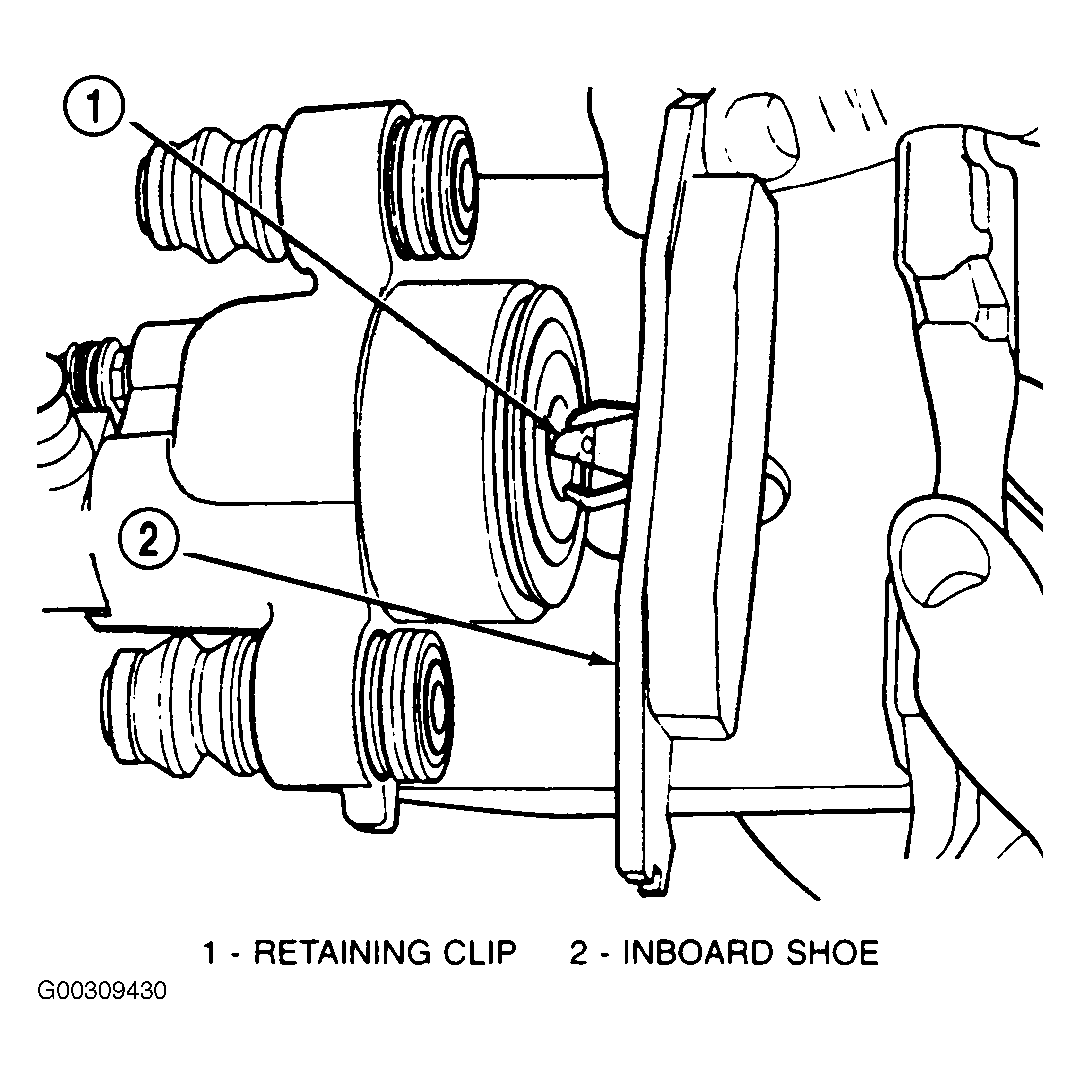

Fig 2: Removing & Installing Inboard Disc Brake Shoe (Rear)
G00309430Courtesy of CHRYSLER CORP.
