Removal (Front)

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Raise vehicle.
Remove front wheel and tire assemblies from the vehicle.
Remove caliper. See CALIPER .
Remove outboard brake shoe by prying the shoe retaining clip over raised area on caliper. Then slide the brake shoe off the caliper. See Fig 1 .
Pull inboard brake shoe away from piston until retaining clip is free from cavity in piston. See Fig 2 .

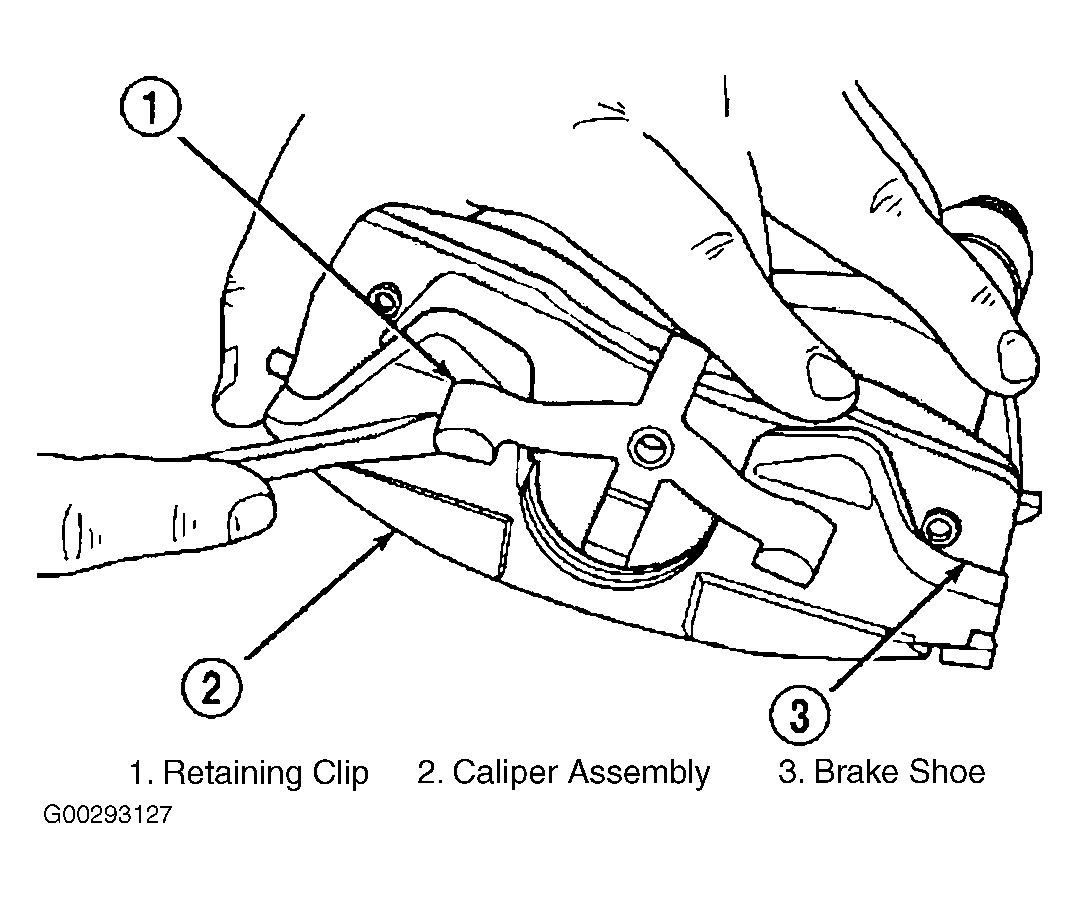

Fig 1: Removing Outboard Brake Shoe (Front)

Courtesy of CHRYSLER CORP.

Fig 2: Removing & Installing Inboard Brake Shoe (Front)

Courtesy of CHRYSLER CORP.
