Installation (Front)
WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Completely retract caliper piston back into piston bore of caliper assembly.
- Lubricate both steering knuckle abutments with a liberal amount of Mopar(R) Brake Grease For Caliper Slides Lubricant, or equivalent.
- Remove the protective paper from the noise suppression gasket on both inner and outer brake shoe assemblies (if equipped).
- Install the new inboard brake shoe assembly into the caliper piston by firmly pressing it into bore of caliper piston with thumbs. See Figure .

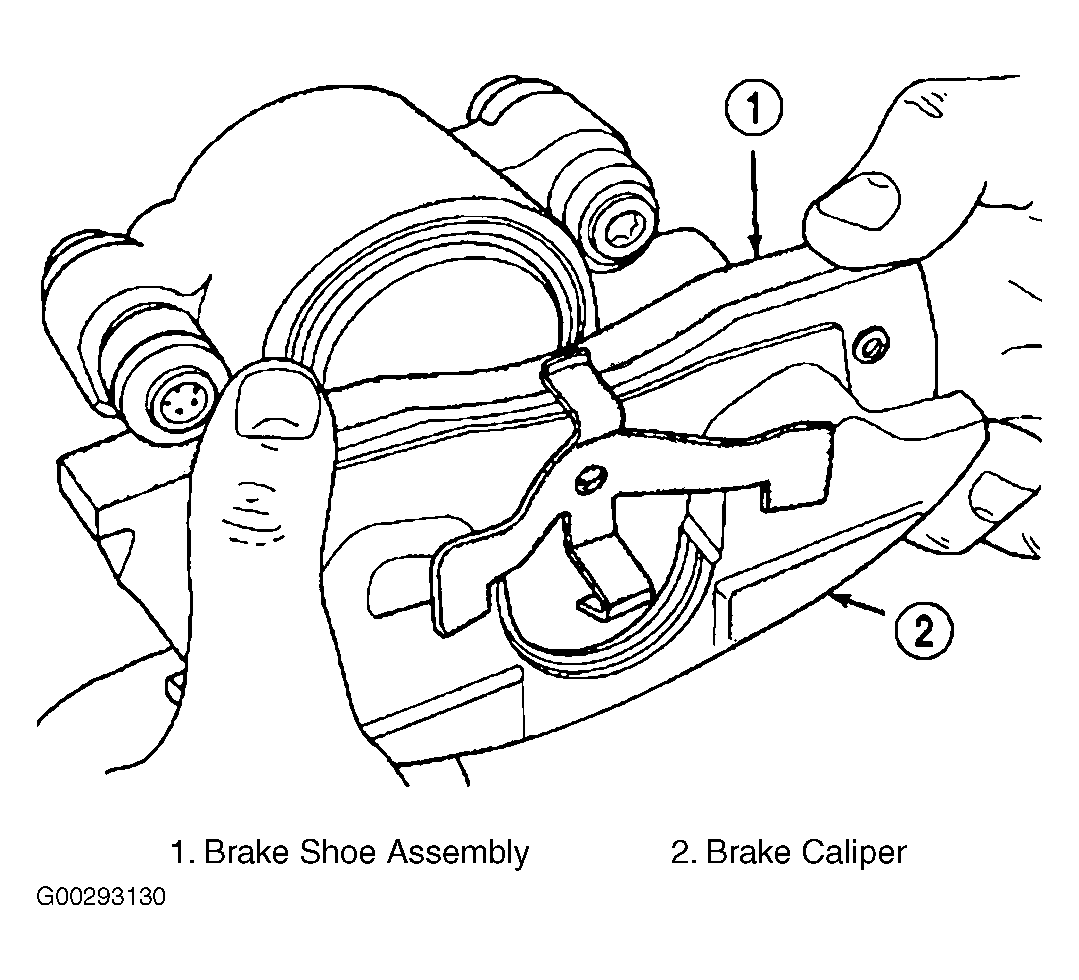

- Slide the new outboard brake shoe assembly onto the caliper assembly. See Fig 2 .
- Install one rail shim on each machined abutment where it will contact the brake shoes. Make sure the alignment tabs on the shims are positioned toward the abutments.
- Install caliper. See CALIPER .
- Install wheel and tire assemblies. See TORQUE SPECIFICATIONS .
- Lower vehicle.
- Pump the brake pedal several times to ensure the vehicle has a firm brake pedal to adequately stop vehicle.
- Check and adjust brake fluid level as necessary. See CHECKING & FILLING under BRAKES in SERVICE.
- Road test the vehicle and make several stops to wear off any foreign material on the brakes and to seat the brake shoe linings.
NOTE:

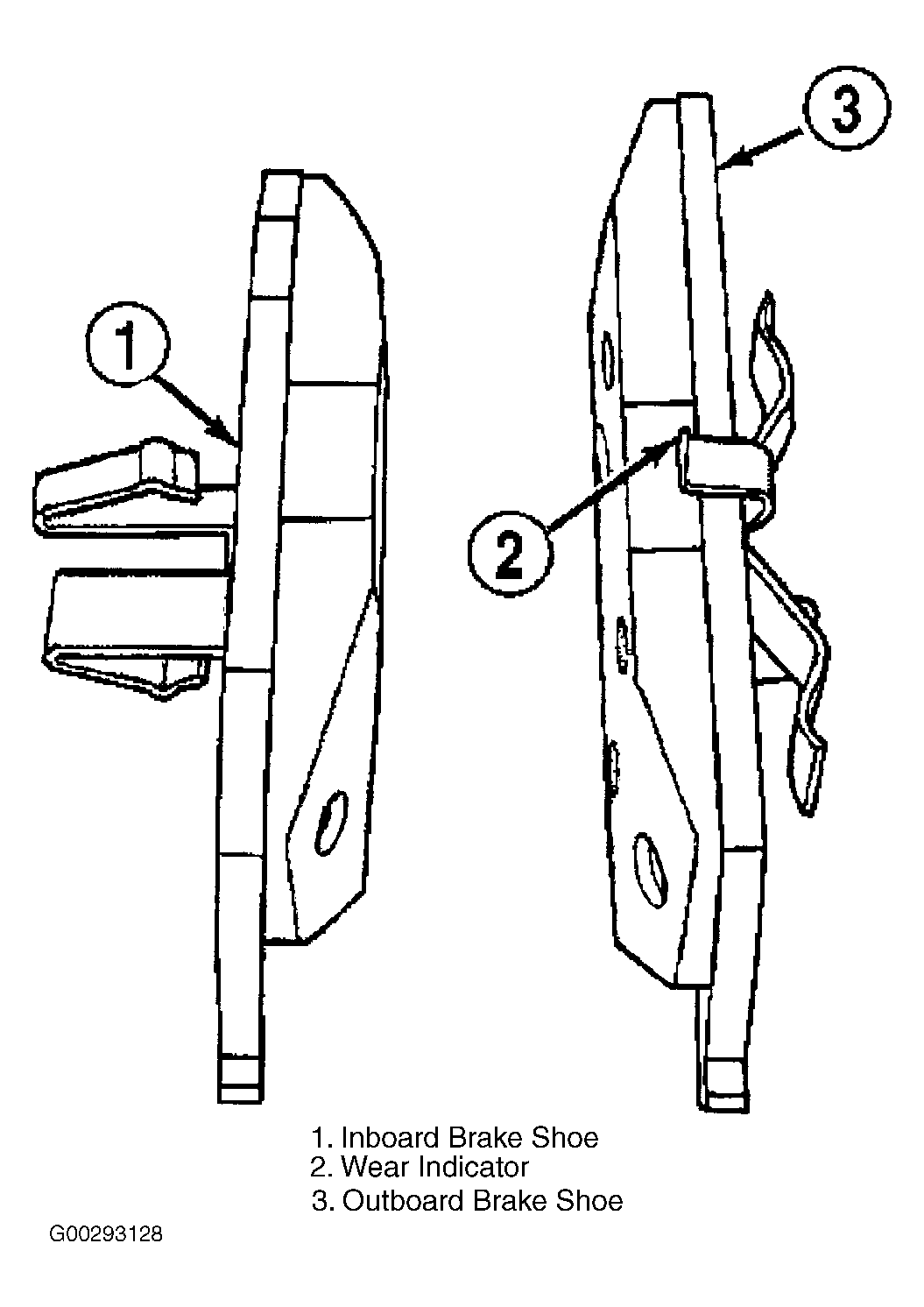

The inboard and outboard brake shoes are not similar. For inboard and outboard brake shoe identifications, see Fig 1
. When installing inboard brake shoe into caliper piston, be sure brake shoe is positioned squarely against the face of the caliper piston.
WARNING:
After performing service to the vehicle brake system, be sure to obtain a firm brake pedal before moving vehicle.
