Removal (Rear)

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle.
  2. Remove rear wheel and tire assemblies.
  3. Remove the 2 caliper assembly-to-adapter guide pin bolts. See Fig 1 .
  4. Remove caliper from adapter. First rotate top of caliper away from adapter. Then lift the caliper off the bottom abutment on the adapter. See Fig 2 .
  5. Support caliper assembly firmly from rear strut to prevent weight of caliper from damaging the flex brake hose. See Fig 3 .
  6. Remove rear rotor. See ROTOR  .

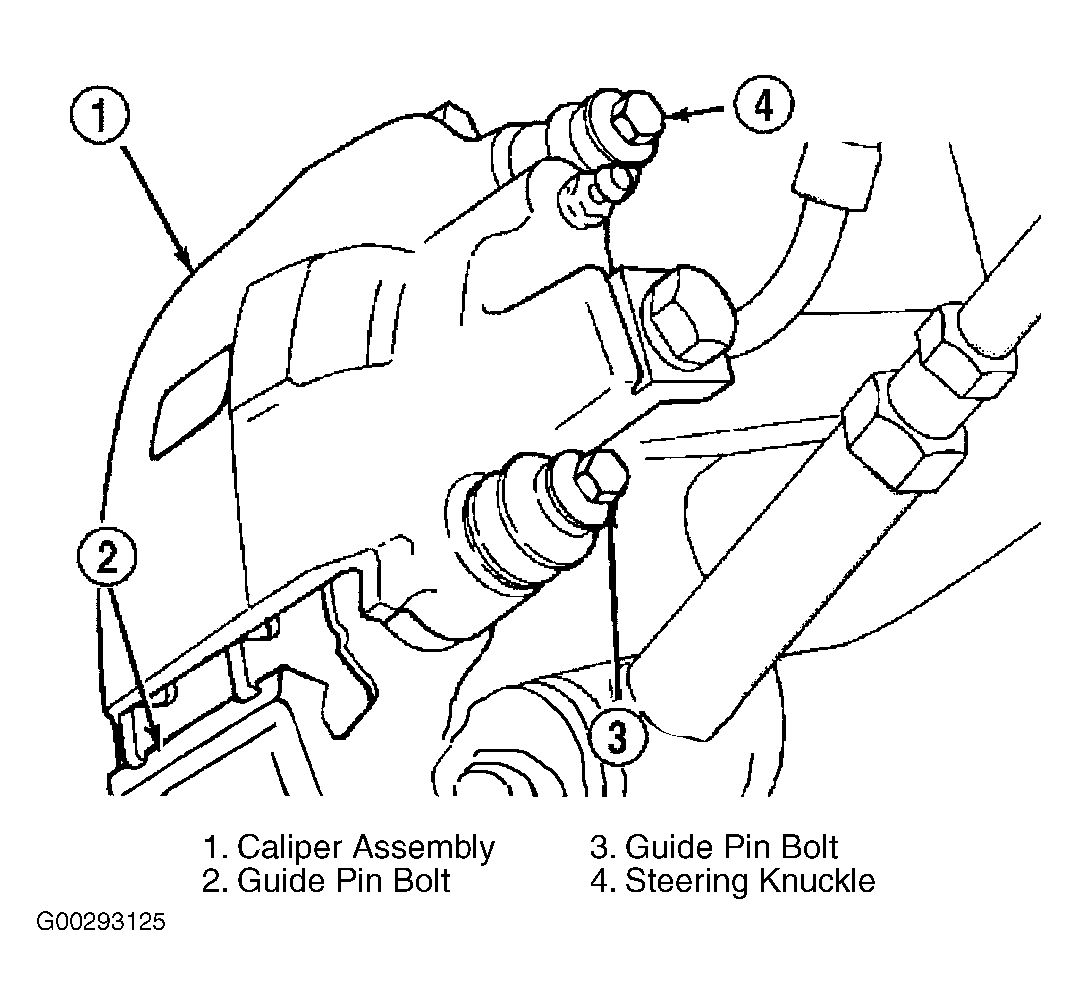

Fig 1: Removing & Installing Rear Caliper (1 Of 2)
G00293125Courtesy of CHRYSLER CORP.
Fig 2: Removing & Installing Rear Caliper (2 Of 2)
G00293149Courtesy of CHRYSLER CORP.

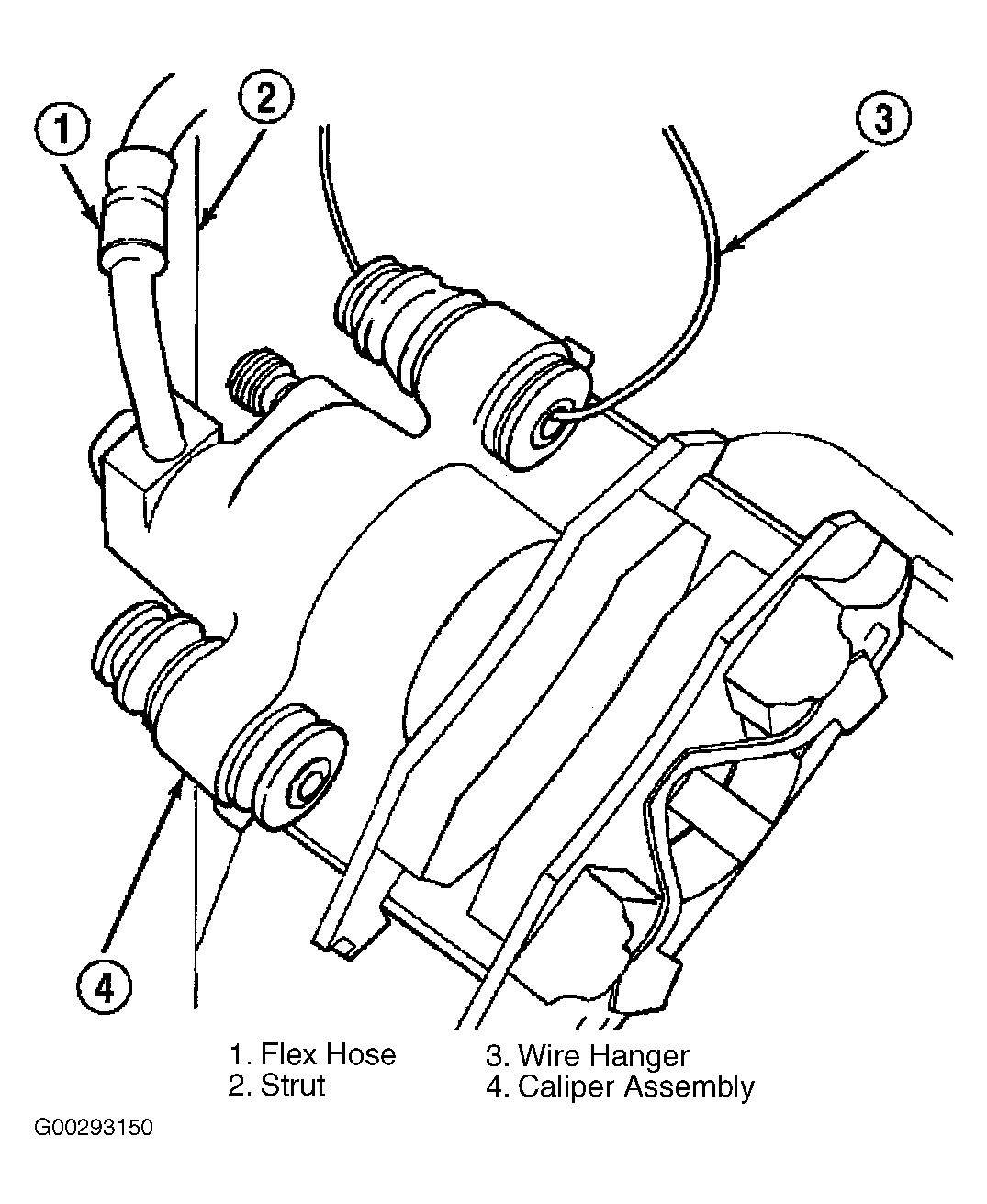

Fig 3: Storing Caliper
G00293150Courtesy of CHRYSLER CORP.
