Brake Fluid Reservoir: Removal

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove master cylinder from the power brake booster. See MASTER CYLINDER  .
  2. Using an appropriate cleaner such as Mopar(R) Brake Parts Cleaner, clean the master cylinder housing and brake fluid reservoir.
  3. Remove the filler cap and empty all brake fluid from reservoir.
  4. Clamp the master cylinder in vise.
  5. Remove the 2 fluid reservoir to master cylinder retaining pins. See Fig 1 .
  6. Remove reservoir from master cylinder by pulling upward on the reservoir while rocking it from side-to-side. See Fig 2 .
  7. Remove the master cylinder housing-to-reservoir grommets. See Fig 3 .
Fig 1: Removing & Installing Reservoir Retaining Pins
G00293153Courtesy of CHRYSLER CORP.

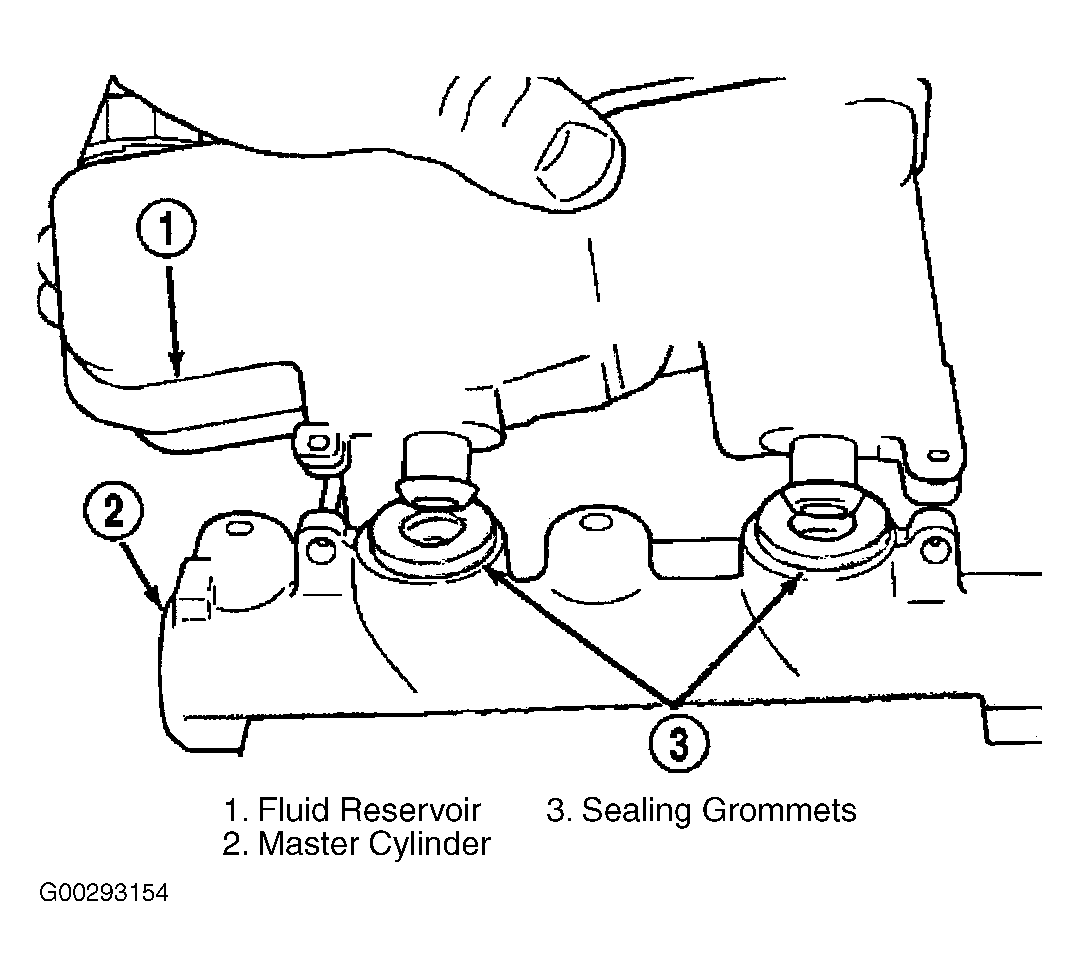

Fig 2: Removing & Installing Brake Fluid Reservoir
G00293154Courtesy of CHRYSLER CORP.
Fig 3: Removing & Installing Reservoir Sealing Grommets
G00293155Courtesy of CHRYSLER CORP.
