Radiator Fan Relay Harness Connector End View (At Fan; Except 2.7L Base)

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

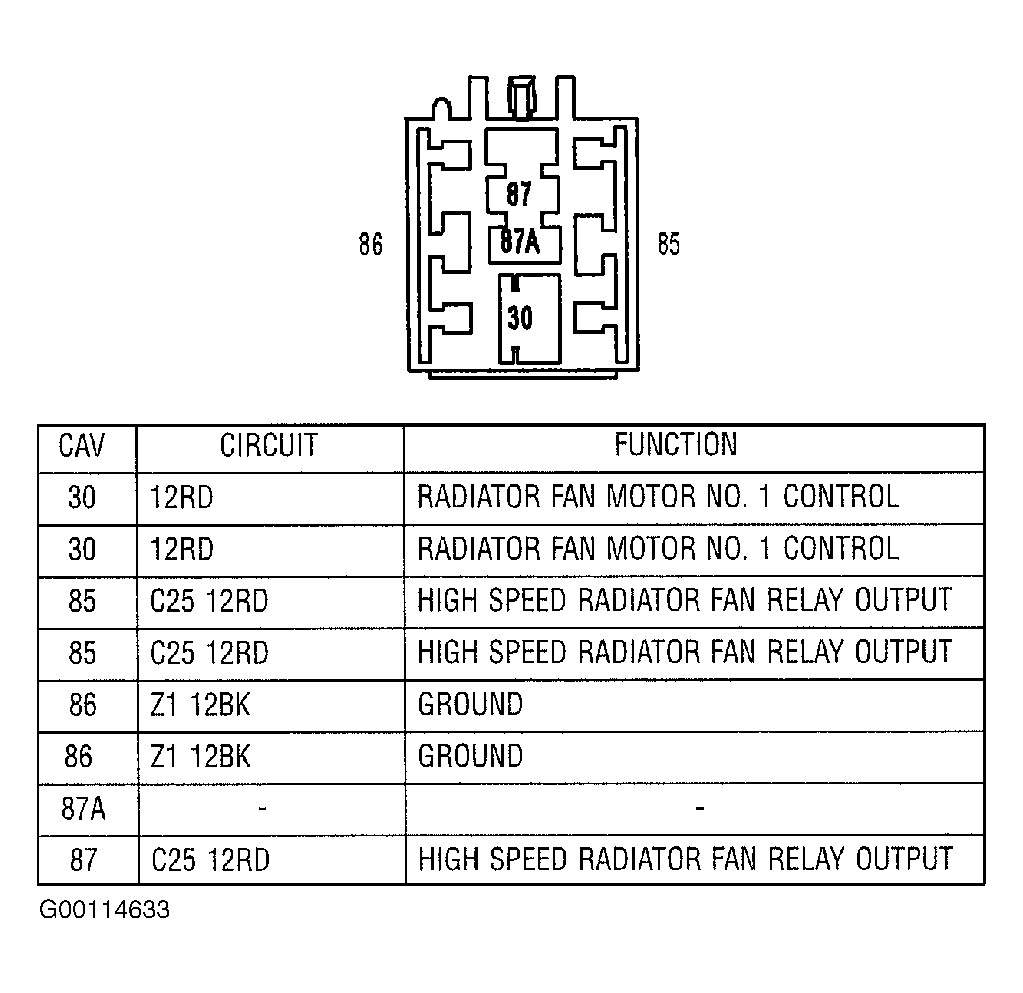

Fig 1: Identifying Radiator Fan Relay No. 1 Harness Connector (At Fan; Except 2.7L Base)
G00114633Courtesy of DAIMLERCHRYSLER CORPORATION

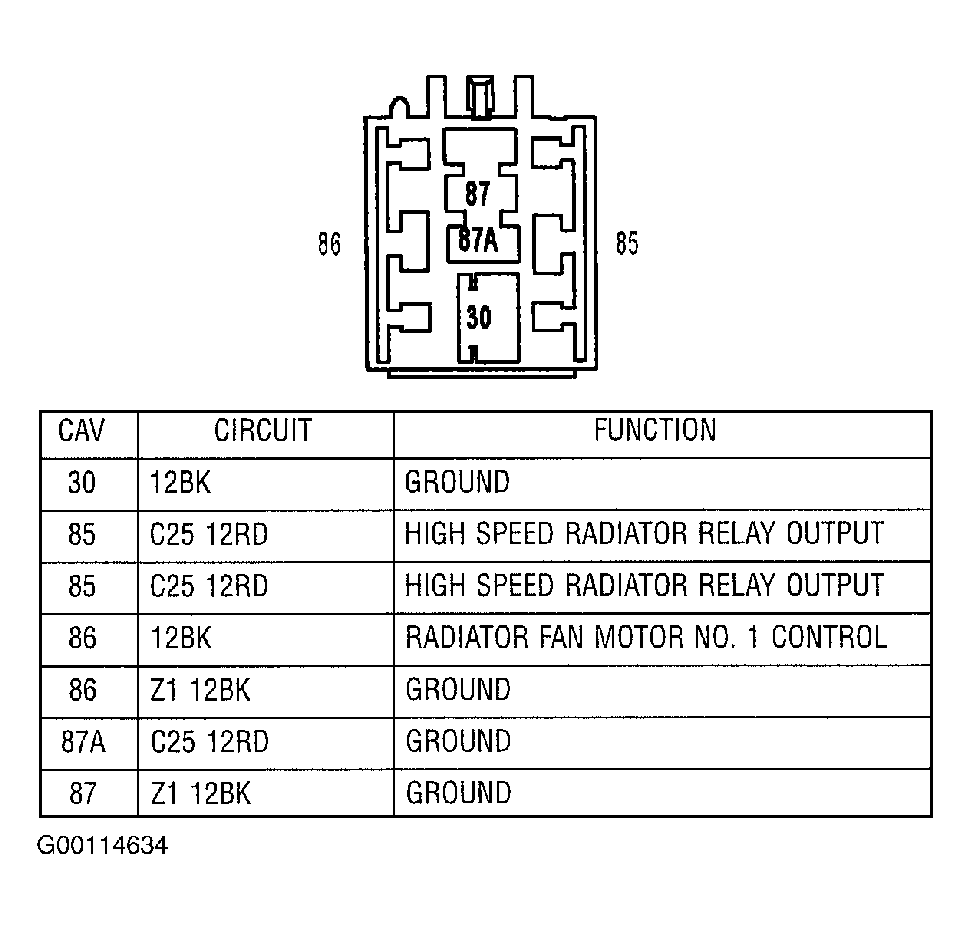

Fig 2: Identifying Radiator Fan Relay No. 2 Harness Connector (At Fan; Except 2.7L Base)
G00114634Courtesy of DAIMLERCHRYSLER CORPORATION
