Electronic Vehicle Information Center: Removal

WARNING: This page is about a different car, the 2003 Chrysler Concorde, 2003 Chrysler 300M, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the overhead console from the headliner. See OVERHEAD CONSOLE  .
  3. Remove the 4 screws that secure the EVIC module to the overhead console housing. See Fig 1 .
  4. Remove the EVIC module from the overhead console housing.

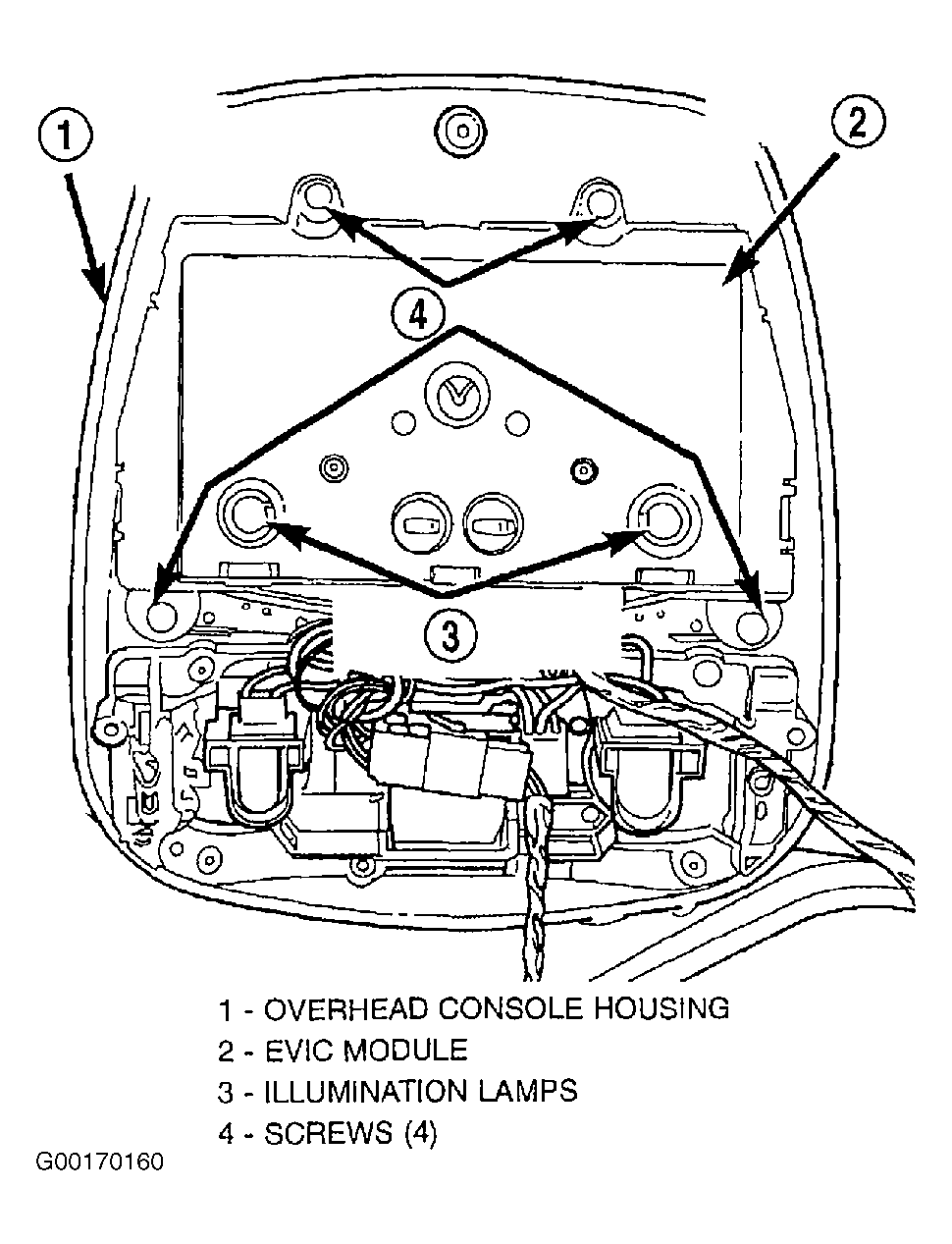

Fig 1: Removing EVIC Module From Overhead Console
G00170160Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Identifying Electronic Vehicle Information Center
G00170158Courtesy of DAIMLERCHRYSLER CORPORATION
