Removal (Rear)

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not pry on door trim panel, damage to trim panel will result.
  1. Open trim plug from the pull cup and remote bezel by inserting a small flat blade tool into the notch and lifting up.
  2. Remove screw in the pull cup.
  3. Remove screw in remote bezel.
  4. Remove three screws from the bottom edge of door. See Fig 1 .
    5. NOTE: Clips are reusable up to three times.
  5. Using a trim tool, disengage the retaining clips from the door trim panel to the sheet metal inner panel, two clips at the rear of panel and one at the front of the panel. See Fig 2 .
  6. Raise trim panel up over the door flange and being careful to hold the panel securely.
  7. Disconnect the remote linkage from the door remote handle.
  8. Remove the wire connect from the rear door speaker, if equipped.
  9. Disconnect power window switch wire connector.
  10. Disconnect wiring harness clips from the trim panel.
  11. Disconnect the courtesy lamp, if equipped.
  12. Remove trim pane1 from door.

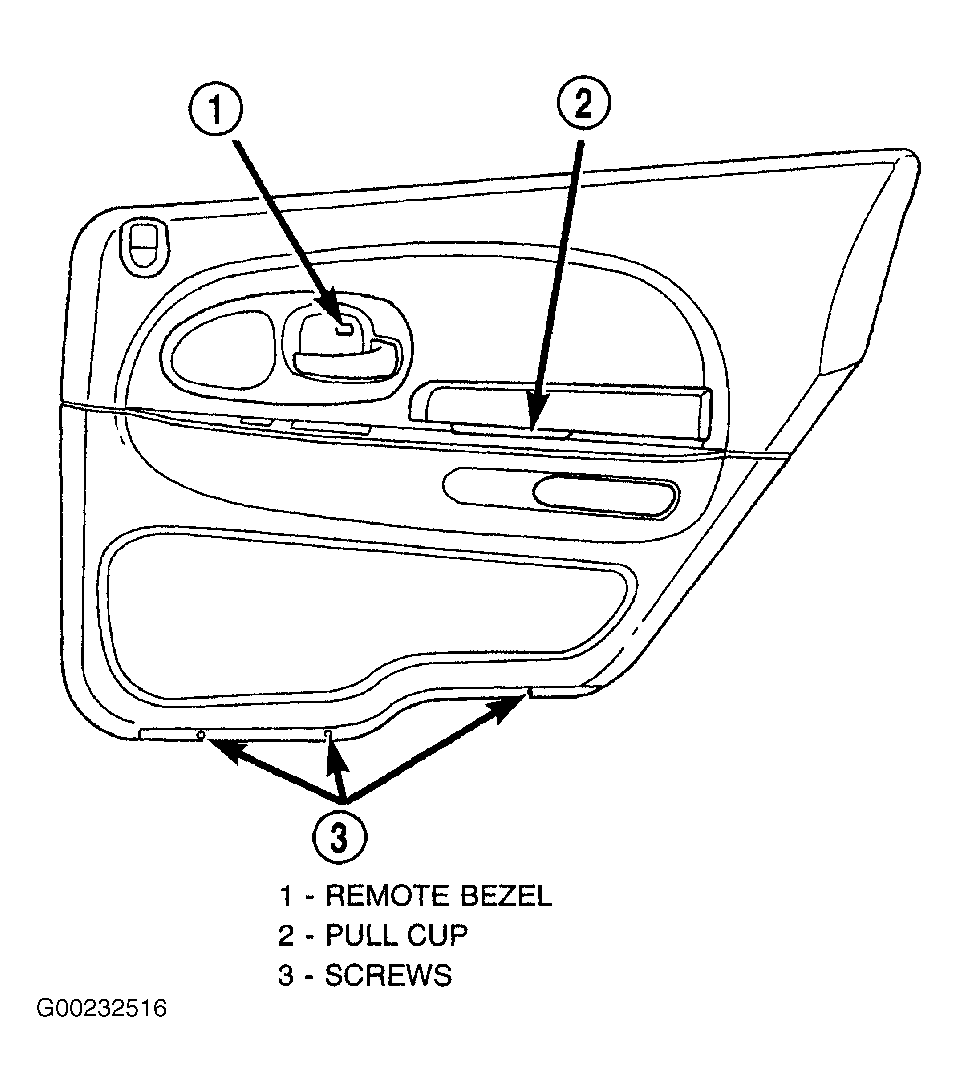

Fig 1: Removing Rear Door Trim Panel
G00232516Courtesy of CHRYSLER CORP.

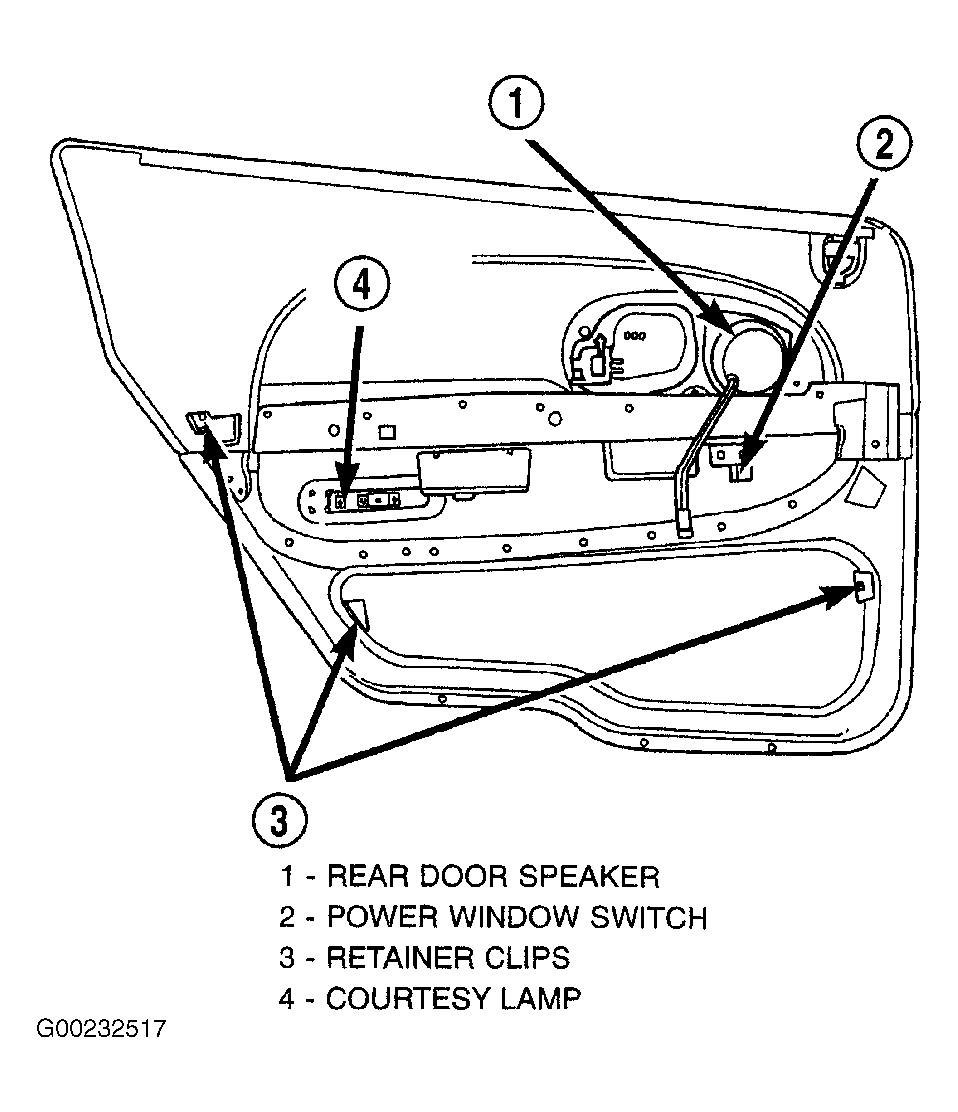

Fig 2: Removing Rear Door Inner Trim Panel
G00232517Courtesy of CHRYSLER CORP.
