Removal (Front)
WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not pry on door trim panel, damage to trim panel will result.
- Remove speaker flag and housing. See SIDE VIEW MIRROR FLAG .

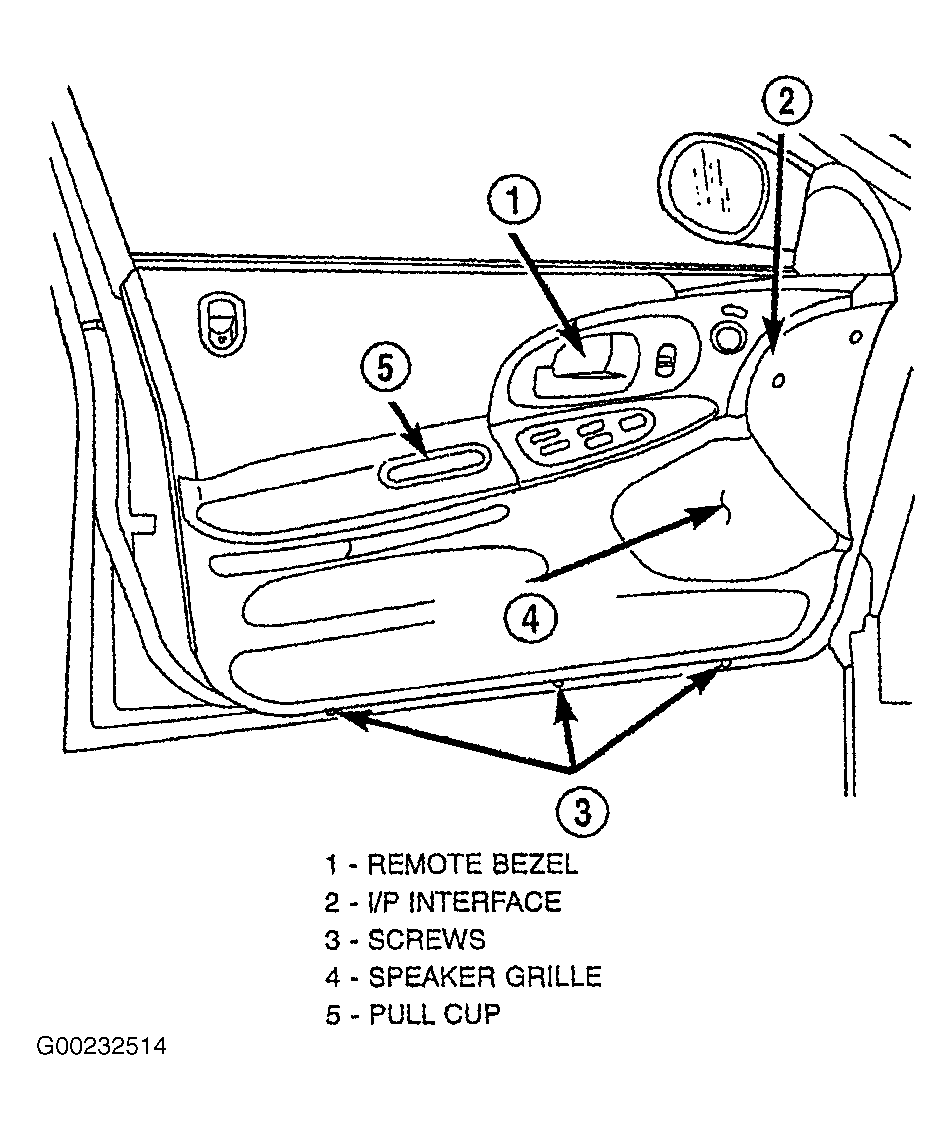

- Remove speaker grille by inserting trim tool at the rear of the grille and disengaging tabs holding to trim pane1. Remove grille See Fig 1 .
- Open trim plug from the pull cup and remote bezel by inserting a small flat blade tool into the notch and lifting up.
- Remove 3 screws from bottom of door.
- Remove screw in pull cup.
- Remove screw in remote bezel.
- Remove 2 screws in the instrument panel interface area.
- Remove 3 screws in the speaker area.
- Using a trim tool, disengage the two retainer clips at rear of panel from the door trim panel to the sheet metal inner panel.
- Raise trim panel up to disengage from the belt being careful to hold the panel securely.

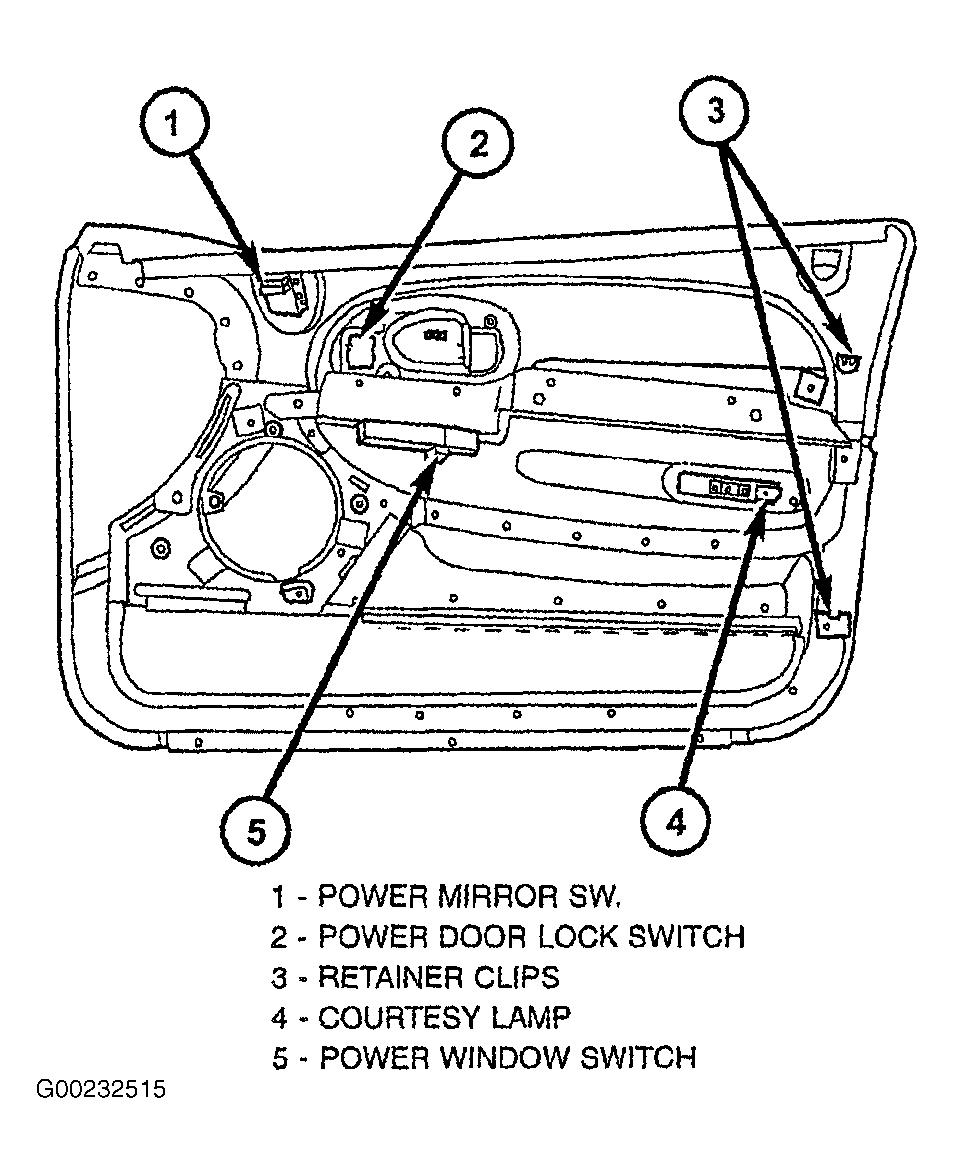

- Disconnect the linkage from the remote handle assembly See Fig 2 .
- Disconnect the power mirror switch.
- Disconnect the power door lock switch wire connector.
- Disconnect the power window switch wire connector.
- Disconnect the radio speaker wire connector.
- Disconnect wiring harness clips from trim panel.
- Disconnect the courtesy lamp, if equipped.
- Remove trim panel from vehicle. To install, reverse the removal procedure.
NOTE:
Door trim clips are reusable up to 3 times, then should be replaced.
