Trunk Lid Latch

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Adjust trunk lid latch and striker so trunk latches with a moderate slam. See Fig 1 . Push trunk release switch with ignition switch in ON or ACC position, trunk should unlatch. If latch fails to lock or unlock, replace latch assembly. See PRETEST INSPECTION  under TROUBLE SHOOTING.

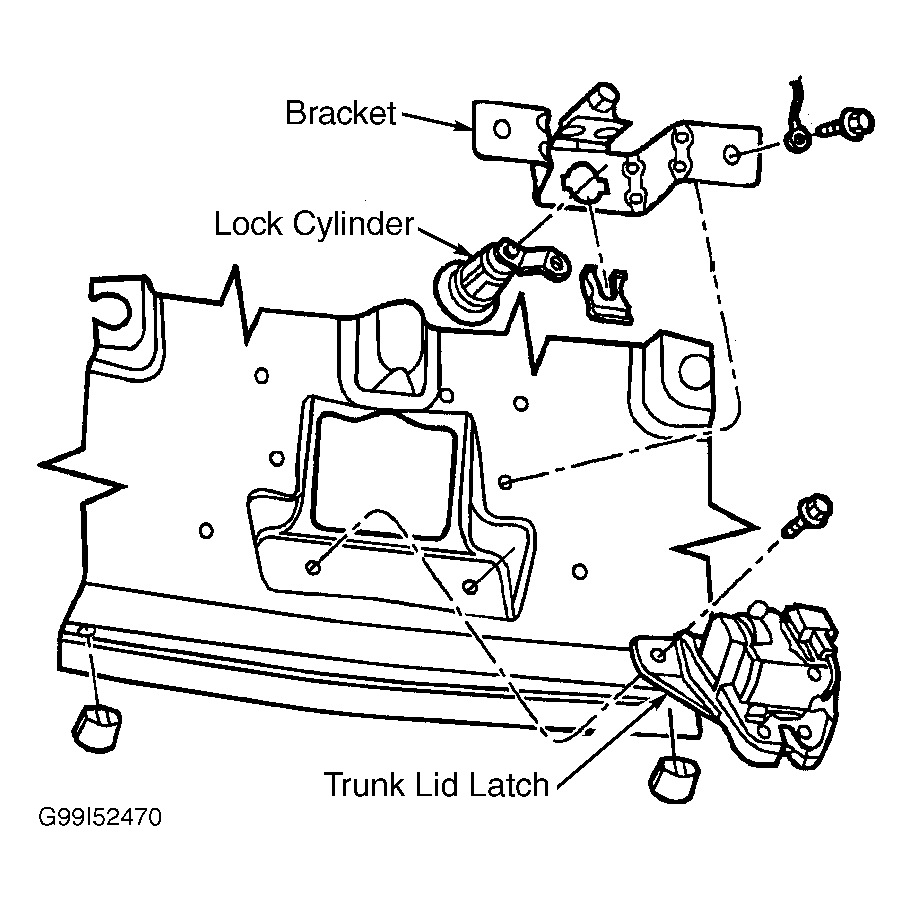

Fig 1: Identifying Trunk Lid Lock Cylinder Switch Components (Intrepid Shown; Concorde & 300M Are Similar)
G99I52470Courtesy of DAIMLERCHRYSLER CORP.
