Removal & Installation (2.7L)
WARNING: This page is about a different car, the 2002 Dodge Stratus and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

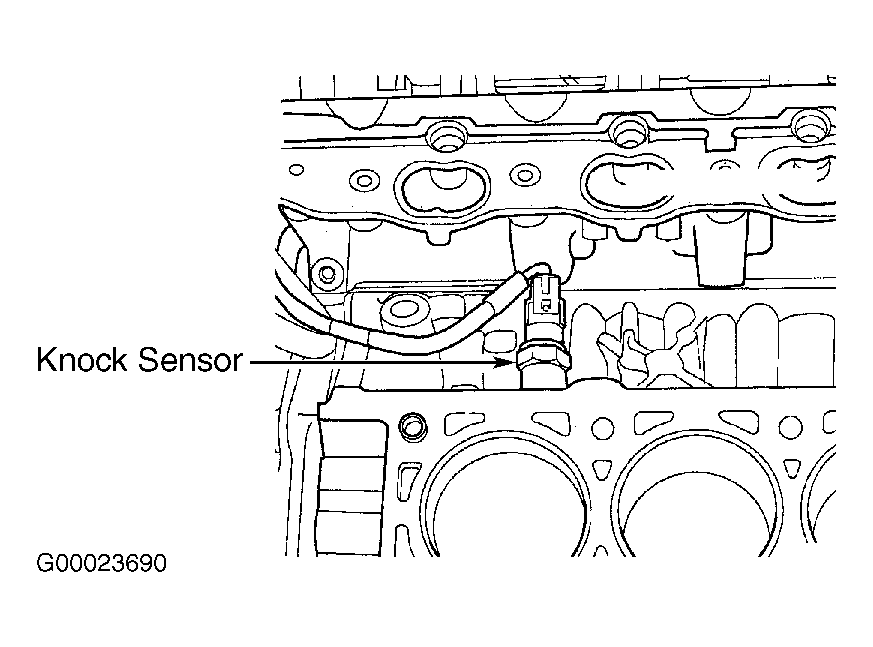

- Knock sensor is located on cylinder block, below lower intake manifold. See Fig 1. Manufacturer states it is necessary to remove passenger's side cylinder head for servicing of knock sensor. See appropriate article in ENGINES.
- Disconnect knock sensor harness connector. Remove knock sensor from cylinder block. To install, reverse removal procedure. Tighten knock sensor to specification. See TORQUE SPECIFICATIONS .CAUTION: Over or under tightening sensor effects knock sensor performance resulting in possible improper spark control.
