Removal & Installation (2.4L)

WARNING: This page is about a different car, the 2002 Dodge Stratus and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Knock sensor is located on side of cylinder block, in front of starter. See Fig 1. Disconnect knock sensor harness connector. Using a crowfoot socket, remove knock sensor.
To install, reverse removal procedure. Tighten knock sensor to specification. See TORQUE SPECIFICATIONS .
CAUTION: Over or under tightening sensor effects knock sensor performance resulting in possible improper spark control.

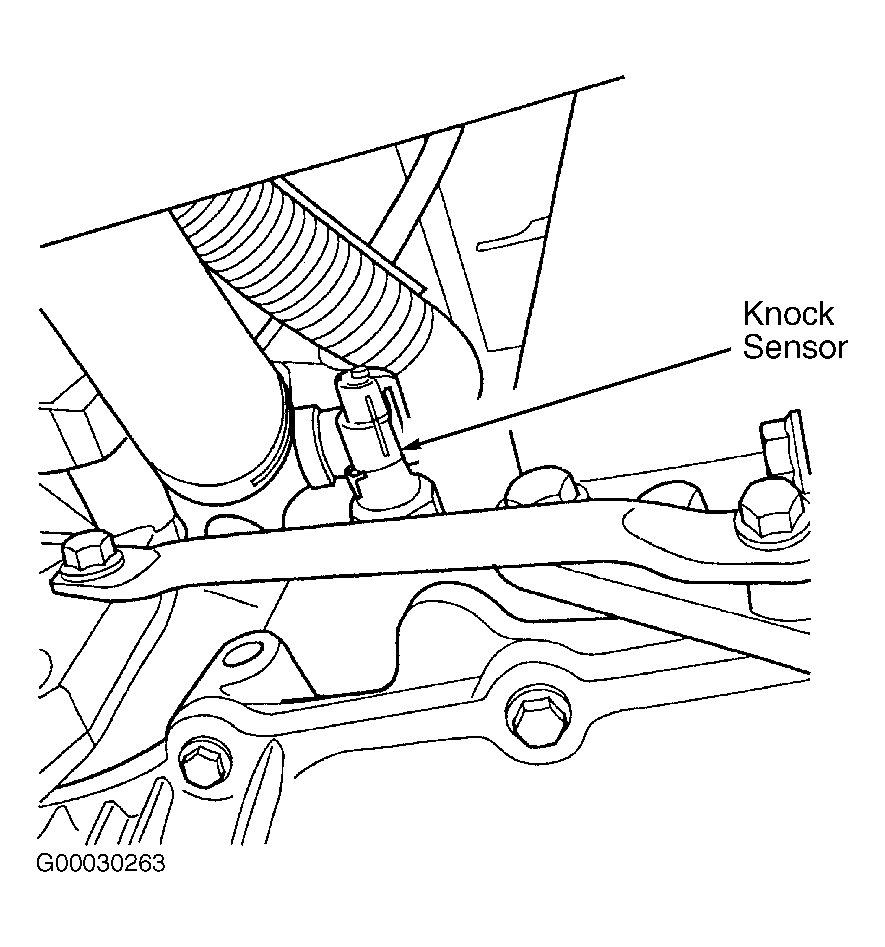

Fig 1: Locating Knock Sensor (2.4L)

Courtesy of DAIMLERCHRYSLER CORPORATION
