Removal & Installation (2.4L)
WARNING: This page is about a different car, the 2002 Dodge Stratus and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

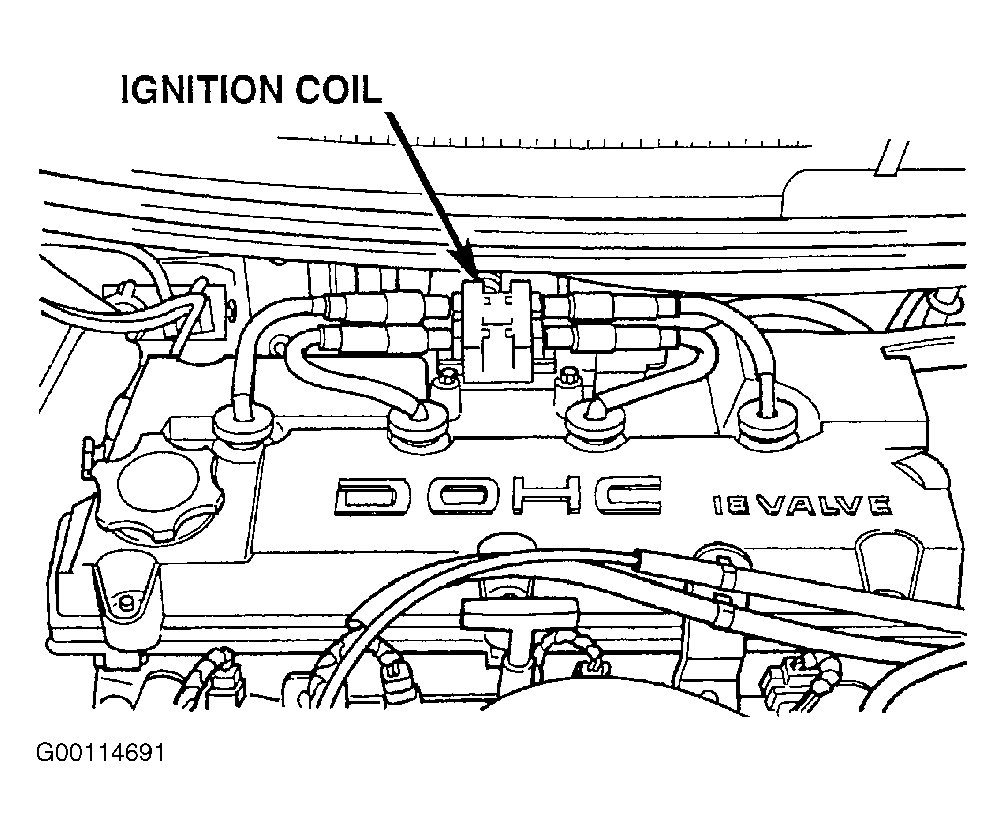

- Ignition coil is mounted on valve cover. See Fig 1. Disconnect ignition coil harness connector. Using a twisting motion, remove spark plug cables for coil. Remove ignition coil mounting bolts. Remove ignition coil from valve cover.
- To install, position ignition coil on valve cover. Install mounting bolts and tighten to specification. See TORQUE SPECIFICATIONS . Transfer spark plug wires to new ignition coil.
