Removal & Installation (2.7L)

WARNING: This page is about a different car, the 2002 Dodge Stratus and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. The Crankshaft Position (CKP) sensor is located on the rear of the transaxle housing, above the differential housing. See Fig 1. Disconnect negative battery cable. Remove air cleaner.
  2. Disconnect CKP sensor harness connector. Remove bolt and CKP sensor. To install, reverse removal procedure. Tighten CKP sensor bolt.

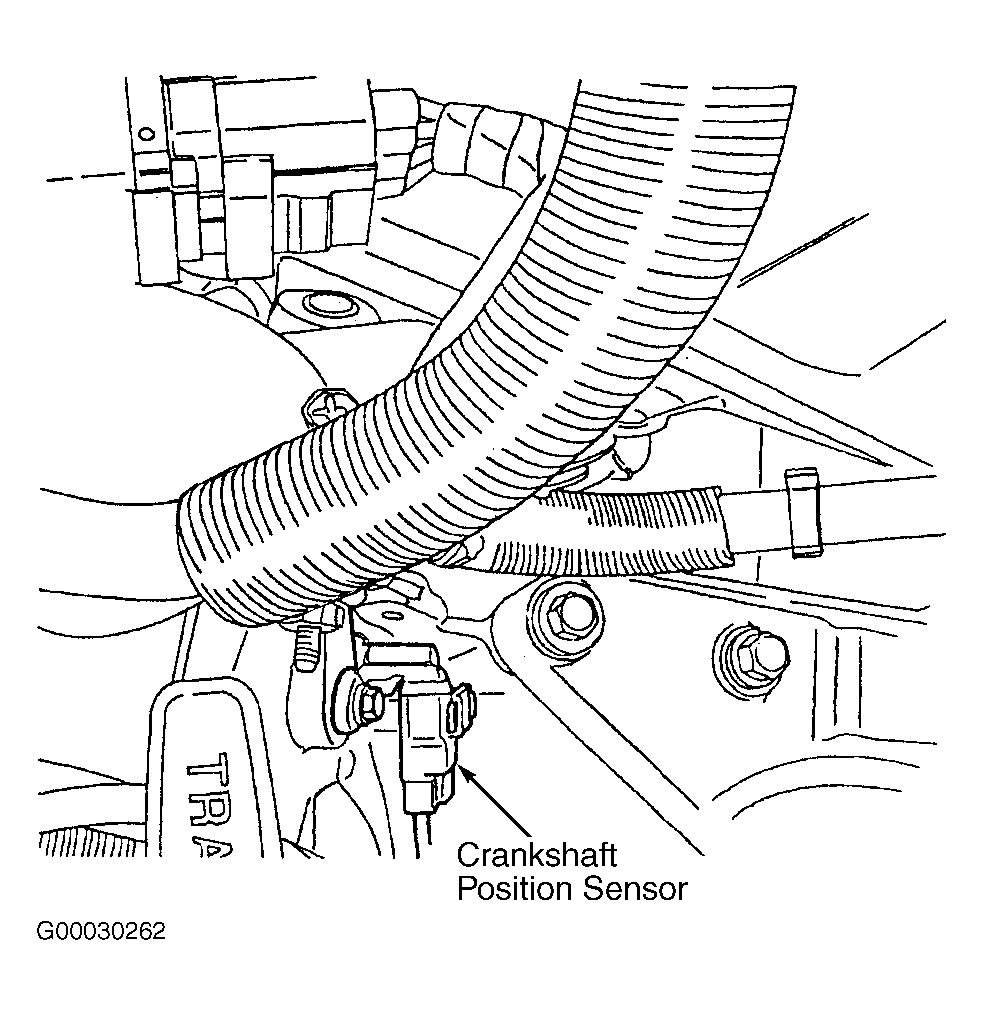

Fig 1: Locating CKP Sensor (2.7L)
G00030262Courtesy of DAIMLERCHRYSLER CORPORATION
