Removal & Installation (2.4L)
WARNING: This page is about a different car, the 2002 Dodge Stratus and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

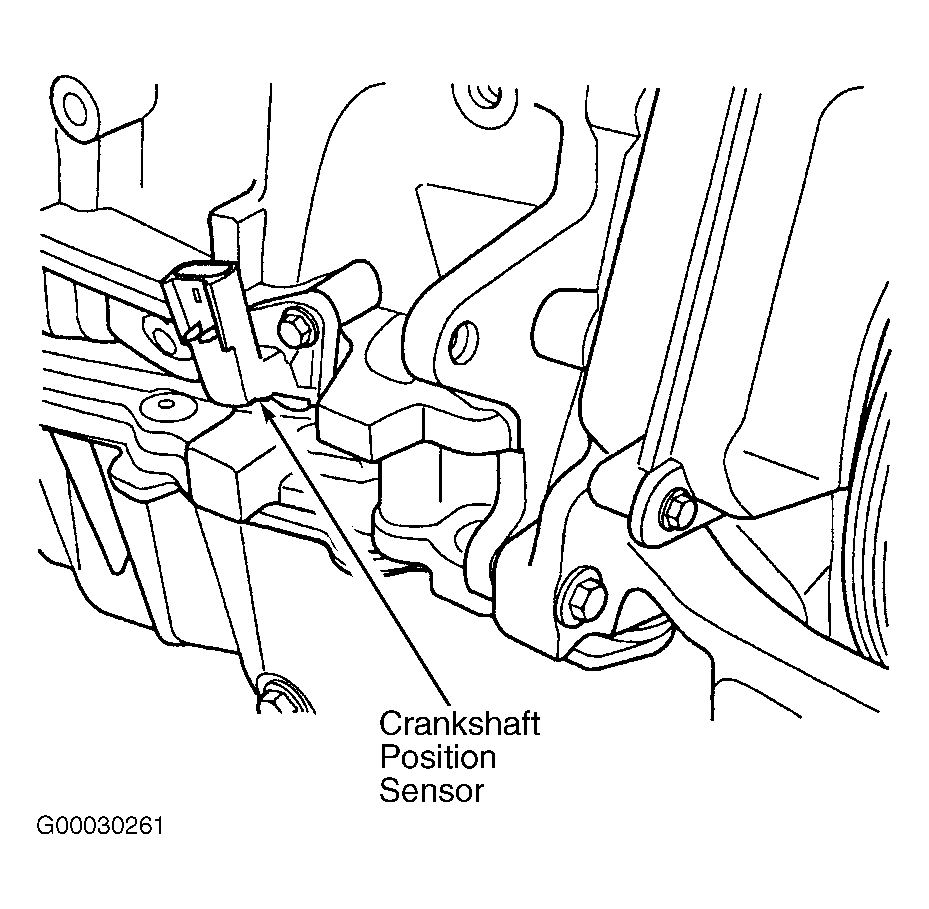

- The Crankshaft Position (CKP) sensor is located on side of cylinder block, just above oil filter. See Fig 1. Disconnect negative battery cable. Raise and support vehicle.
- Disconnect CKP sensor harness connector. Remove bolt and crankshaft position sensor. To install, reverse removal procedure. Tighten bolt for crankshaft position sensor.
