Removal (2.4L)

WARNING: This page is about a different car, the 2002 Dodge Stratus and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

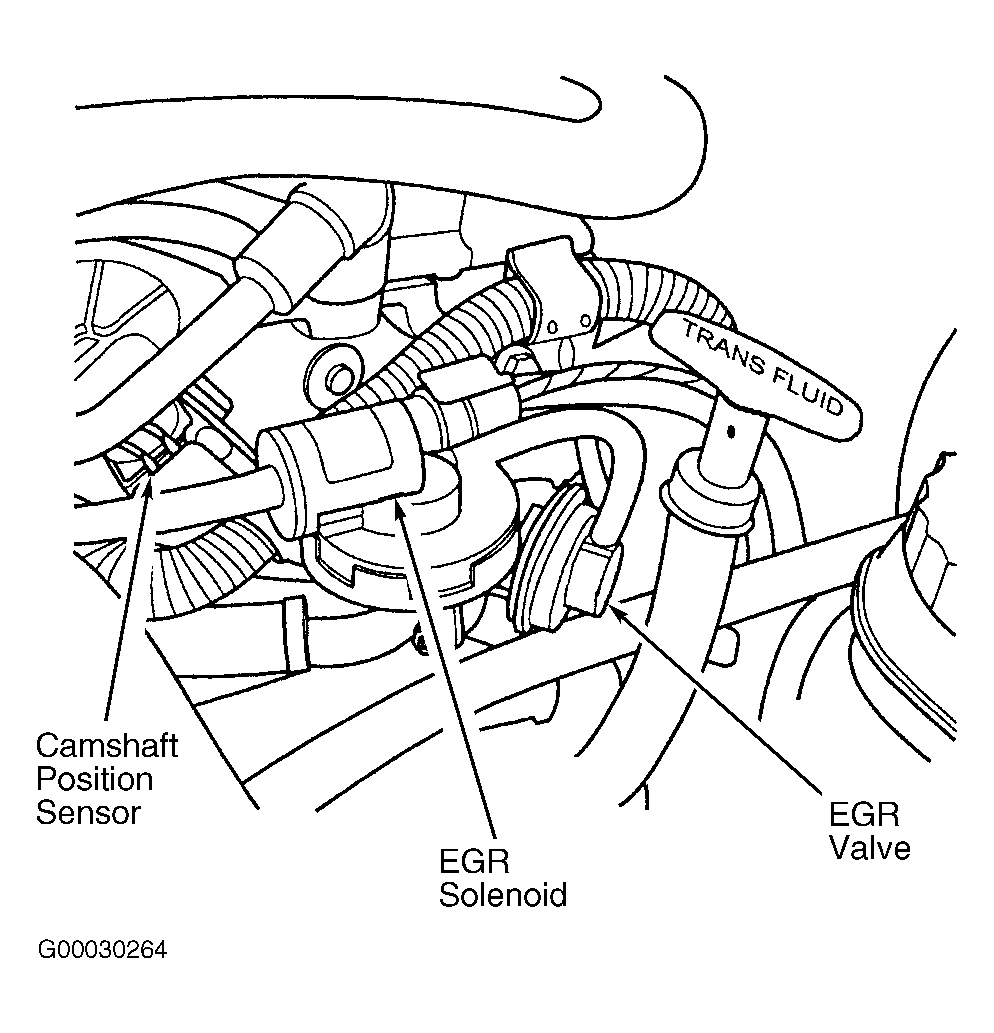

Camshaft Position (CMP) sensor is located on rear of cylinder head. See Figure. Disconnect negative battery cable. Disconnect hose from PCV valve and set aside. Disconnect CMP sensor harness connector. Remove CMP sensor bolt and CMP sensor. Loosen target magnet bolt. Remove target magnet. See Figure.
