Fuel Pump Module: Removal

WARNING: This page is about a different car, the 2002 Dodge Stratus and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Fuel pump module is located on top of fuel tank. See Fig 1. Fuel tank must be removed for servicing of fuel pump module. Remove fuel tank. See FUEL TANK .
CAUTION: When removing fuel pump module from fuel tank, use care, as reservoir on fuel pump module may still contain some gasoline.
Ensure area around fuel pump module is clean. Using Fuel Pump Module Lock Nut Spanner Wrench (6856), remove fuel pump module lock nut. See Fig 2. Reservoir on fuel pump module may still contain some gasoline. Remove fuel pump module from fuel tank. Remove "O" ring from sealing area on shoulder of fuel tank.

Fig 1: Locating Fuel Pump Module & EVAP Components

Courtesy of DAIMLERCHRYSLER CORPORATION

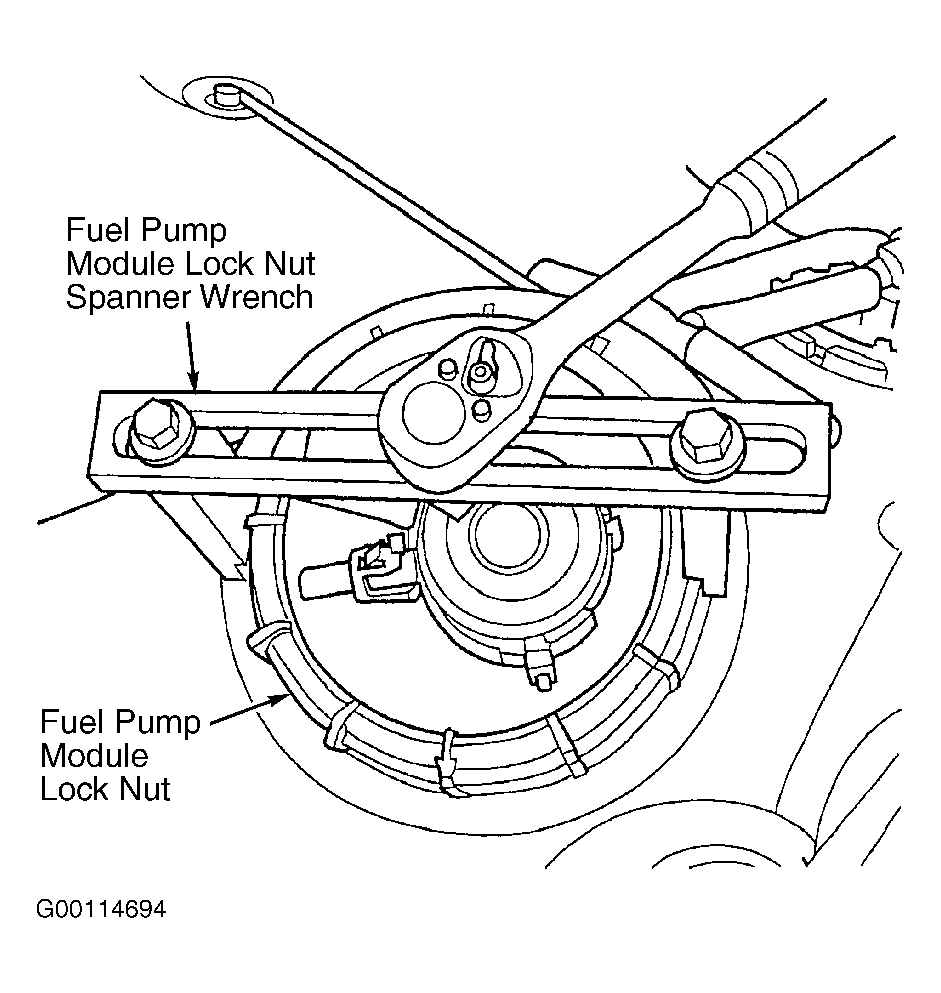

Fig 2: Removing & Installing Fuel Pump Module Lock Nut

Courtesy of DAIMLERCHRYSLER CORPORATION
