Removal & Installation

WARNING: This page is about a different car, the 2002 Dodge Stratus and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

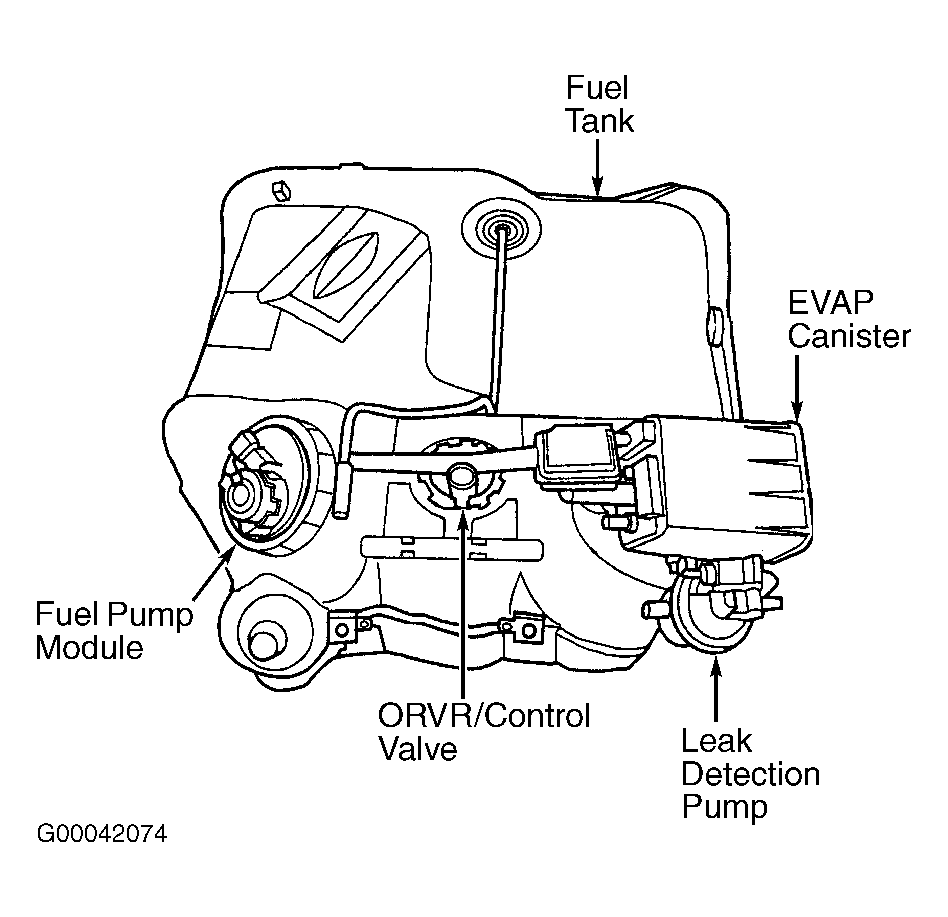

Leak Detection Pump (LDP) is located on fuel tank. See Figure. Remove fuel tank. See FUEL TANK  under FUEL SYSTEMS. Disconnect hoses from EVAP canister. Remove LDP from EVAP canister. To install, reverse removal procedure.
