Removal & Installation (3.5L)

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Manifold Tuning Valve (MTV) is located on front of engine. See Fig 1. Disconnect negative battery cable at remote battery terminal on passenger's side strut tower.
  2. Disconnect MTV harness connector. Remove MTV mounting bolts and MTV. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .

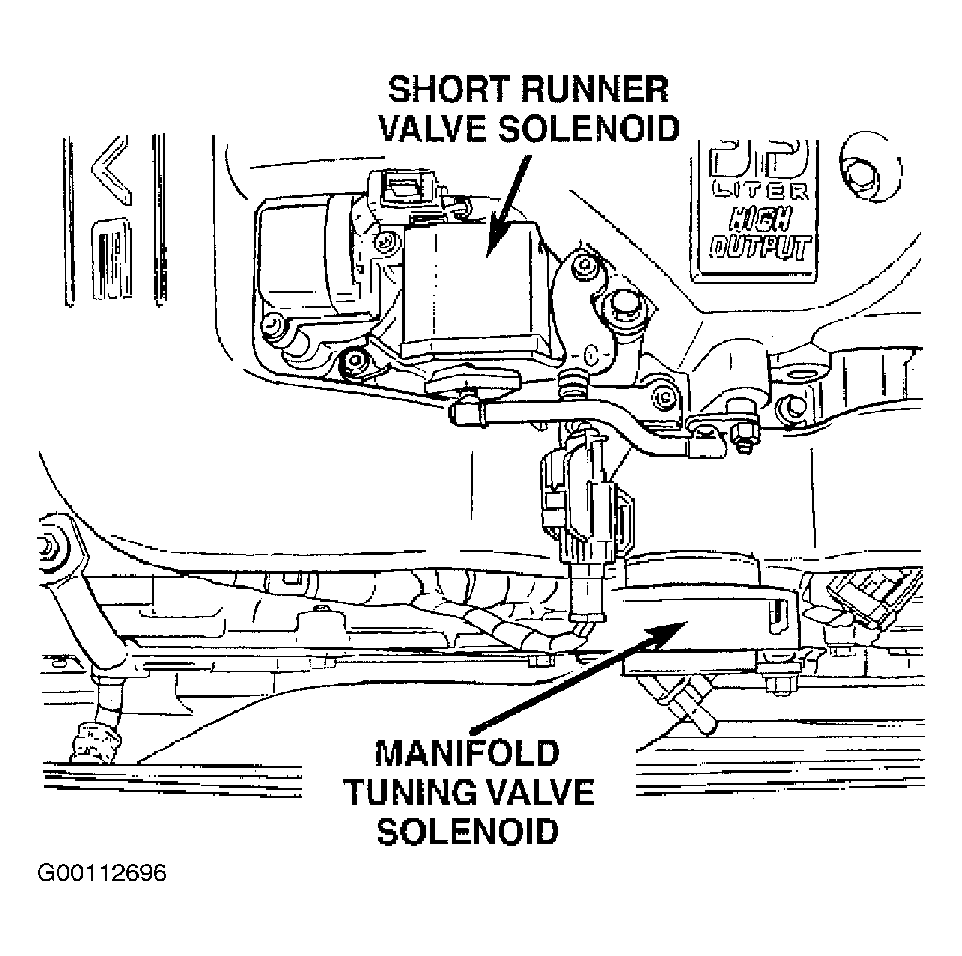

Fig 1: Locating Manifold Tuning Valve Solenoid & Short Runner Valve Solenoid (3.5L)
G00112696Courtesy of DAIMLERCHRYSLER CORPORATION
