Installation (All)

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, ensure fuel line and disconnect fitting are clean. Lubricate fuel line and disconnect fitting with small amount of engine oil. Install disconnect fitting on fuel line until click sound is heard.
    CAUTION: After installing fuel line, ensure fuel line is secured in place by pulling on fuel line.

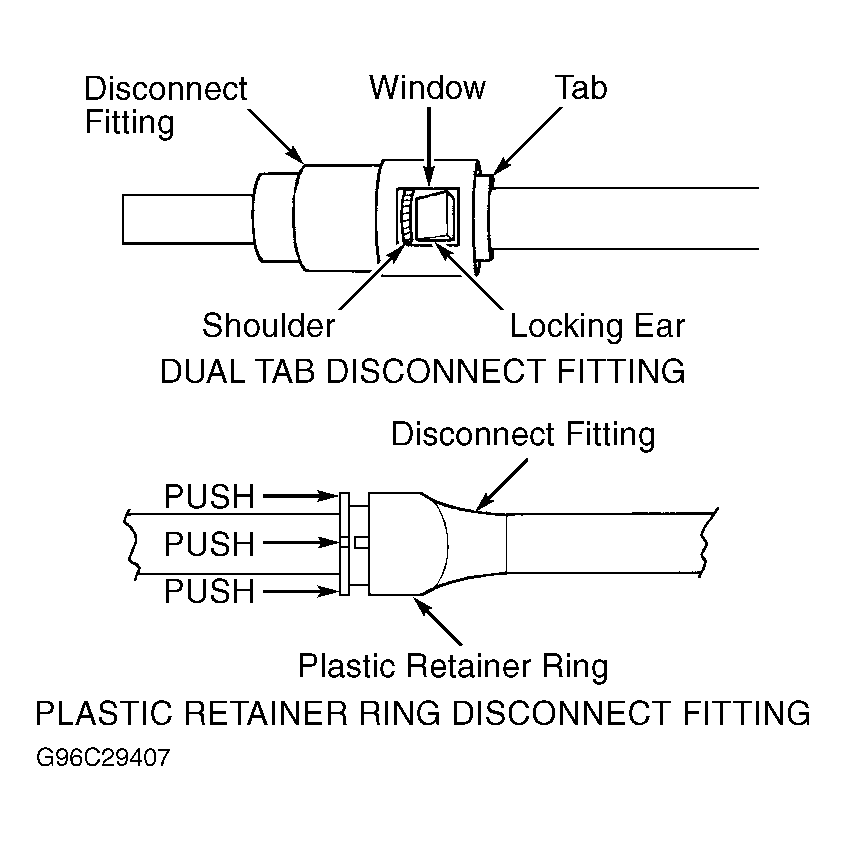

  2. Pull on fuel line and disconnect fitting to ensure components are properly locked together. See Figure and Figure . Reconnect negative battery cable.
  3. Check for fuel leaks by starting engine or by pressurizing fuel system. Fuel system may be pressurized by using scan tool manufacturer's instructions and scan tool connected to data link connector to perform ASD FUEL SYSTEM TEST. When performing ASD FUEL SYSTEM TEST, ASD relay and fuel pump relay remain energized for 7 minutes unless test is stopped or ignition switch is turned to OFF position.
