Throttle Position Sensor: Removal
WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

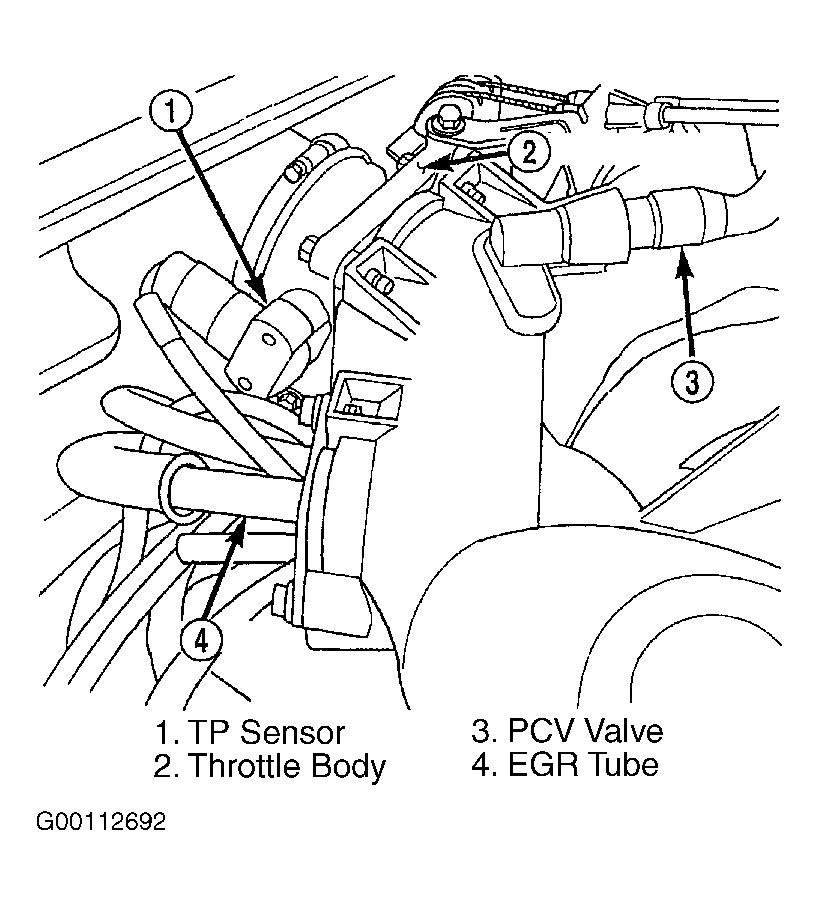

Disconnect negative cable battery at remote battery terminal on passenger's side strut tower. On 3.5L, remove necessary air intake plenum components for access to throttle body. On all models, disconnect TP sensor connector. See Figure or Figure
. Remove retaining screws and TP sensor.
