Removal & Installation
WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

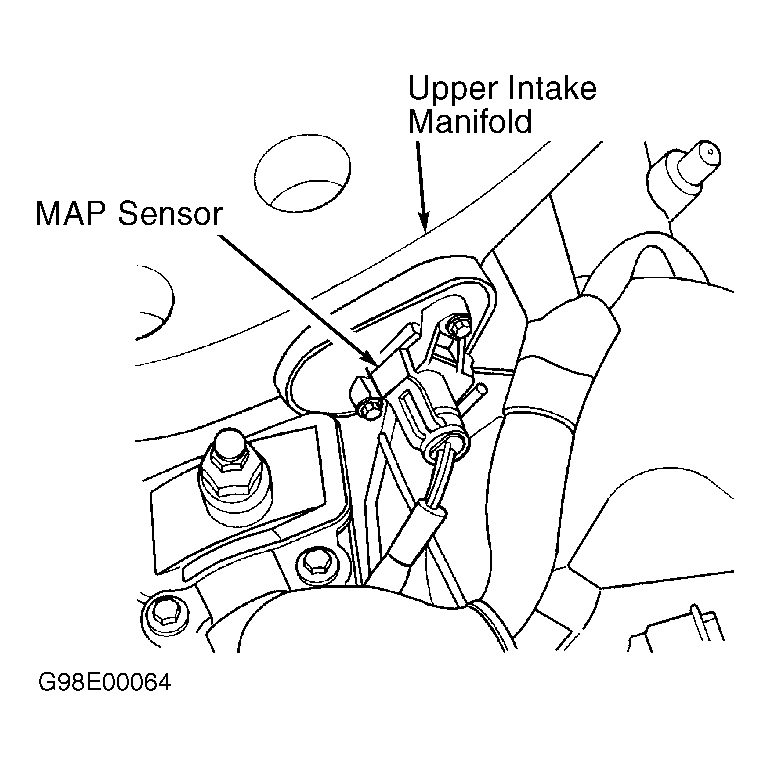

Locate Manifold Absolute Pressure (MAP) sensor. See Fig 1 or Fig 2 . Disconnect MAP sensor harness connector. Remove bolts and MAP sensor. To install, reverse removal procedure. Tighten MAP sensor bolts to specification. See TORQUE SPECIFICATIONS .
