Natural Vacuum Leak Detection Assembly: Removal

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. NVLD is located on EVAP canister above fuel tank. See Figure. Disconnect negative battery cable at remote battery terminal on passenger's side strut tower. Remove fuel tank. See FUEL TANK  under FUEL SYSTEMS.

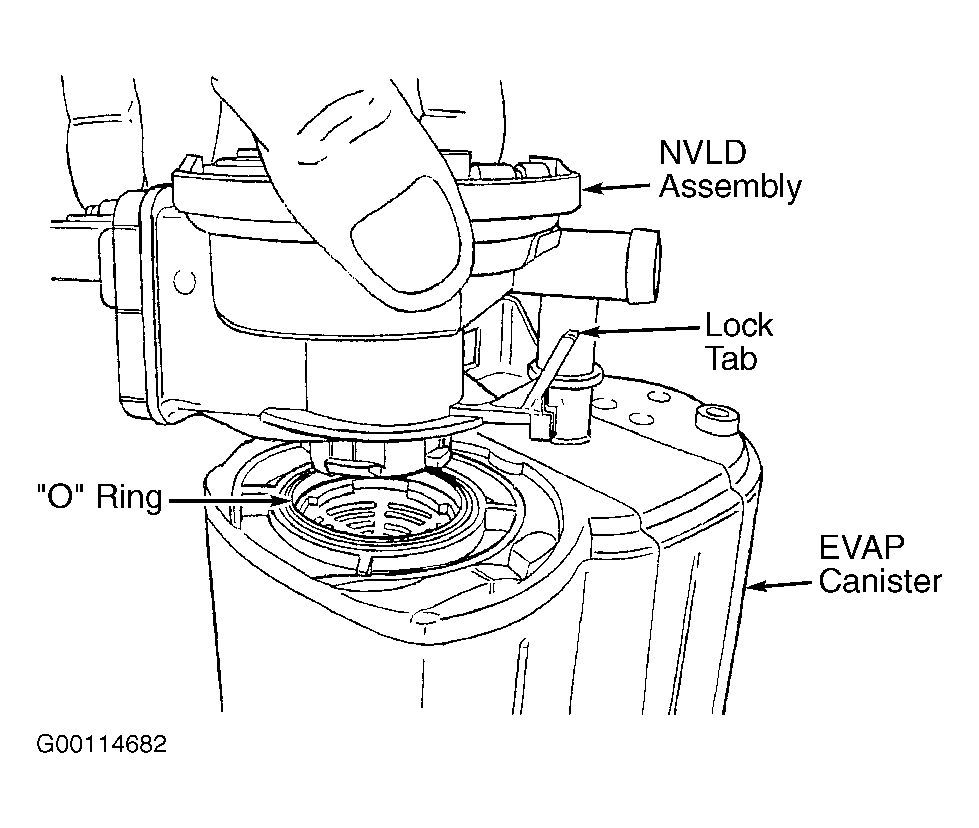

  2. Disconnect NVLD harness connector. Disconnect hoses from NVLD assembly. Lift lock tab on NVLD assembly and twist the assembly counterclockwise. Pull up to remove NVLD assembly from EVAP canister. See Figure. Remove "O" ring from EVAP canister.
