Vacuum Hose Diagram(S)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Dodge Viper, 2002 Dodge Stratus, 2002 Dodge Neon, 2002 Dodge Intrepid, and 2002 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Always refer to Emission Control label in engine compartment before attempting service. If manual and label differ, always use emission label specifications.

NOTE: See Fig 1-Fig 10 for vacuum diagrams. Vacuum diagrams for applications not shown are not available from manufacturer.

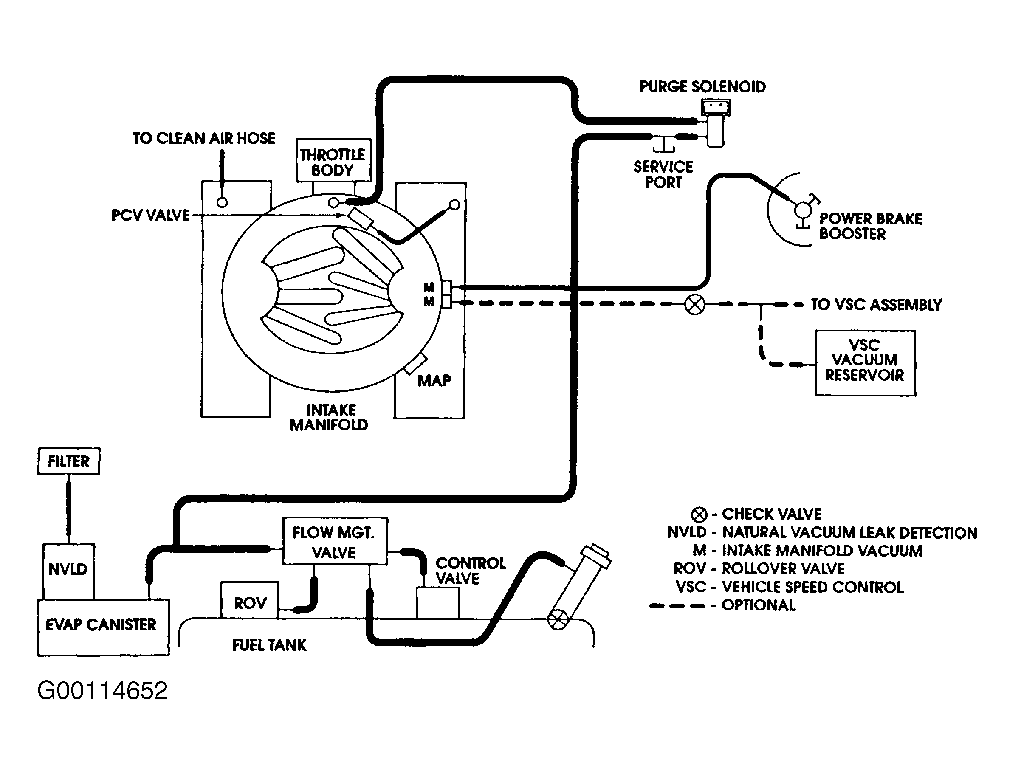

Fig 1: Vacuum Diagram (Concorde & Intrepid - 2.7L)

G00114652

Courtesy of DAIMLERCHRYSLER CORP.

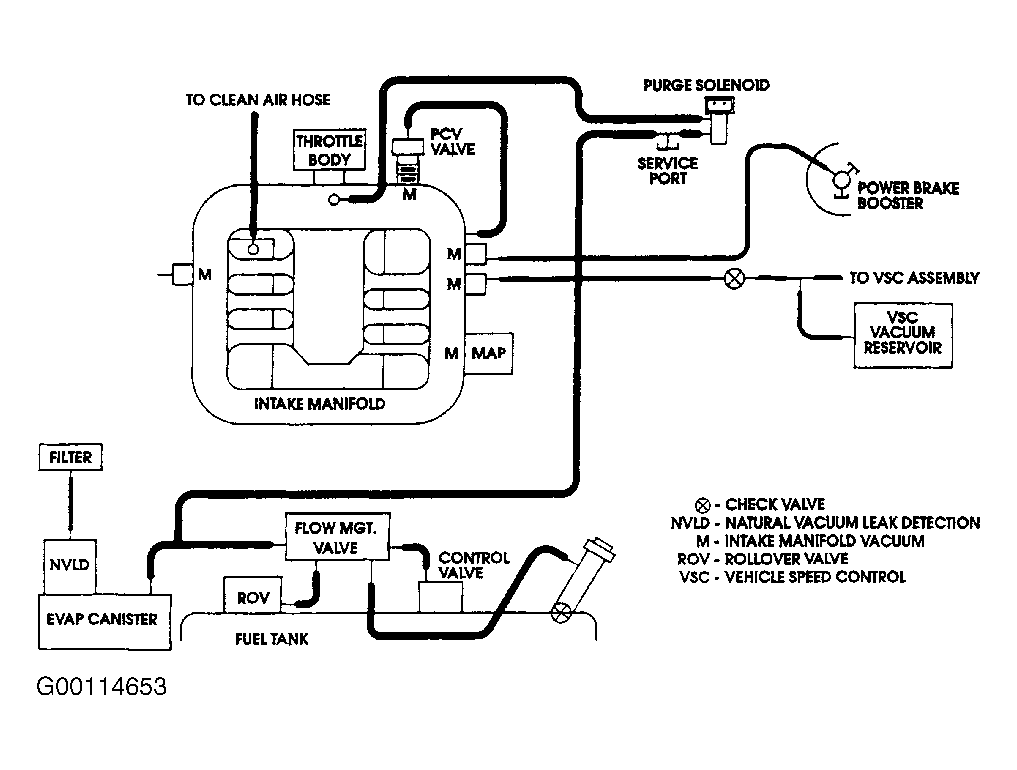

Fig 2: Vacuum Diagram (Concorde, Intrepid & 300M - 3.5L)

G00114653

Courtesy of DAIMLERCHRYSLER CORP.

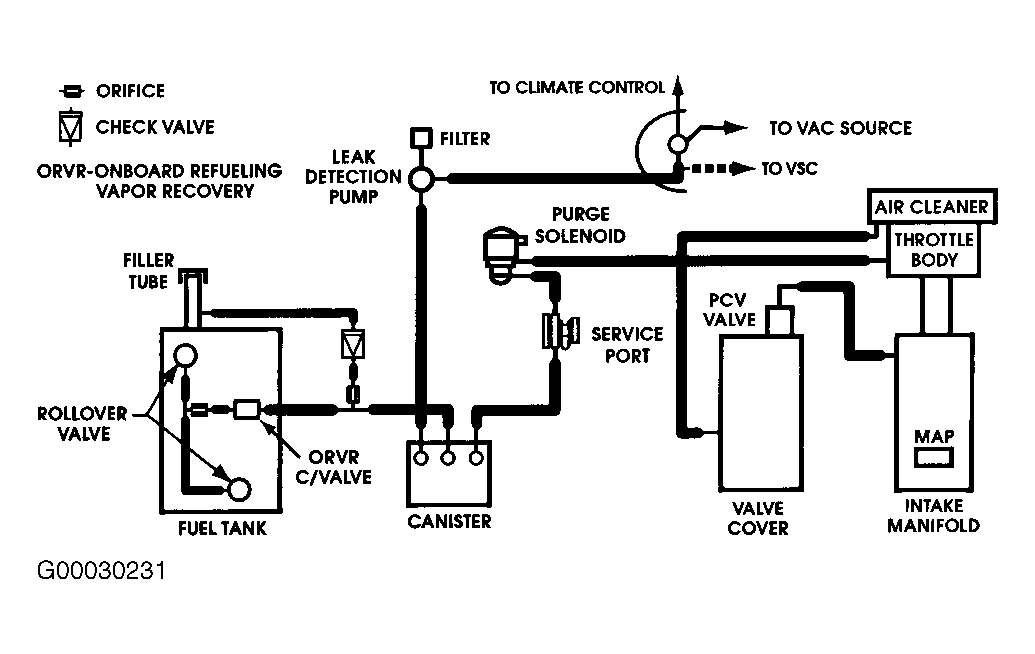

Fig 3: Vacuum Diagram (Neon - 2.0L)

G00030231

Courtesy of DAIMLERCHRYSLER CORPORATION

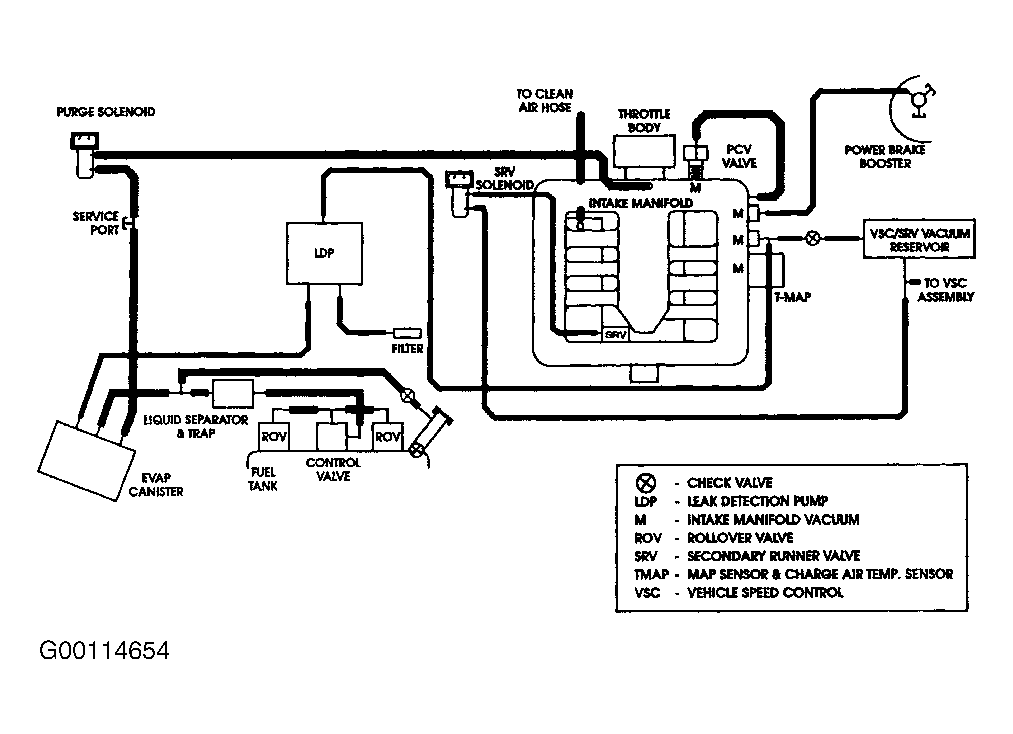

Fig 4: Vacuum Diagram (Prowler - 3.5L)

G00114654

Courtesy of DAIMLERCHRYSLER CORP.

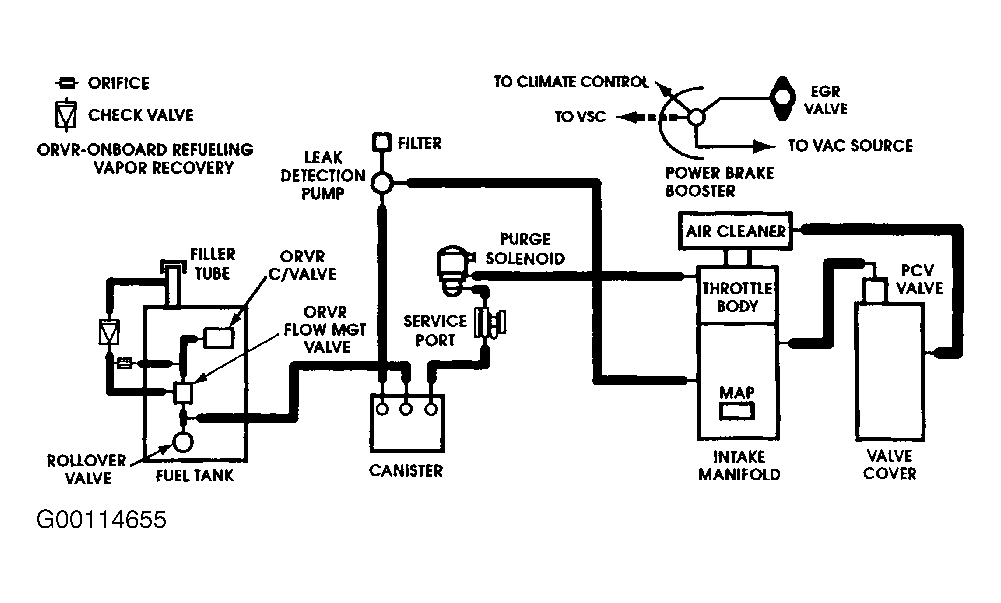

Fig 5: Vacuum Diagram (PT Cruiser - 2.4L)

G00114655

Courtesy of DAIMLERCHRYSLER CORPORATION

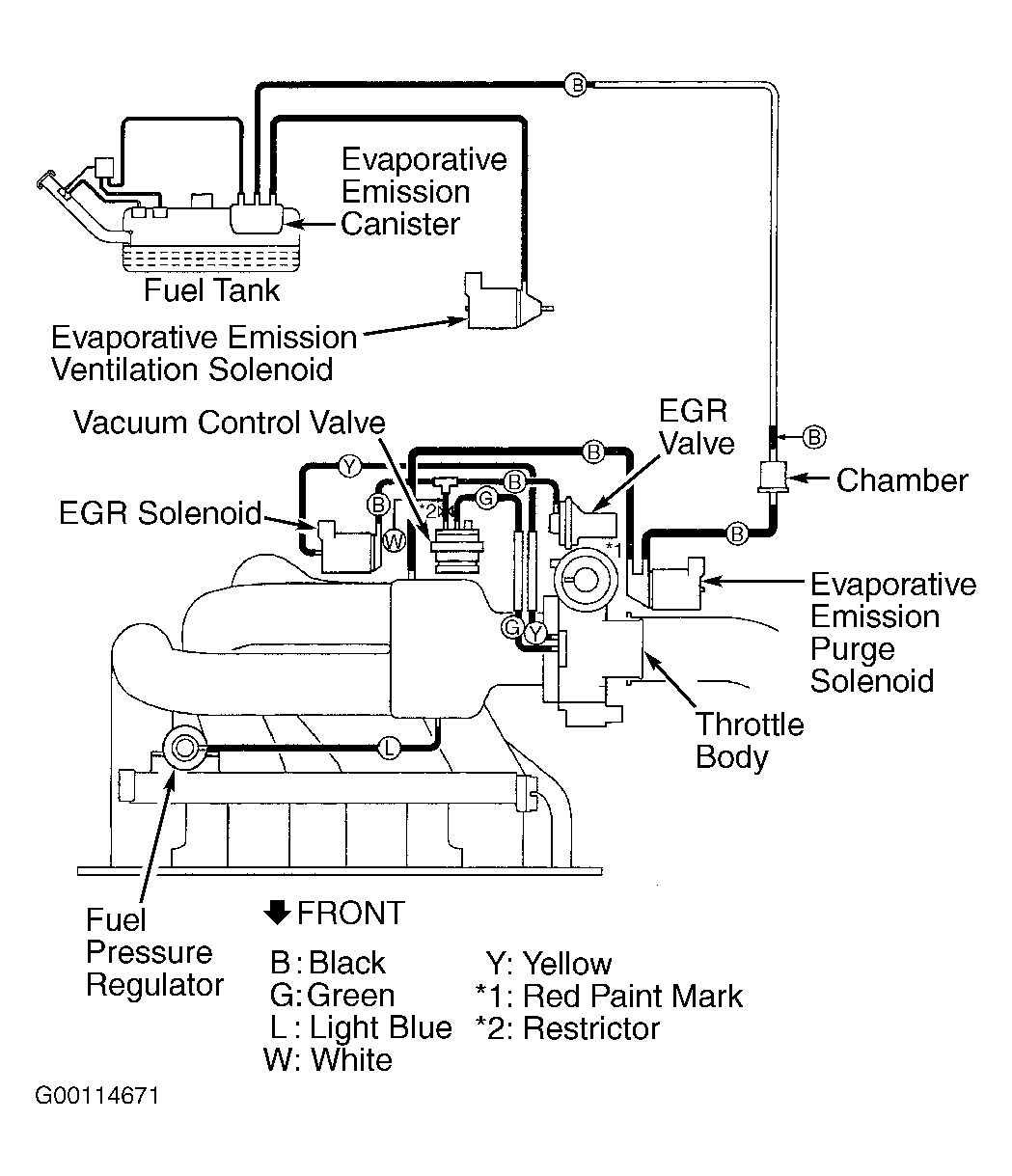

Fig 6: Vacuum Diagram (Sebring Coupe & Stratus Coupe - 2.4L)

G00114671

Courtesy of DAIMLERCHRYSLER CORPORATION

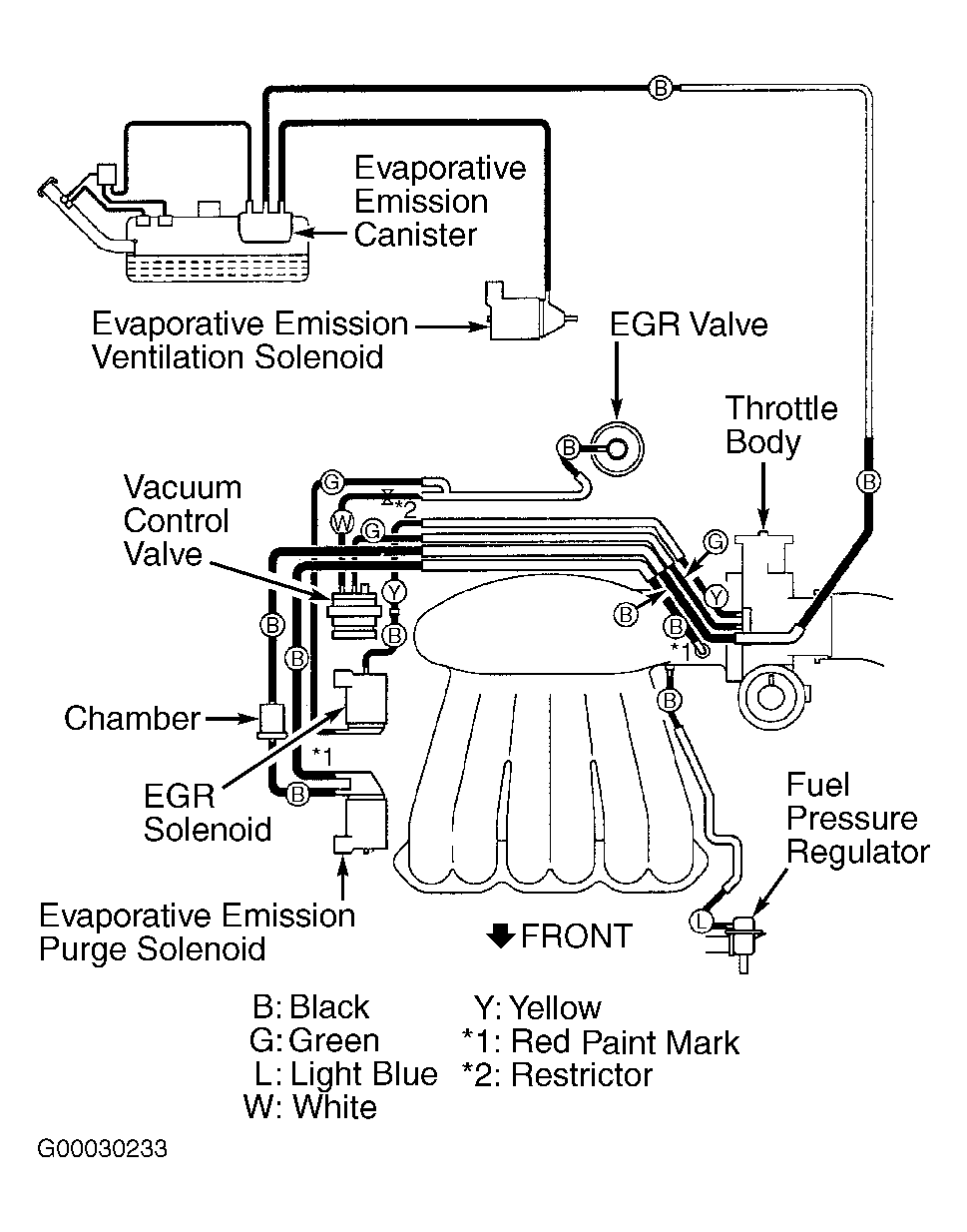

Fig 7: Vacuum Diagram (Sebring Coupe & Stratus Coupe - 3.0L)

G00030233

Courtesy of DAIMLERCHRYSLER CORPORATION

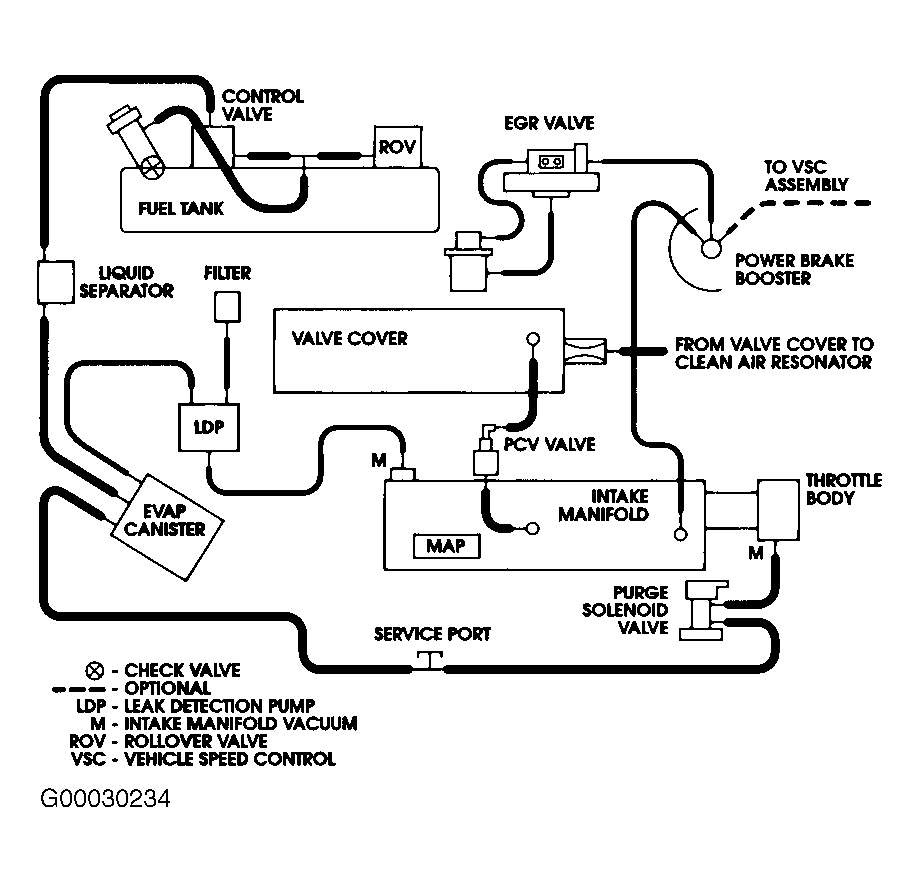

Fig 8: Vacuum Diagram (Sebring Convertible, Sebring Sedan & Stratus Sedan - 2.4L)

G00030234

Courtesy of DAIMLERCHRYSLER CORPORATION

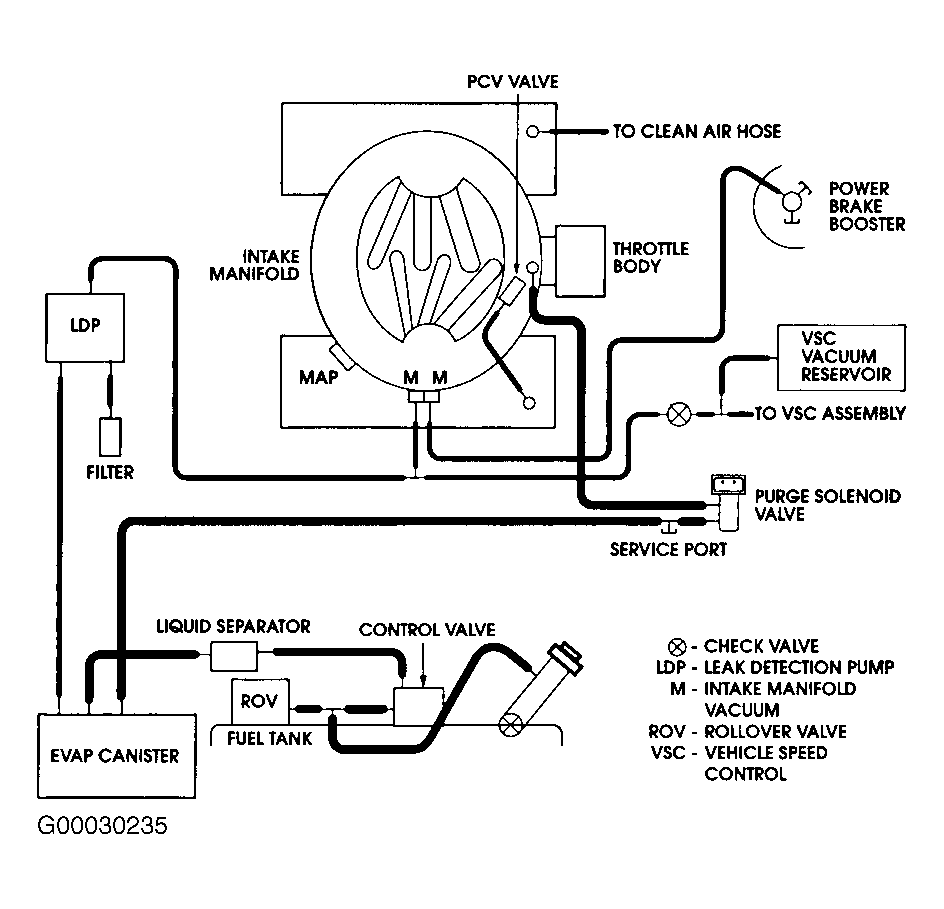

Fig 9: Vacuum Diagram (Sebring Convertible, Sebring Sedan & Stratus Sedan - 2.7L)

G00030235

Courtesy of DAIMLERCHRYSLER CORPORATION

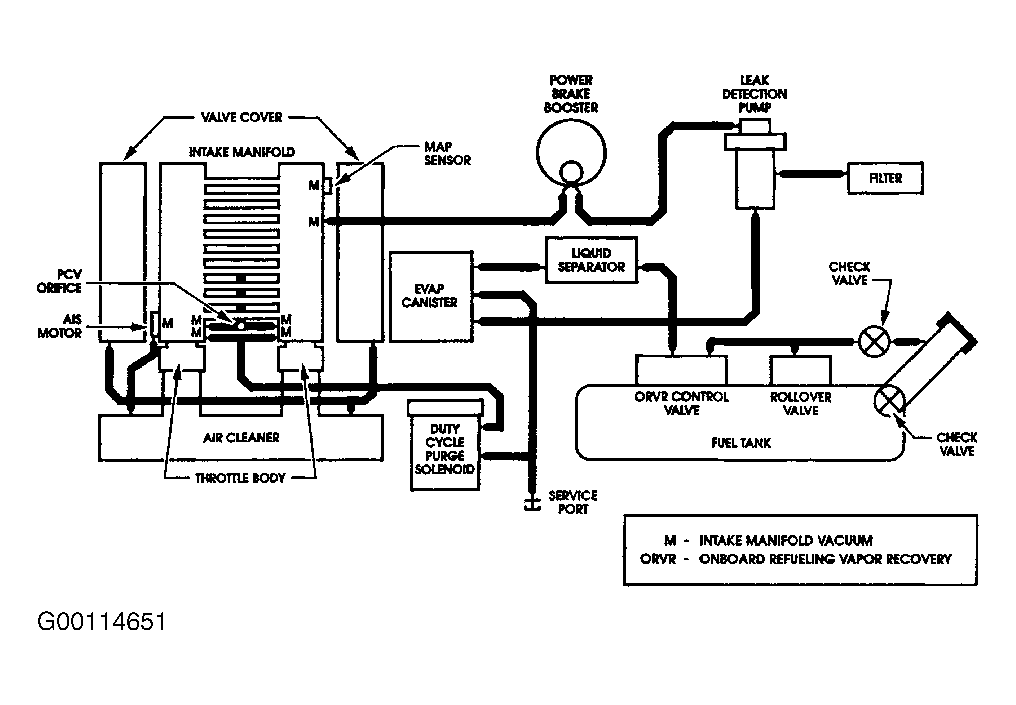

Fig 10: Vacuum Diagram (Viper - 8.0L)

G00114651

Courtesy of DAIMLERCHRYSLER CORP.
