A/C Pressure Transducer: Removal

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: A slight release of pressure trapped in the fitting may be experienced. It is not necessary to discharge the refrigerant system.

Open hood and disconnect the negative battery cable remote terminal from the remote battery post. See Fig 1 .
Disconnect the wire harness connector from the A/C pressure transducer.
Remove the transducer with a counter-clockwise rotation using a 14 mm open-end wrench.

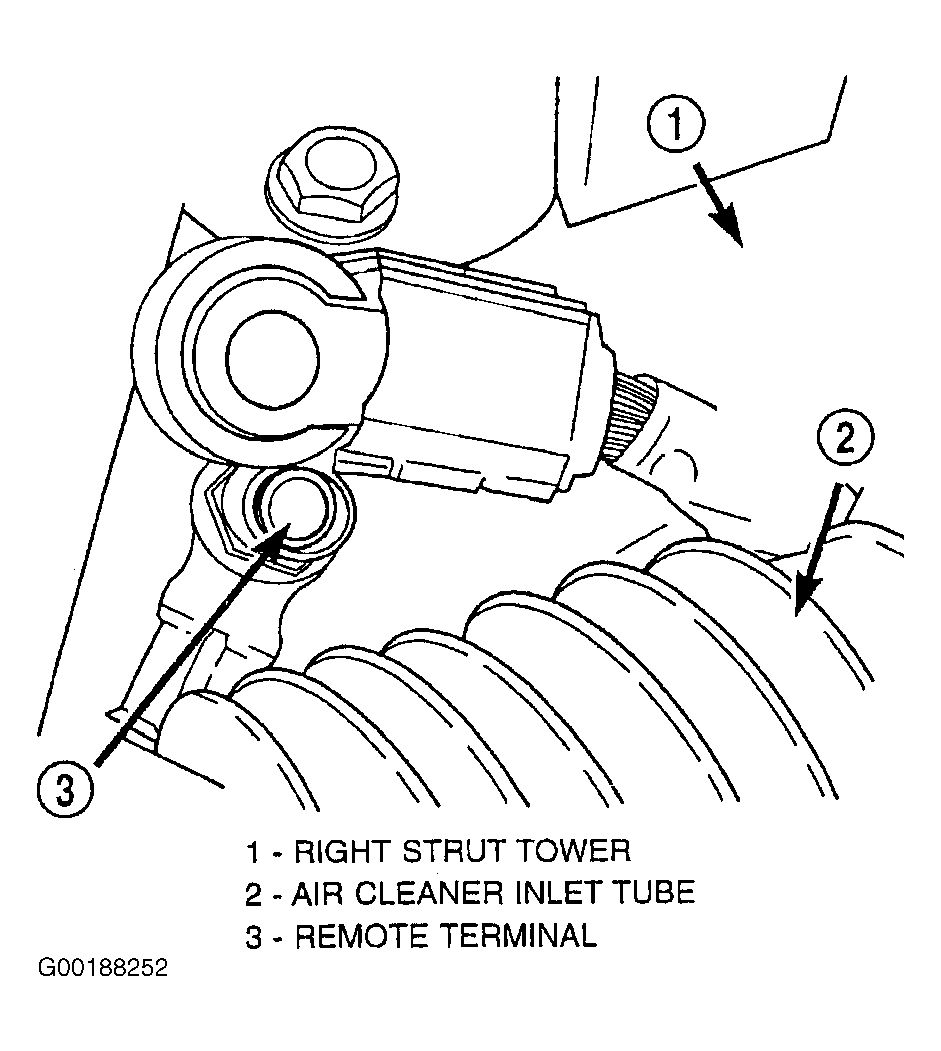

Fig 1: Removing Negative Battery Cable Remote Terminal

Courtesy of CHRYSLER CORP.
