Diagnostic Procedure

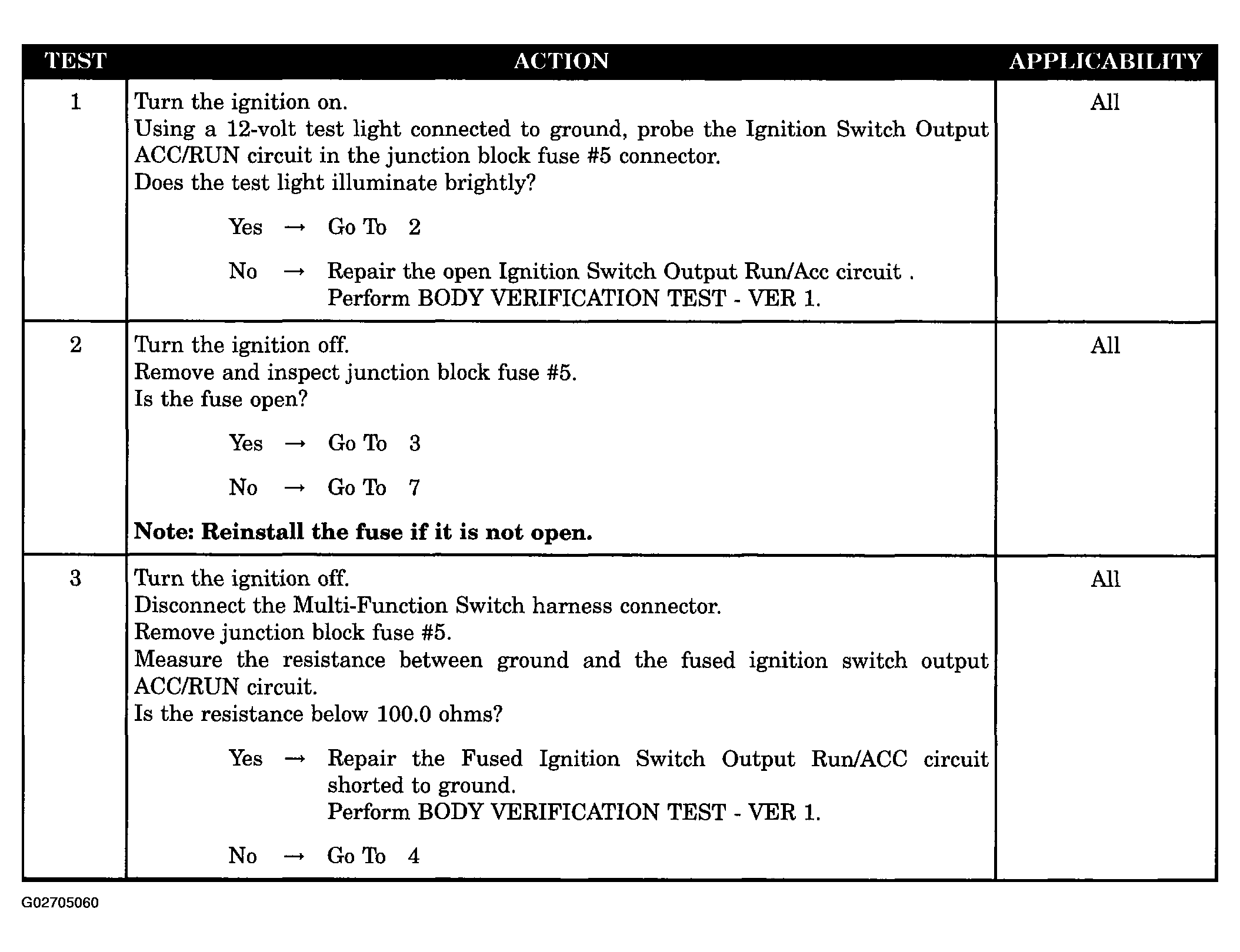

Fig 1: Washer Inoperative - Diagnostic Procedure (1 Of 3)
G02705060Courtesy of DAIMLERCHRYSLER CORP.

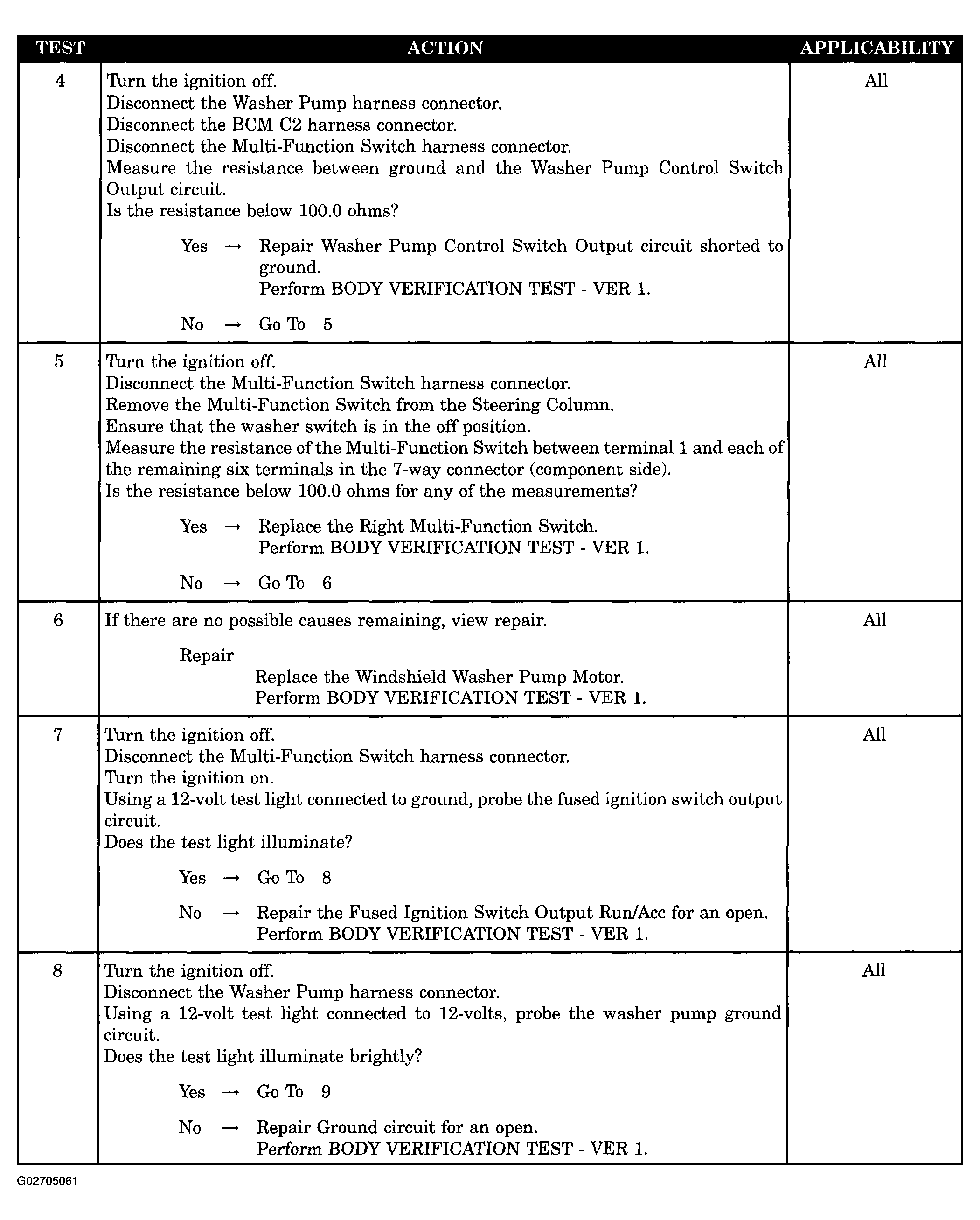

Fig 2: Washer Inoperative - Diagnostic Procedure (2 Of 3)
G02705061Courtesy of DAIMLERCHRYSLER CORP.

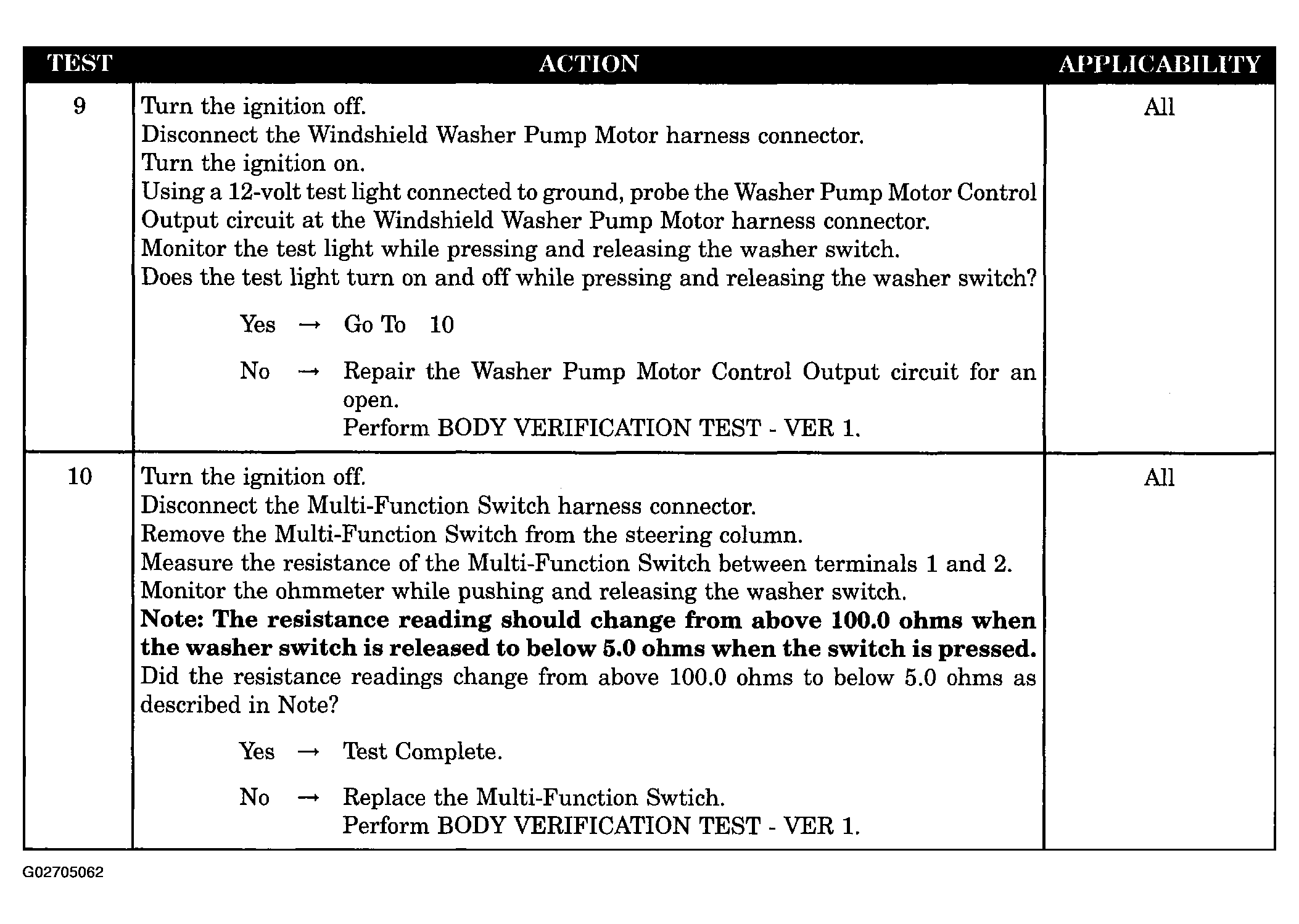

Fig 3: Washer Inoperative - Diagnostic Procedure (3 Of 3)
G02705062Courtesy of DAIMLERCHRYSLER CORP.
