Symptom: *HEADLAMP WASHERS NOT OPERATING PROPERLY
>>
Diagnostic Procedure
Diagnostic Procedure

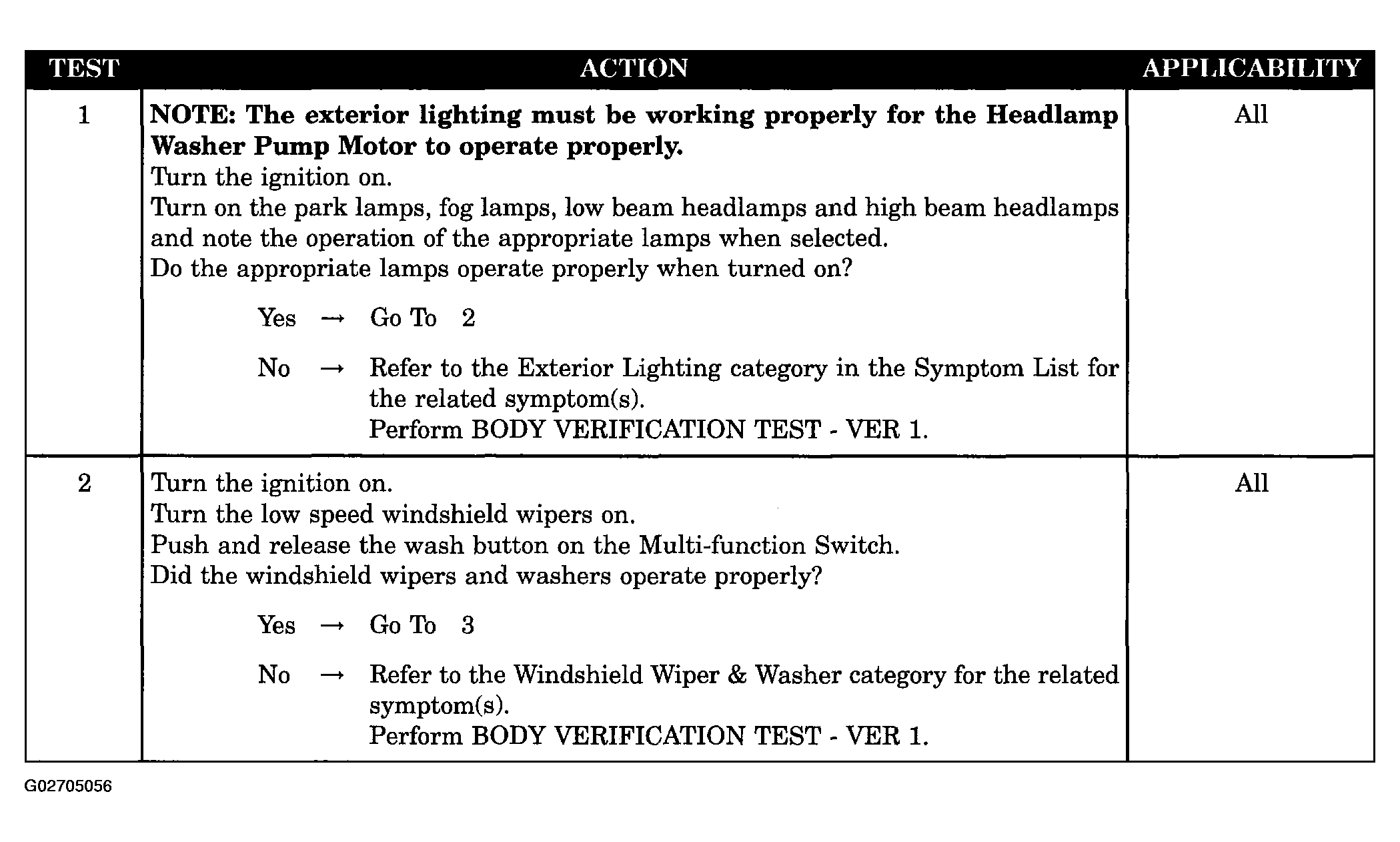

Fig 1: Headlamp Washers Not Operating Properly - Diagnostic Procedure (1 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

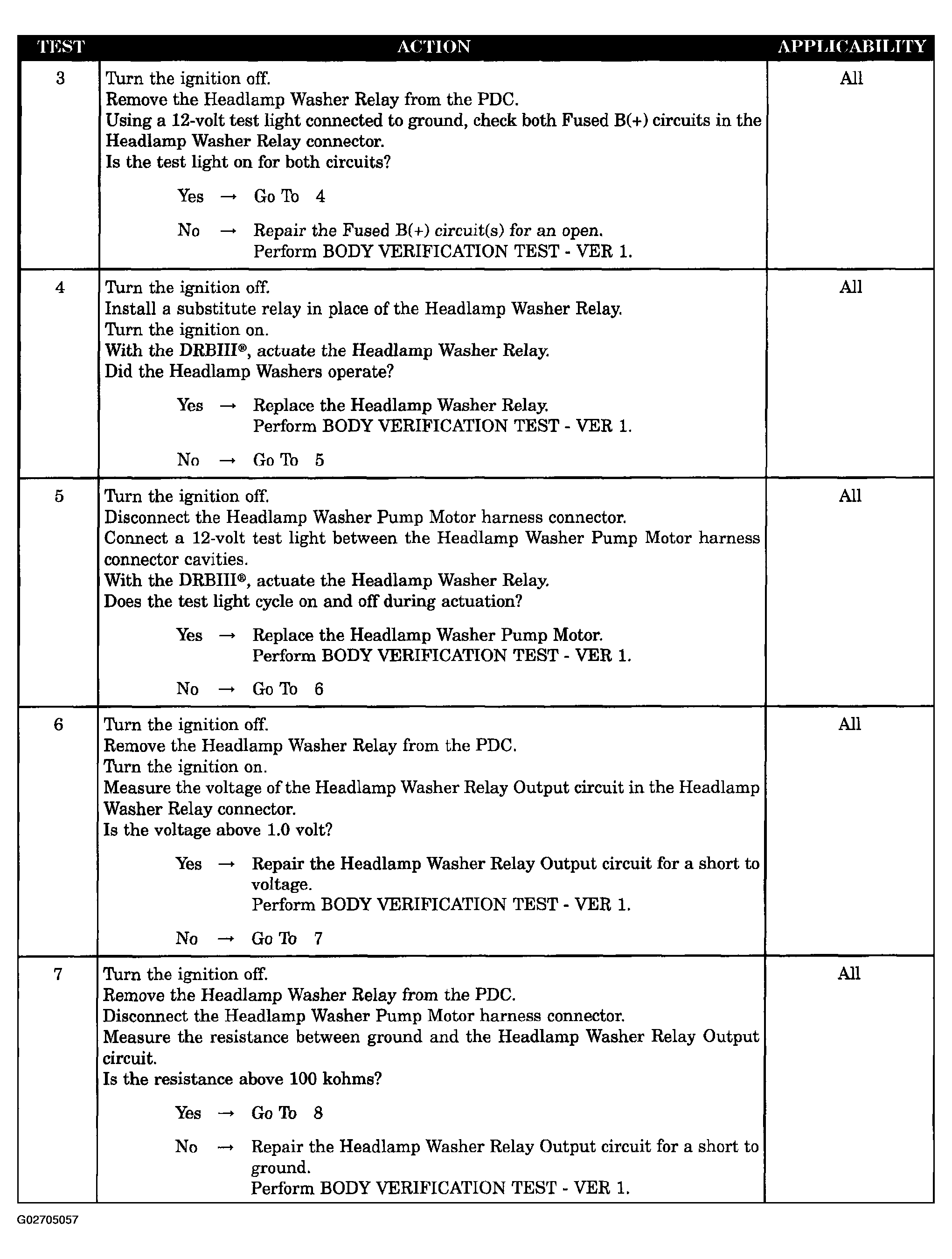

Fig 2: Headlamp Washers Not Operating Properly - Diagnostic Procedure (2 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

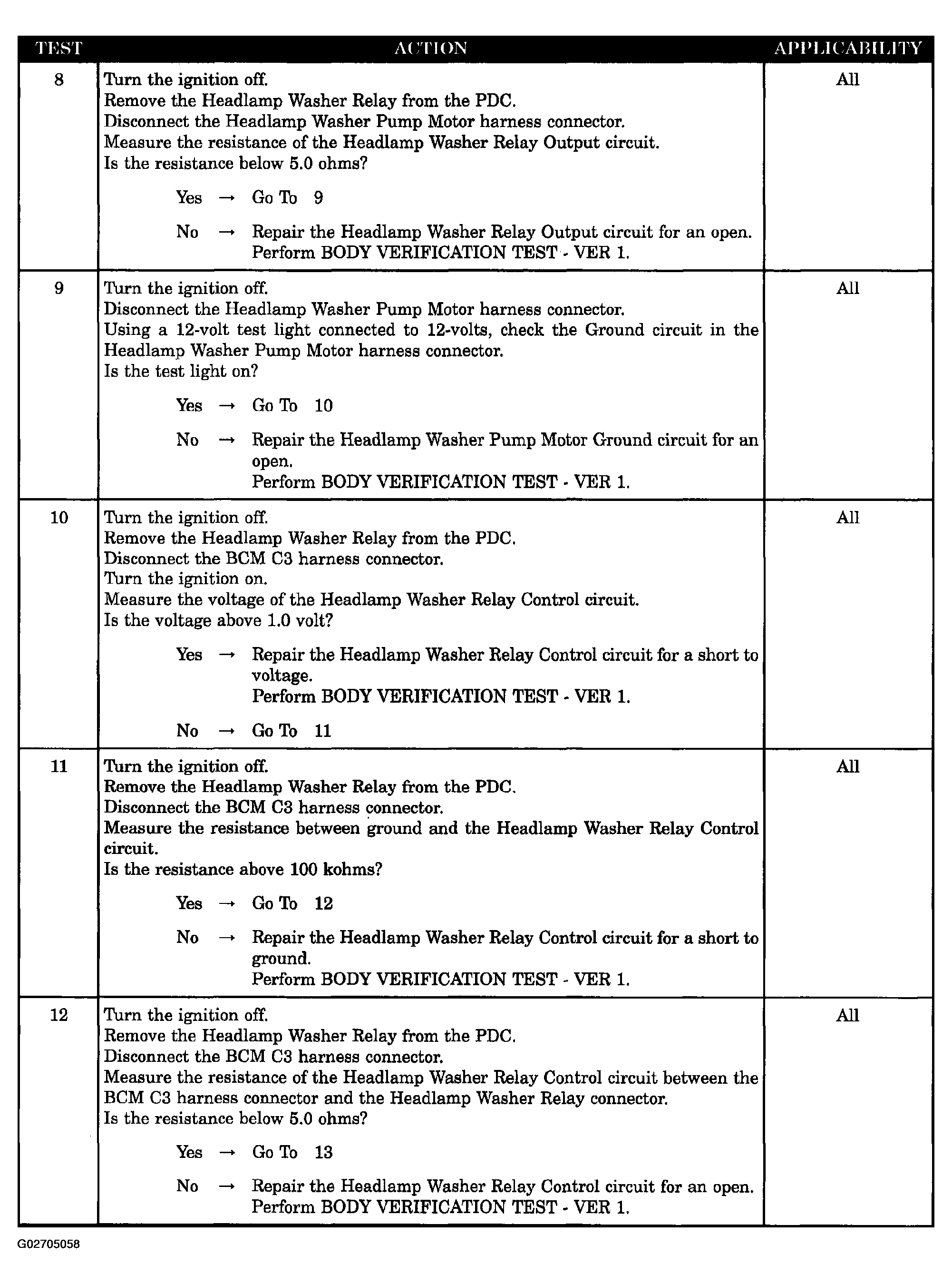

Fig 3: Headlamp Washers Not Operating Properly - Diagnostic Procedure (3 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

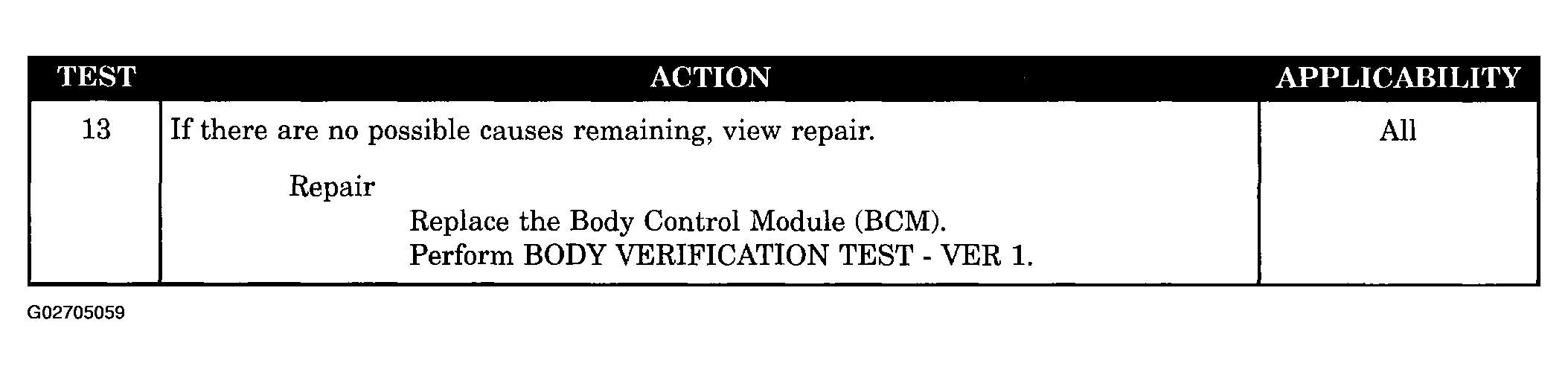

Fig 4: Headlamp Washers Not Operating Properly - Diagnostic Procedure (4 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
