Diagnostic Procedure

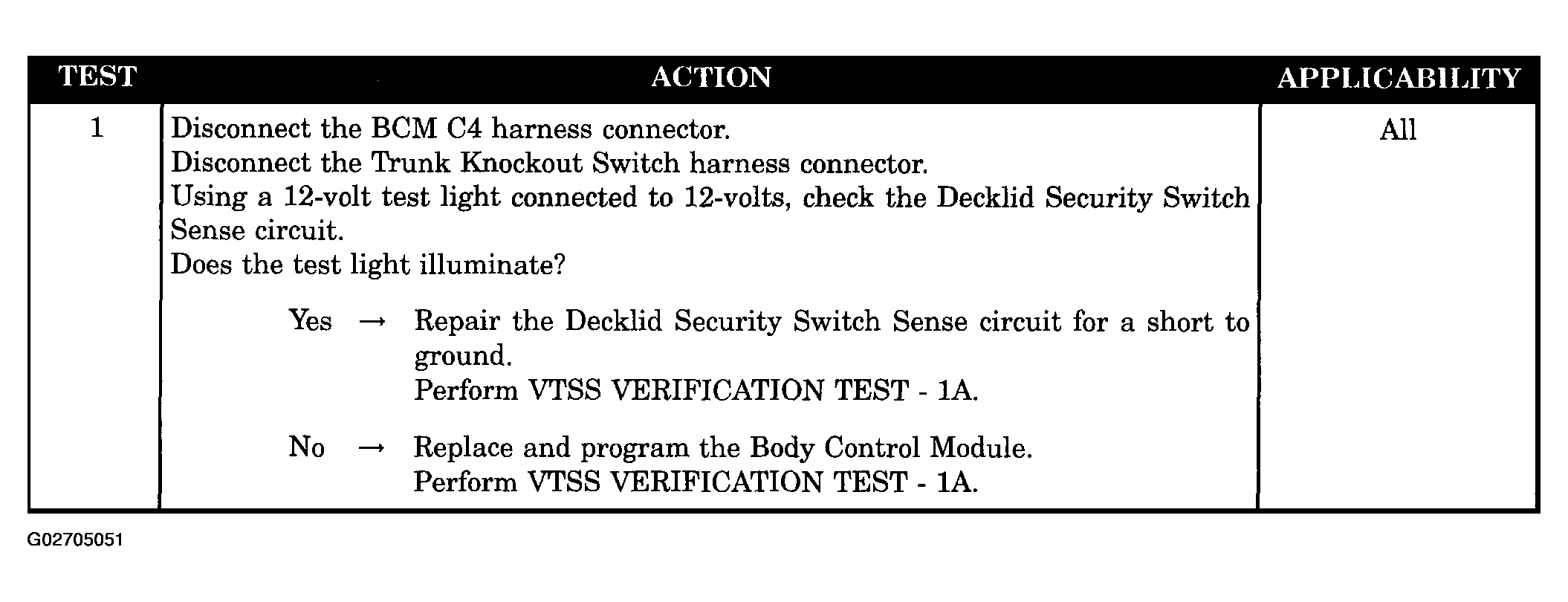

Fig 1: VTSS Does Not Trip With Trunk Knockout Switch - Diagnostic Procedure
G02705051Courtesy of DAIMLERCHRYSLER CORP.
