Diagnostic Procedure

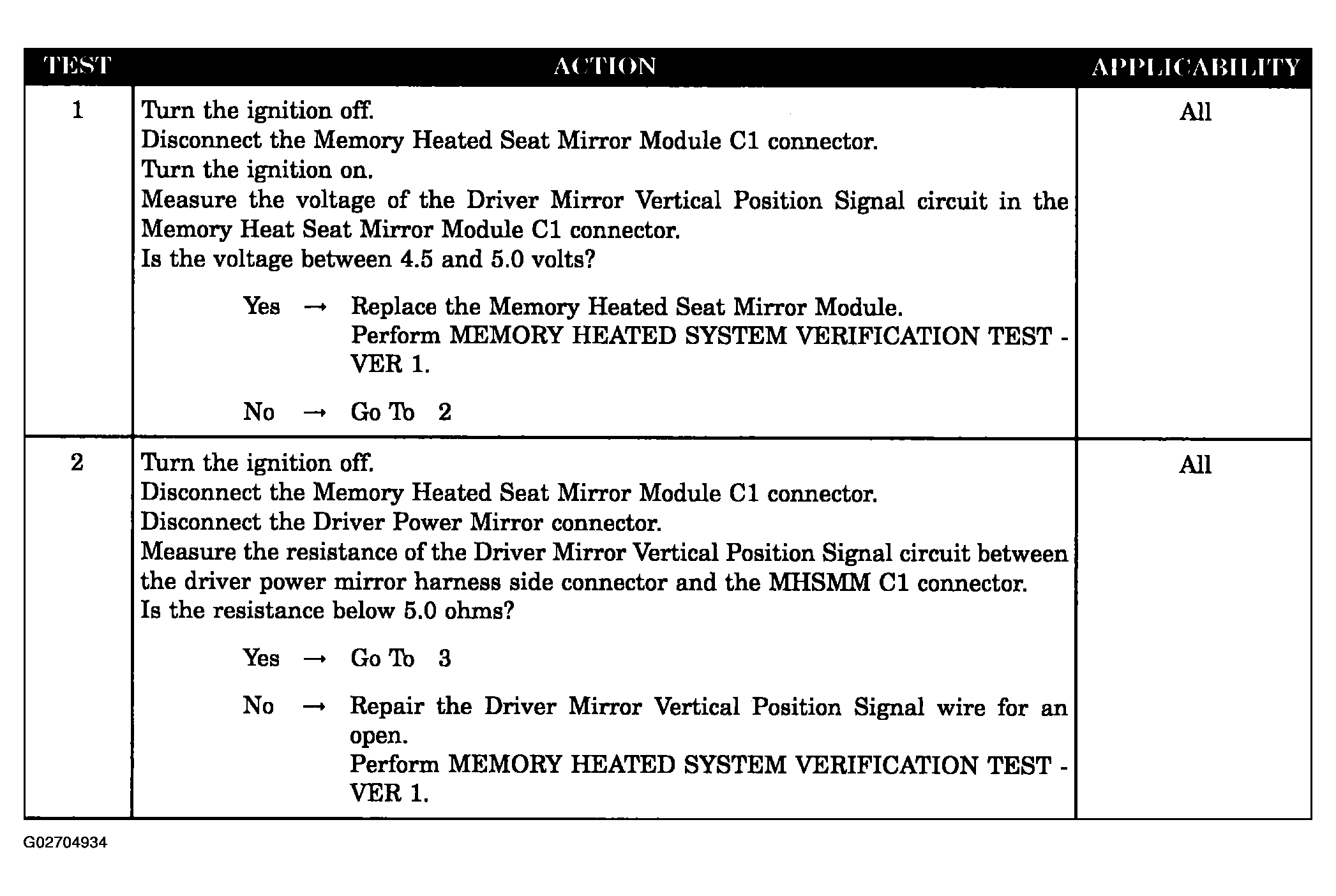

Fig 1: Driver Mirror Vertical Sensor Out Of Range Low - Diagnostic Procedure (1 Of 2)
G02704934Courtesy of DAIMLERCHRYSLER CORP.

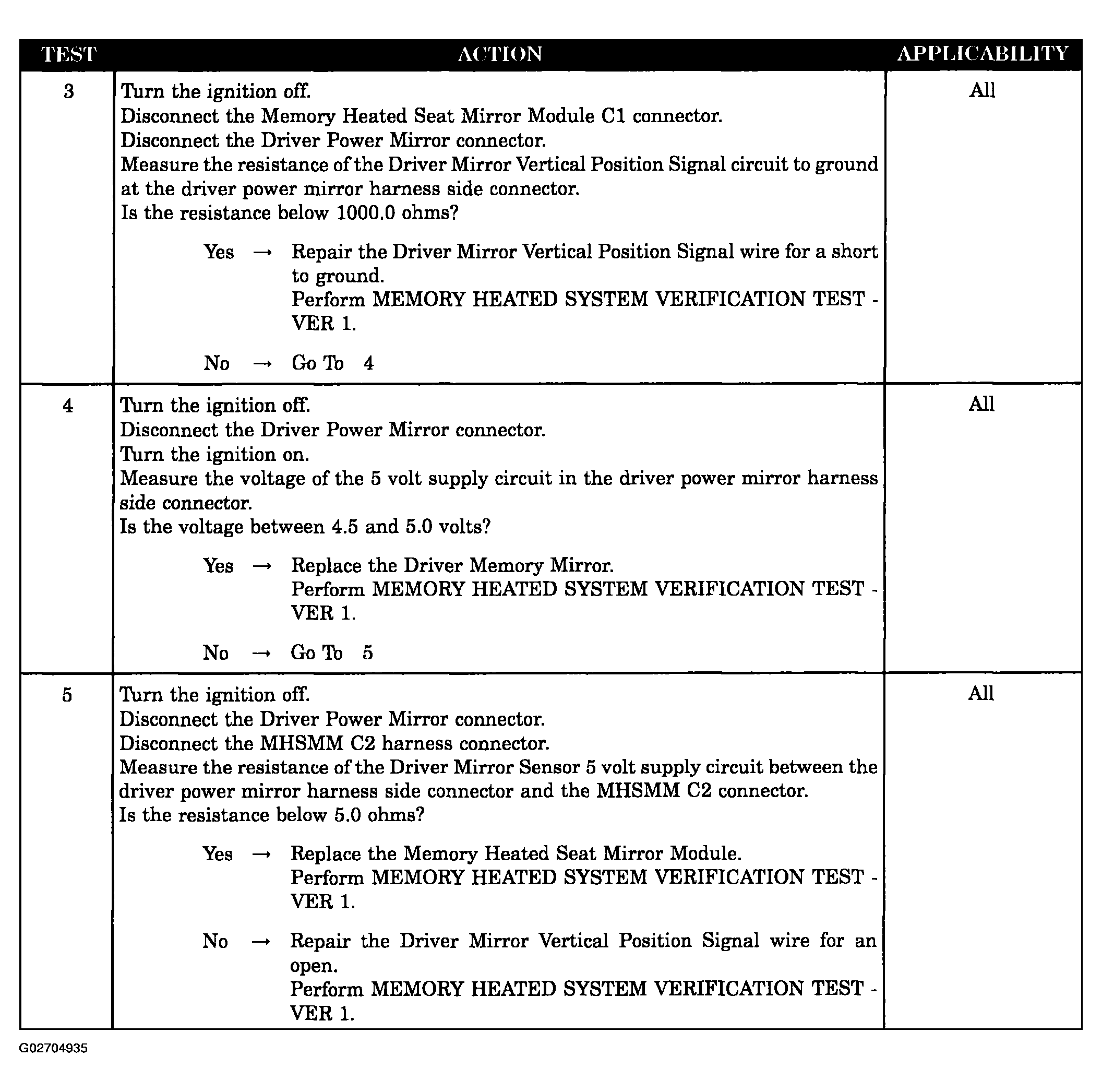

Fig 2: Driver Mirror Vertical Sensor Out Of Range Low - Diagnostic Procedure (2 Of 2)
G02704935Courtesy of DAIMLERCHRYSLER CORP.
