Home >> Chrysler >> 2003 >> 300M Pro-Am Edition >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Memory Seat - Symptoms >> Symptom: *MEMORY SWITCH INOPERATIVE >> Diagnostic Procedure

Diagnostic Procedure

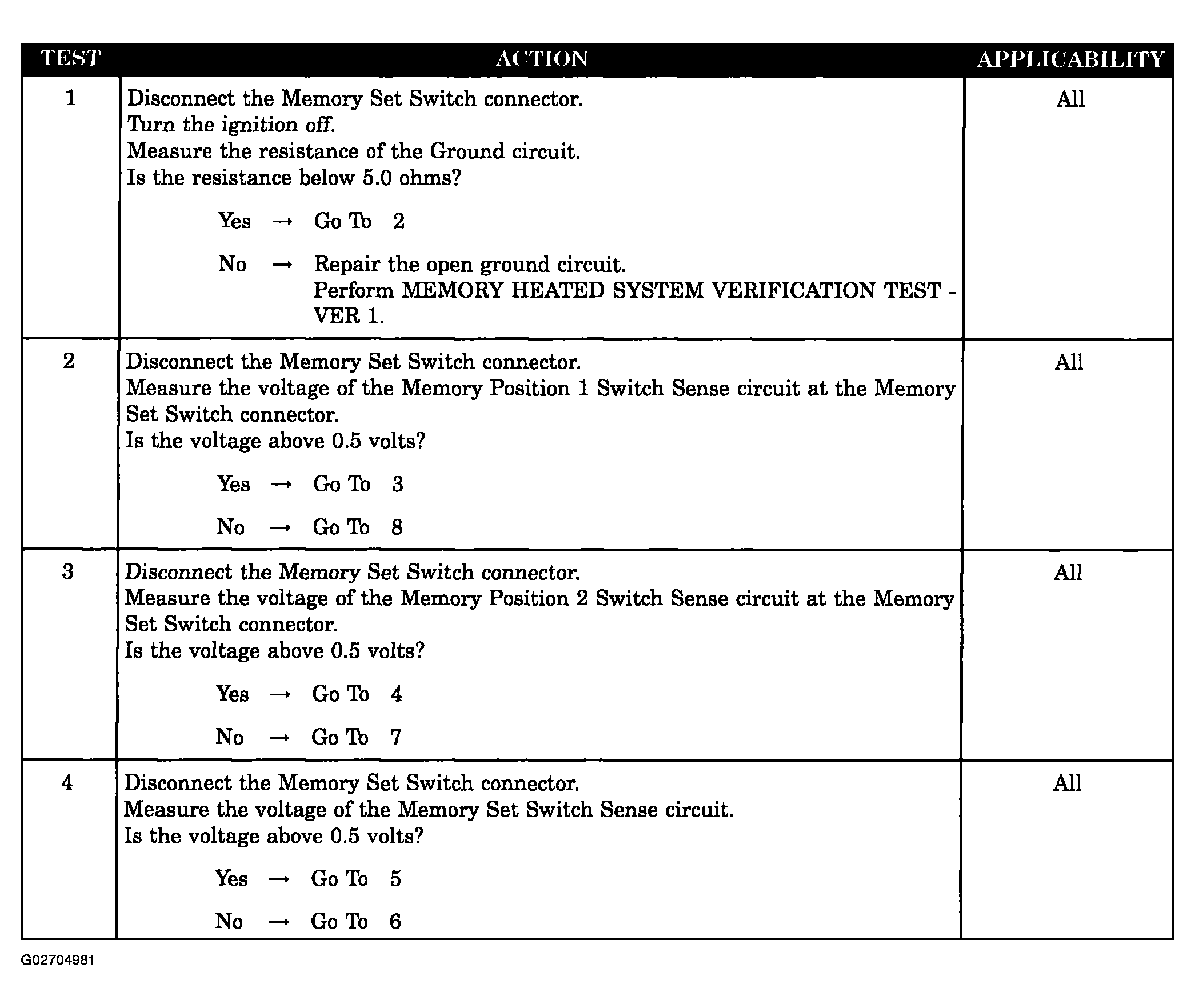

Fig 1: Memory Switch Inoperative - Diagnostic Procedure (1 Of 2)
G02704981Courtesy of DAIMLERCHRYSLER CORP.

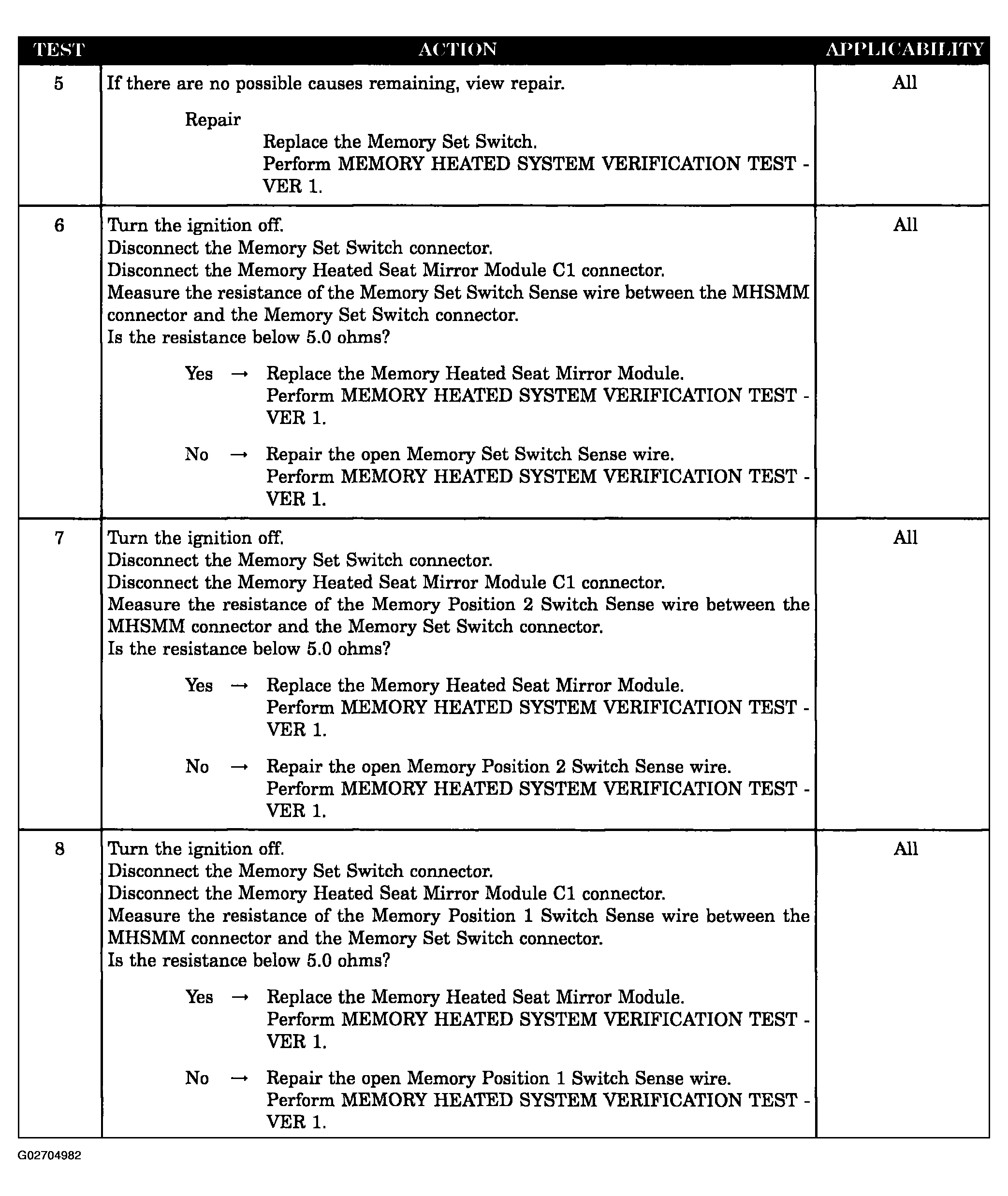

Fig 2: Memory Switch Inoperative - Diagnostic Procedure (2 Of 2)
G02704982Courtesy of DAIMLERCHRYSLER CORP.
